Spare parts > ST S p A > Lawn Tractor > HTE 63 HTE 63 (2007) > Electrical System
Back to

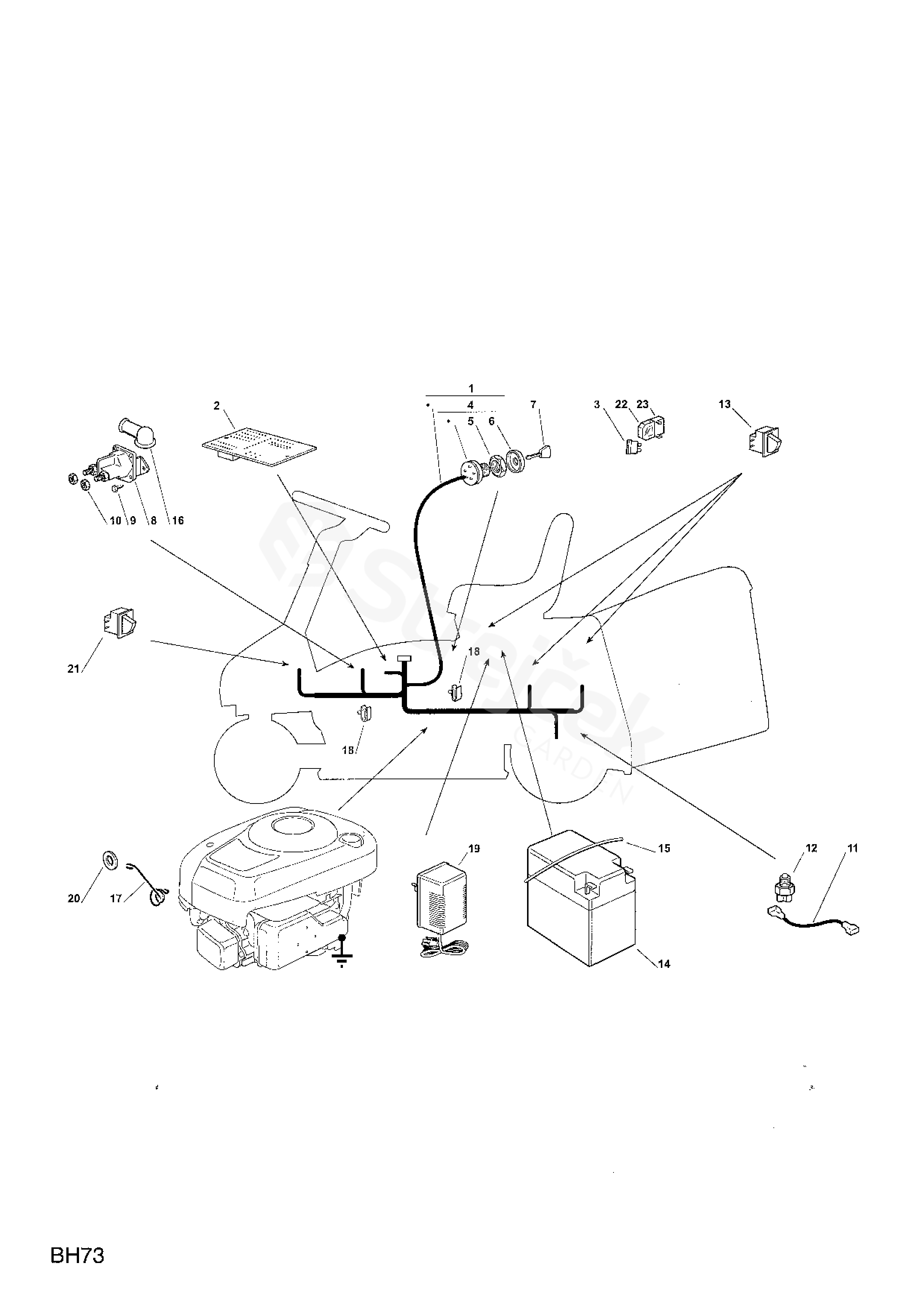

Electrical System
HTE 63 HTE 63 (2007)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For HTE 63 (2007)
1 Cables Ass.Y
Inkl. pos 4 _ HTE63 		184040123/1
2 Electronic Card
HTE63 		127722354/0
3 Fuse 10 A
HTE63 		133340040/0
4 Starting Switch
Inkl. pos 5 - 6 _ HTE63 		118450065/1
5 Screwed Ring
HTE63 		118400861/0
6 Screwed Ring Protection
HTE63 		118565351/0
7 Starting Key
HTE63 		118210016/1
8 Starter Relay
HTE63 		118736111/0
9 Screw
HTE63 		112735110/0
10 Nut
HTE63 		112360352/0
11 Connecting Cable
HTE63 		127065060/0
12 Micro Lever El63
HTE63 		119700046/0
13 Microswitch
HTE63 		119410606/0
14 Battery
HTE63 		118120004/0
15 Spring
HTE63 		127430572/0
16 Protection
HTE63 		118564861/1
17 Spring
HTE63 		127430557/0
18 Fairlead
HTE63 		133320506/0
19 Battery Charger Kit
HTE63 		182180051/0
20 Washer
HTE63 		112523020/0
21 Microswitch
HTE63 		119410612/0
22 Cover
HTE63 		133215000/0
23 Fuse carrier
HTE63 		133500007/0
