Spare parts
>
Husqvarna
>
ICE AUGERS
>
9527 SBEB 9527 SBEB, 96193001200, 961930012, 2005-12
>
CHASSIS, ENGINE & PULLEYS
Back to
9527 SBEB
9527 SBEB, 96193001200, 961930012, 2005-12
CHASSIS, ENGINE & PULLEYS
9527 SBEB
9527 SBEB, 96193001200, 961930012, 2005-12

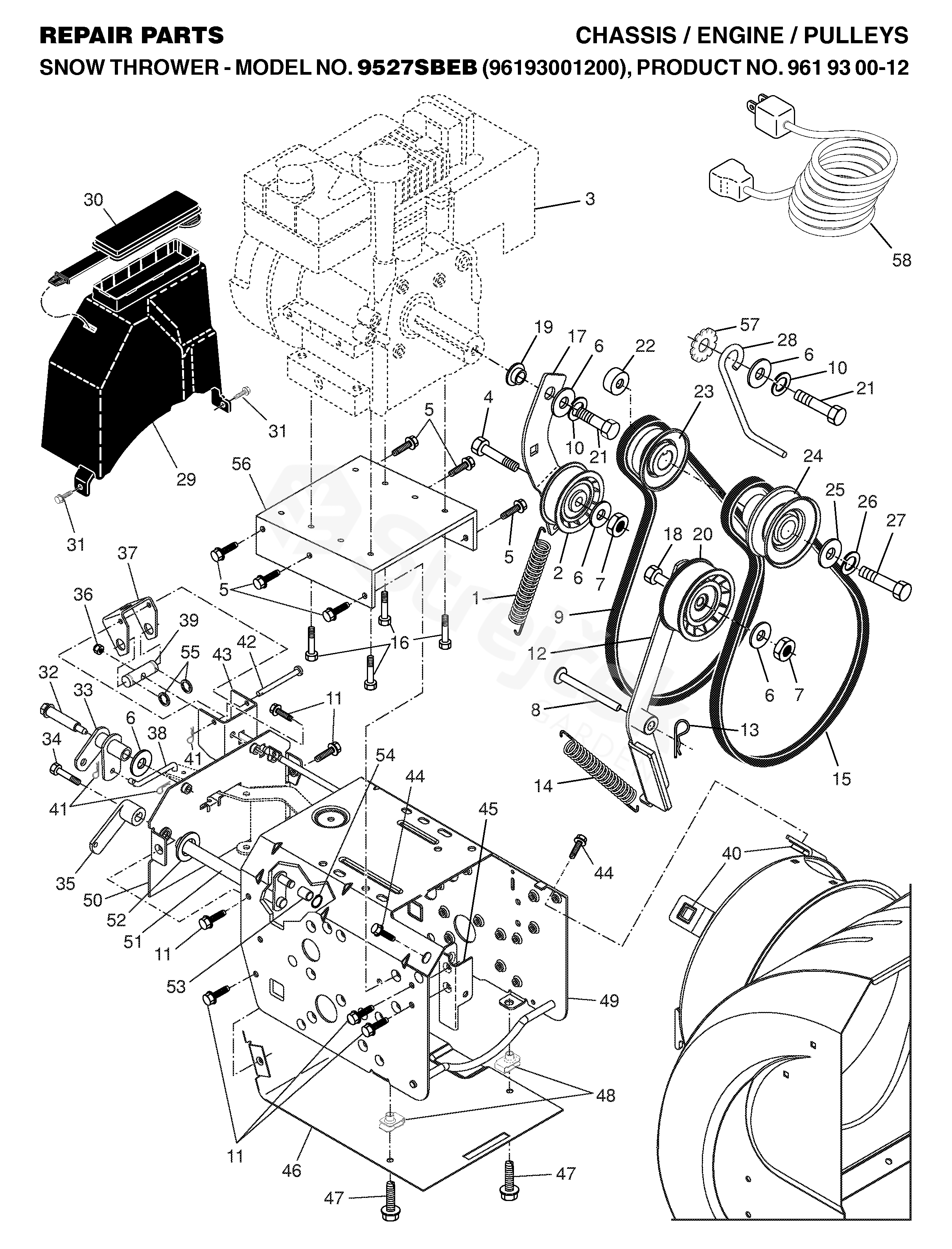

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
9527 SBEB, 96193001200, 961930012, 2005-12
1
SPRING
532181044
2
PULLEY
532180522
4
BOLT
874780520
5
SCREW
532150078
6
PODLOŽKA
532059289
7
MATICE
873930500
8
PEN
532175330
9
V-BELT
532179092
10
PODLOŽKA
810040500
11
SCR5/16-18X1/2 SELFTAP ZN SPEC
817490508
12
ARM ASSEMBLY, IMPELLER
532179259
13
CLIP
532085179
14
PRUŽINA
532178828
15
BELT
532184496
16
SCREW
532192306
17
ARM
532184804
18
BOLT
874780524
19
BUSHING
532175331
20
PULLEY
532180523
21
SCREW
874610516
22
SPACER
532179371
23
PULLEY
532180478
24
PULLEY
532179157
25
WASHER
532062735
26
PODLOŽKA
532850263
27
SCREW
532851084
28
GUIDE, BELT
532155452
29
PROTECTOR
532192213
30
COVER
532178830
31
SCREW
817490408
32
BOLT
532179256
33
BELLCRANK
532187853
34
SCREW
532180401
35
ARM
532195767
36
BRACKET
873800500
37
BELLCRANK
532184086
38
LINK
532187101
39
SUPPORT
532192110
40
NUT
532178820
41
CLIP
532700279
42
PEN
532179065
43
BRACKET
532184085
44
SCREW
871210616
45
BRACKET
532184074
46
PAN, FRAME BOTTOM
532184084
47
SCREW
871020512
48
NUT
532181156
49
FRAME
532403909
50
PLATE
532188002
51
SHAFT
532199514
52
WASHER
532057079
53
SLEEVE
532192275
54
RETAINING RING
532192147
55
RETAINING RING
812000002
56
PLATE
532403908
57
WASHER
811050500
58
CORD.EXTENSION.B&S.695
532193070
