Spare parts > ST S p A > Lawn Tractor > RIDER 600 BRICOMARCHE RIDER 600 BRICOMARCHE (2001) > Electrical system
Back to

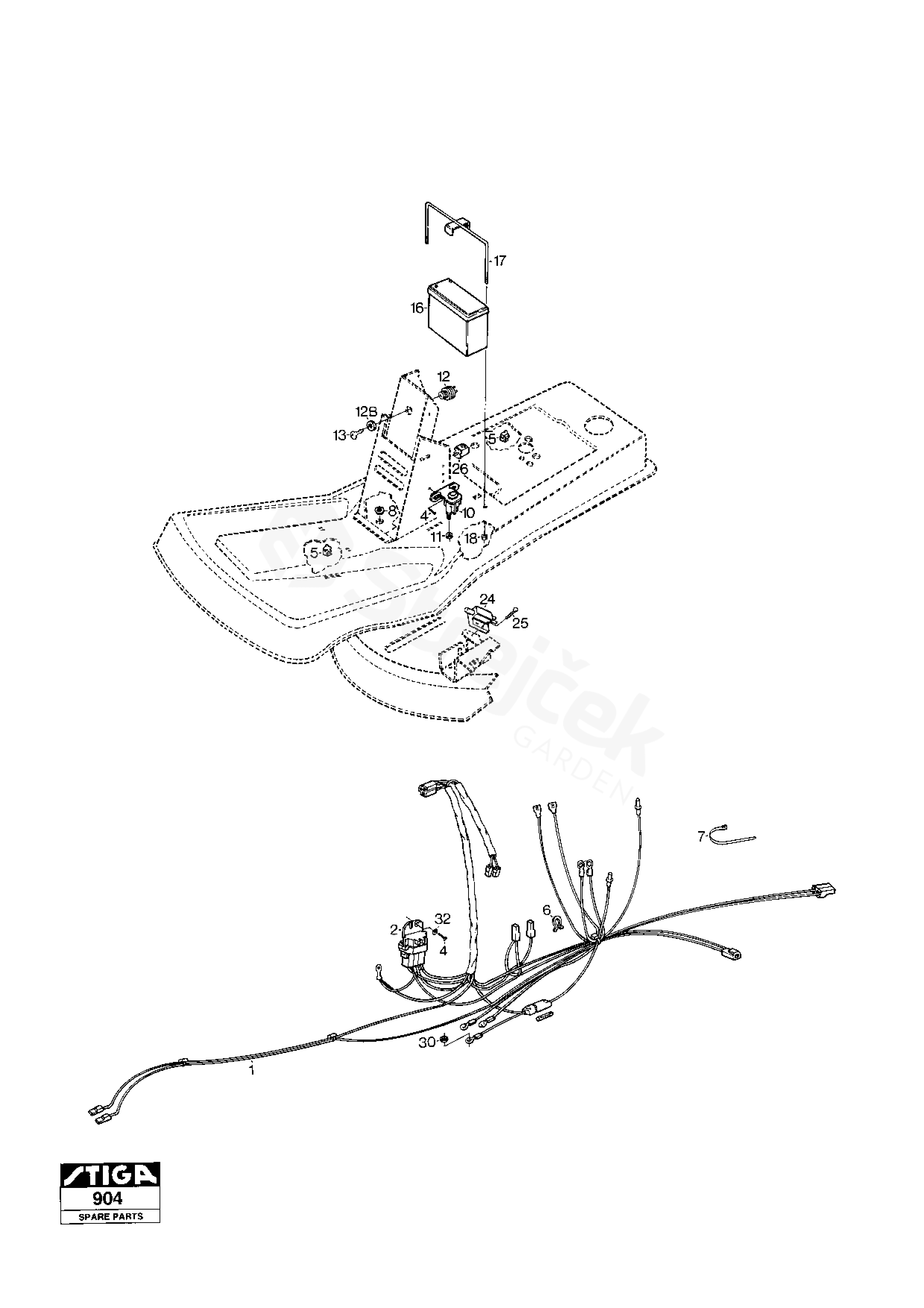

Electrical system
RIDER 600 BRICOMARCHE RIDER 600 BRICOMARCHE (2001)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For RIDER 600 BRICOMARCHE (2001)
1 Harness 1134-3886-01
2 Interlock Module 1134-3623-02
5 Cable Holder 1134-3132-01
6 Cable Holder 1134-3204-01
7 Cable Holder 9579-0003-00
8 Grommet 1134-3203-01
10 Solenoid 1134-2962-01
11 Nut 9794-5131-02
12 Starter Switch Assy. 1134-1814-01
13 Ignition Key 1134-2848-01
16 Battery 1134-3897-01
17 Battery Holder 1134-3883-01
18 Nut 9747-0831-02
24 Switch 1134-3399-02
25 Screw 9849-8013-16
26 Switch 1134-3156-01
30 Nut 9799-0831-02
32 Washer 9699-0060-02
99 Battery charger
Tillbehör/Accessory 		1134-3925-01
12A Washer
Ej ill/not ill. 		1134-2853-01
12B Nut 1134-2852-01
