Spare parts > Husqvarna > ICE AUGERS > 10530 SBE 10530 SBE, 96193000400, 961930004, 2006-05 > CONTROL PANEL & DISCHARGE CHUTE
Back to

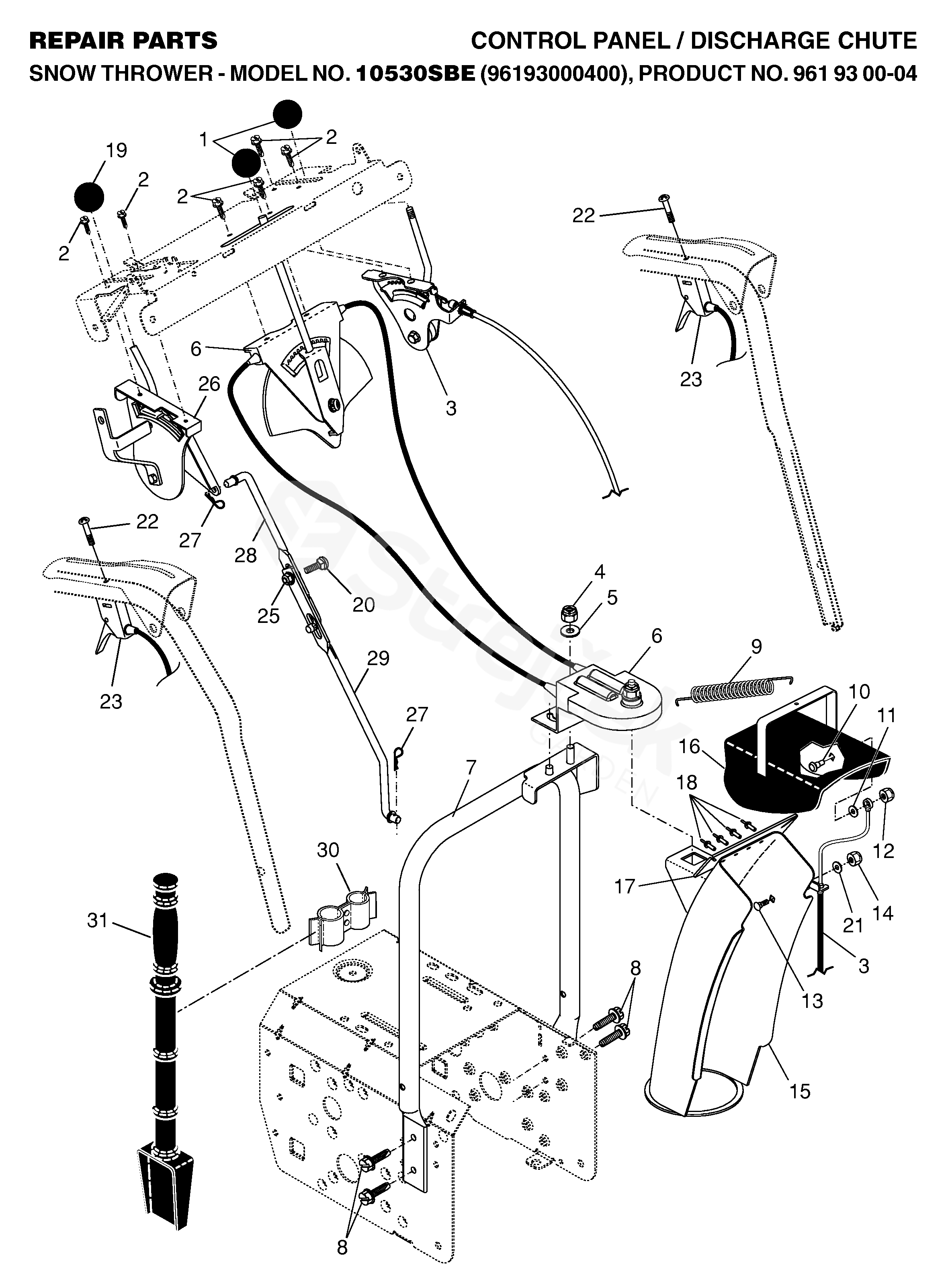

CONTROL PANEL & DISCHARGE CHUTE
10530 SBE 10530 SBE, 96193000400, 961930004, 2006-05
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 10530 SBE, 96193000400, 961930004, 2006-05
1 KNOB 532183334
2 SCREW 817501010
3 CONTROL 532178674
4 NUT 873800600
5 PODLOŽKA 819131316
6 CONTROL 532178659
7 LOOP 532184089
8 SCREW 532150078
9 PRUŽINA 532184505
10 BOLT 532179829
11 SPACER 532179246
12 MATICE 873800400
13 BOLT 872250505
14 BRACKET 873800500
15 PIPE 532184112
16 DEFLECTOR 532184113
17 SEAL, DEFLECTOR 532179145
18 NÝT 532128415
19 KNOB 532183333
20 BOLT 872270506
21 CLIP 532155415
22 SCREW 874041024
23 CONTROL 532192449
25 MATICE 532155377
26 LEVER 532198875
27 PIN RETAINING SCREW 532169675
28 LEVER 532180445
29 ROD 532187716
30 HOLDER 532192710
31 TOOL.CLEAN.OUT 532192199
