Spare parts > Husqvarna > ICE AUGERS > 1130 SBEOV 1130 SBEOV, 961930021, 2006-09 > CONTROL PANEL & DISCHARGE CHUTE
Back to

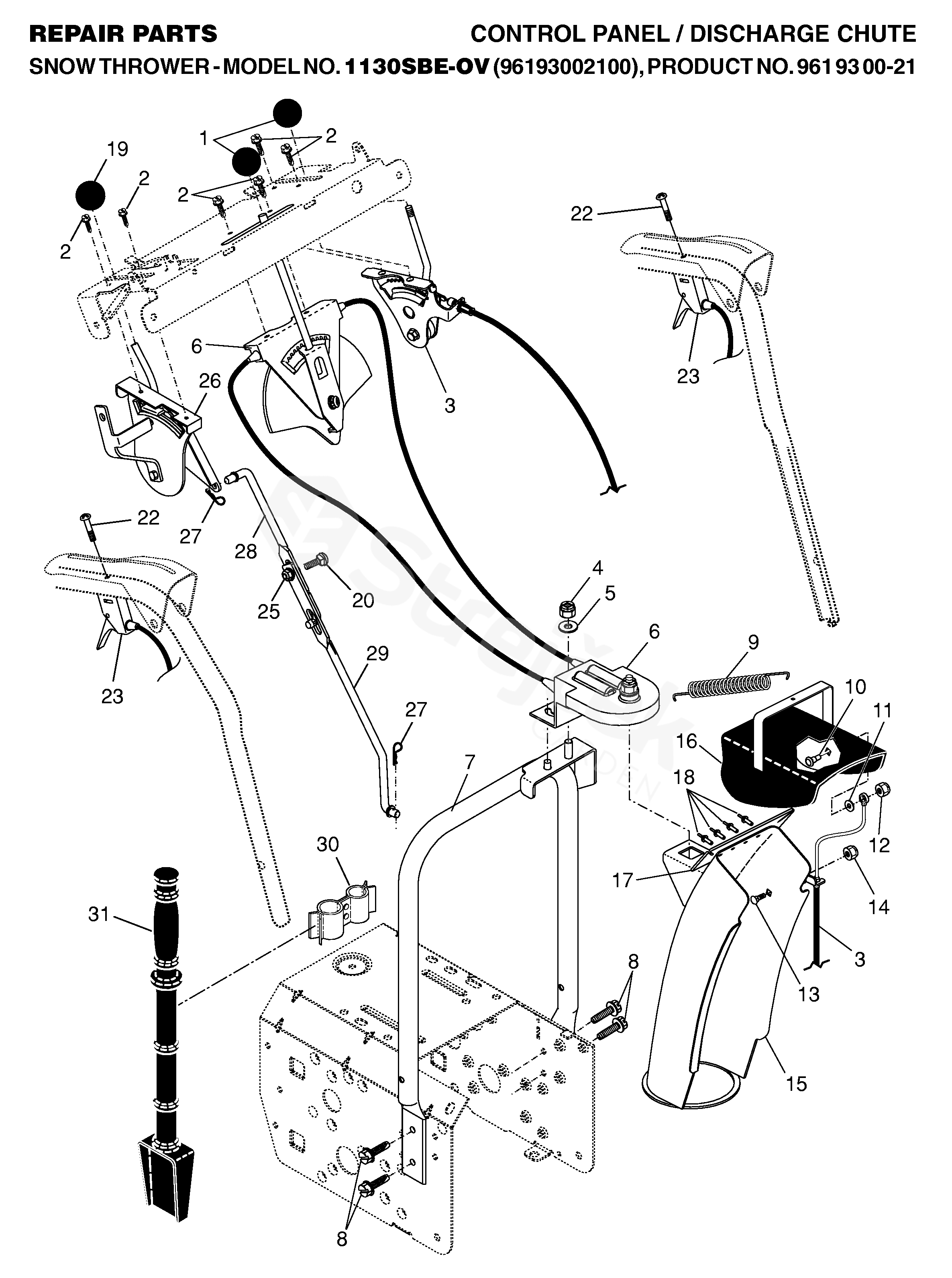

CONTROL PANEL & DISCHARGE CHUTE
1130 SBEOV 1130 SBEOV, 961930021, 2006-09
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 1130 SBEOV, 961930021, 2006-09
1 KNOB 532183334
2 SCREW 817501010
3 CONTROL 532198475
4 NUT 873800600
5 PODLOŽKA 819131316
6 CONTROL 532404974
7 SUPPORT 532404643
8 SCREW 532150078
9 PRUŽINA 532184505
10 BOLT 532179829
11 SPACER 532179246
12 MATICE 532191730
13 BOLT 872250505
14 BOLT 532751153
15 CHUTE 532407650
16 DEFLECTOR 532184113
17 SEAL, DEFLECTOR 532179145
18 NÝT 532128415
19 KNOB 532183333
20 BOLT 532198648
22 SCREW 874041024
23 CONTROL 532192449
25 NUT 532198541
26 LEVER 532198474
27 PIN RETAINING SCREW 532169675
28 LEVER 532180445
29 ROD 532187716
30 HOLDER 532192710
31 TOOL.CLEAN.OUT 532192199
