Spare parts > ST S p A > Lawn Tractor > VILLAGER VT 840 VILLAGER VT 840 (2015) > Transmission
Back to

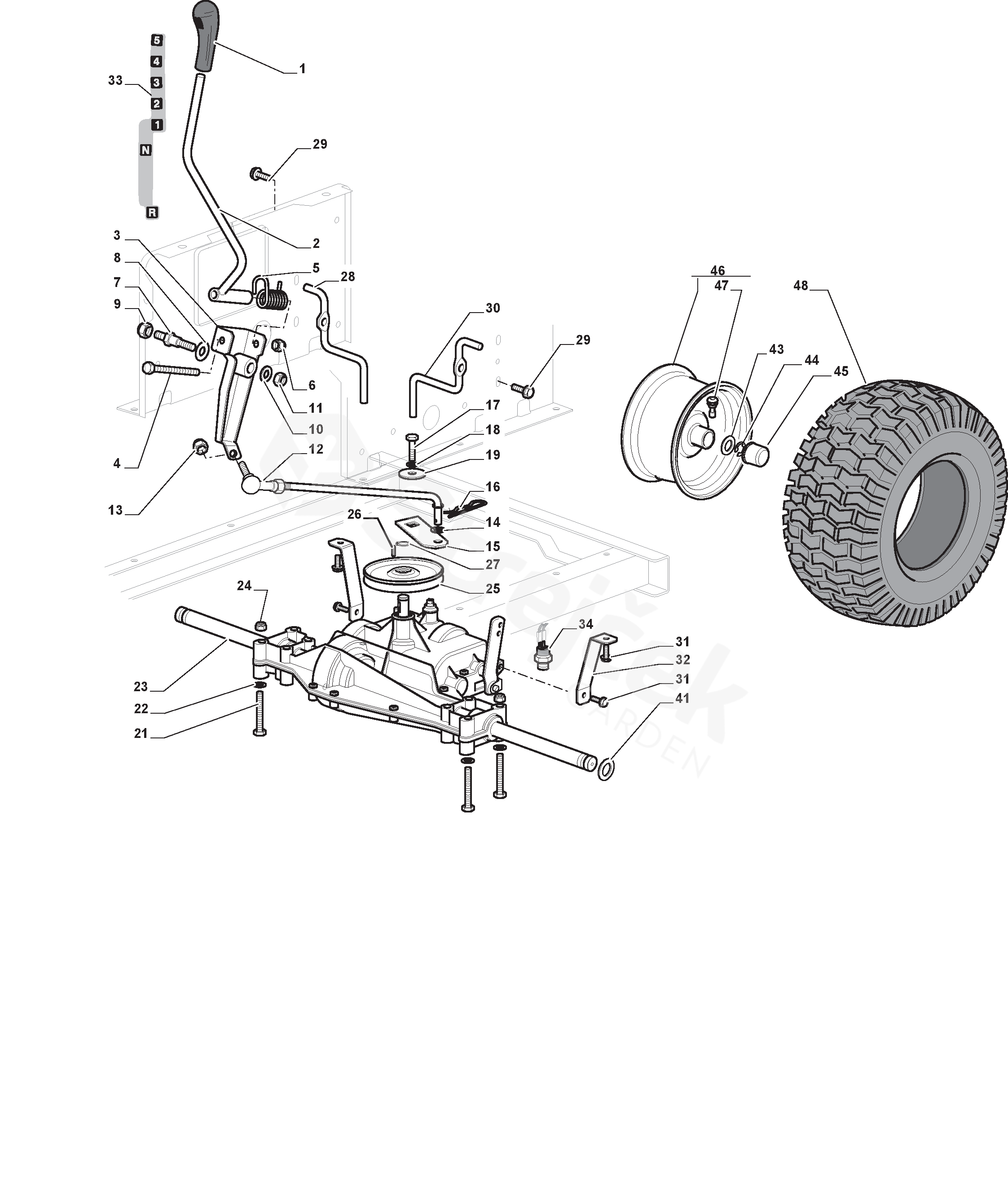

Transmission
VILLAGER VT 840 VILLAGER VT 840 (2015)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For VILLAGER VT 840 (2015)
1 Knob 325394532/0
2 Lever 382318257/0
3 Clamp 382774259/0
4 Screw 112692050/0
5 Spring 125430226/0
7 Pin 125510035/0
8 Antifriction Washer 322672151/0
10 Washer 112523060/0
11 Nut 112155010/0
12 Rod 382000649/0
13 Nut 112154210/0
14 Washer 112521340/0
15 Lever 325318235/0
16 Cotter Pin 112141418/0
17 Screw 112735520/0
18 Washer 112540040/0
19 Washer 322680009/0
21 Screw 112691600/0
22 Washer 112521350/0
23 Transmission 118400910/2
24 Nut 112155000/0
25 Pulley 182601509/0
26 Key 112139430/0
27 Seeger 112608950/0
28 Belt Guide 125270329/0
29 Screw 112735599/0
30 Belt Guide 125270330/0
31 Screw 125943009/0
32 Support 325785315/0
33 Label 114366141/0
34 Neutral Switch (Mech.) 119410608/1
41 Washer 125670005/1
44 Benzing Ring 112001010/0
45 Hub Cover
Standard Black Cover 		322110233/0
46 Rimm 182000599/0
47 Valve 125950000/0
48 Tyre 18x8.50-8 P332 WANDA 125590015/0
