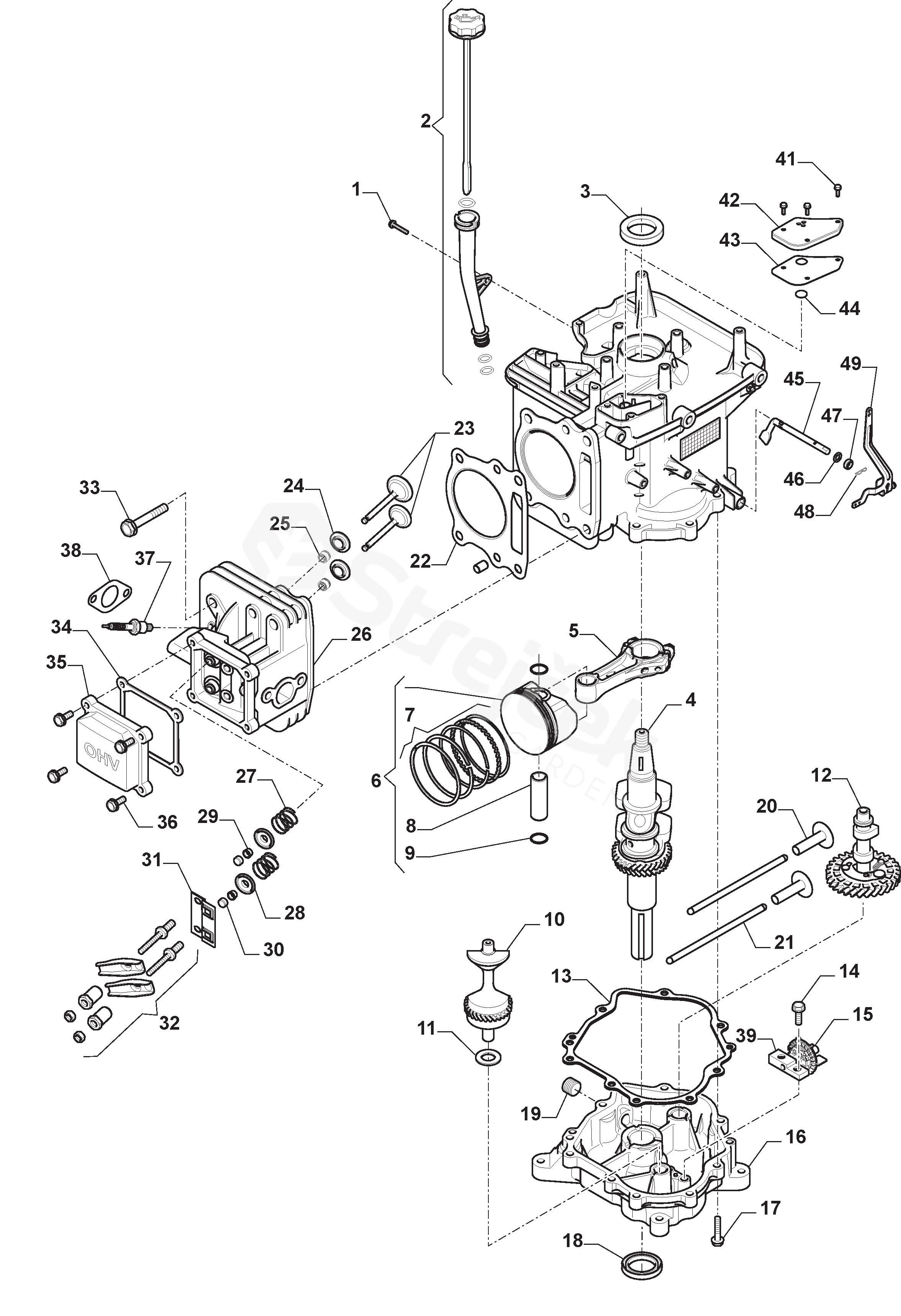

VT845 VT845 (2018)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For VT845 (2018)

1	Screw	9959-0620-16
2	Oil Filler Assy	118551375/0
4	Crankshaft	118551387/0
5	Connecting Rod Assy	118551386/0
6	Piston Assy	118551423/0
7	Piston, Ring Set	118551385/0
8	Piston Pin	118551384/0
9	Washer, Piston Pin	118551283/0
10	Counterweight	118551388/0
11	Washer	118551282/0
12	Camshaft Assy	118551389/0
13	Crankcase Gasket	118551376/0
14	Screw	112791500/0
15	Speed Governor Assy	118551403/0
16	Crankcase Cover	118551425/0
17	Screw	9959-0840-16
18	Oil seal	118551418/0
19	Oil Drain Plug	118551373/0
20	Valve Lifter	118551252/0
21	Push rod	118551390/0
22	Gasket	118551381/0
23	Valve Assy, Intake + Exhaust	118551289/0
24	Plate	118551245/0
25	Gasket	118551248/0
26	Cylinder Head	118551380/0
27	Spring Valve	118550529/0
28	Retainer	118551246/0
29	Valve keeper	118551247/0
30	Valve cap	118551244/0
31	Plate	118551391/0
32	Valve Arm Set	118551250/0
33	Screw	118551427/0
34	Seal	118551383/0
35	Cover Comp., Head	118551382/0
37	Spark Plug	9400-0244-00
38	Muffler Gasket	118551272/0
39	Plate,Governor Holder	118551269/0
41	Screw	9959-0616-16
42	Cover	118551377/0
43	Gasket, Breath Groove	118551378/0
44	Valve	118551379/0
45	Shaft, Governor Arm	118550936/0
46	Washer	118550666/0
47	Oil seal	118550935/0
48	Spring Pin	118550934/0
49	Staffa	118551401/0
