Spare parts > Husqvarna > ICE AUGERS > 1130 SBEXP 1130 SBEXP, 96193000600, 961930006, 2006-05 > DRIVE
Back to

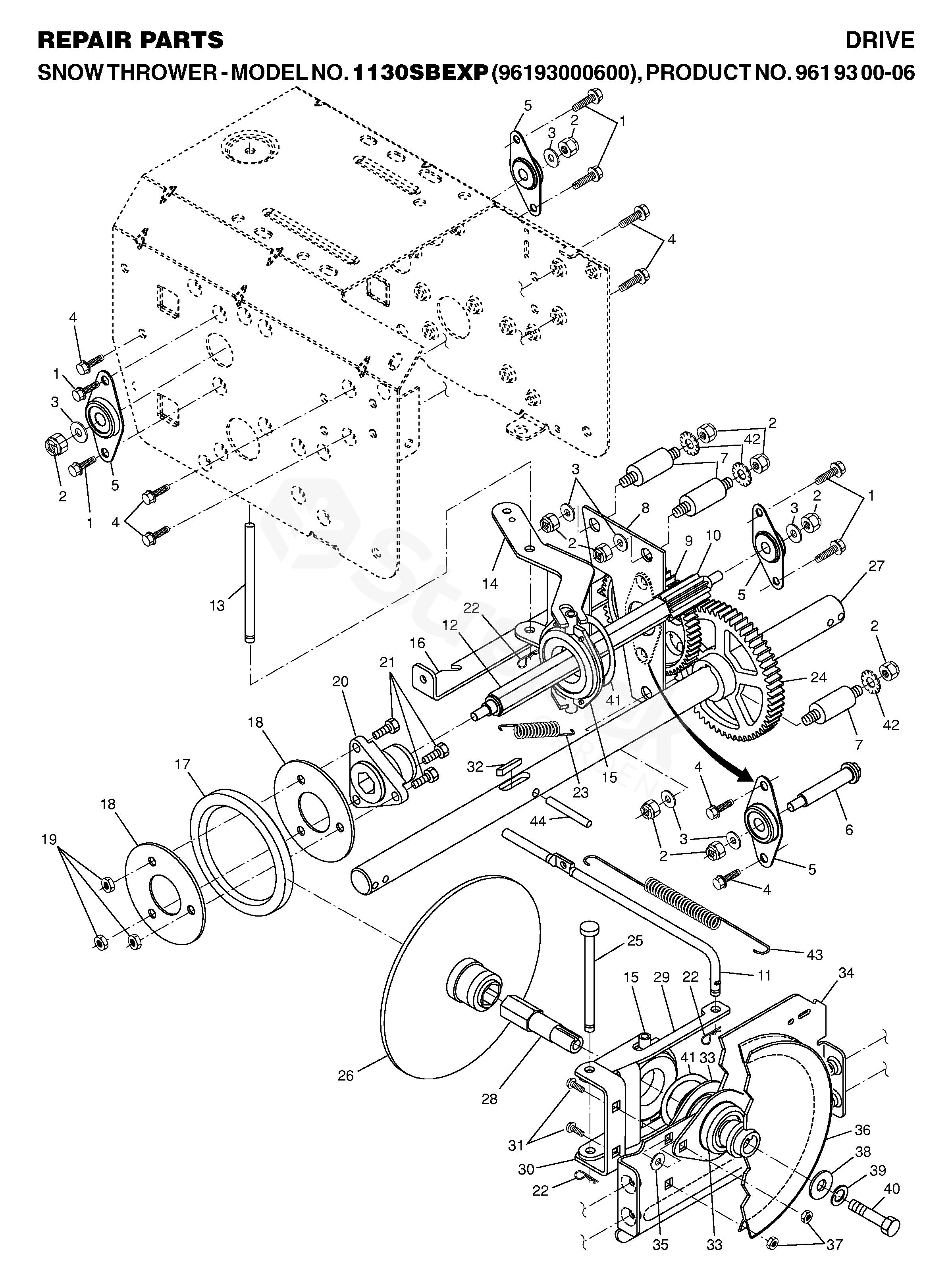

DRIVE
1130 SBEXP 1130 SBEXP, 96193000600, 961930006, 2006-05
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 1130 SBEXP, 96193000600, 961930006, 2006-05
1 SCREW 532146315
2 BRACKET 873800500
3 CLIP 532155415
4 SCR5/16-18X1/2 SELFTAP ZN SPEC 817490508
5 BEARING 532180017
6 SHAFT 532180134
7 SPACER 532179270
8 PLATE 532192907
9 GEAR 532180082
10 GEAR 532180065
11 ROD 532187714
12 SHAFT 532180066
13 PEN 532178807
14 LEVER 532184080
15 BEARING 532175344
16 BRACKET 532187857
17 RING 532179831
18 PLATE 532199509
19 MATICE 873930500
20 HUB 532178613
21 BOLT 874760514
22 CLIP 532085179
23 SPRING 532180135
24 GEAR 532180081
25 PEN 532178695
26 PLATE 532197763
27 SHAFT 532178621
28 SHAFT 532197764
29 LEVER 532184077
30 BRACKET 532184076
31 BOLT 872270505
32 KEY 532189282
33 BEARING 532188909
34 PLATE, DRIVE MOUNTING 532184075
35 SPACER 532182504
36 PULLEY 532191080
37 MATICE 532155377
38 WASHER 819111507
39 PODLOŽKA 810040500
40 SCREW 874950512
41 RETAINER RING 812000012
42 WASHER 811050500
43 SPRING 532179095
44 PIN 532184206
