ST S p A
>
Lawn Tractor
>
HTE 92 HTE 92 (2006)
>

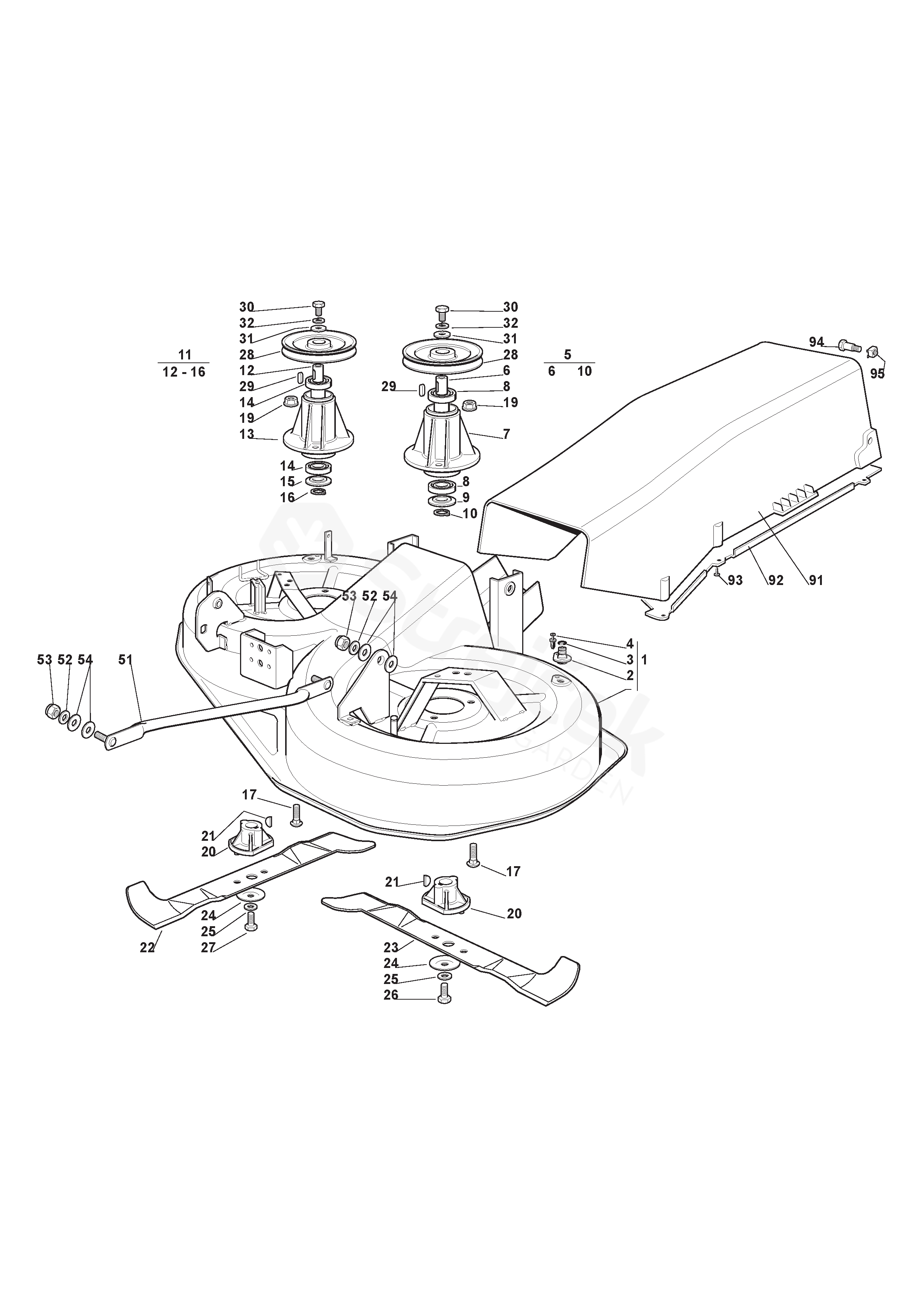

Mower Deck
Back to
HTE 92
HTE 92 (2006)
Mower Deck
HTE 92
HTE 92 (2006)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
HTE 92 (2006)
1
Mower Casing
Inkl. pos 2 - 4 _ HTE92
1136-1289-01
2
Water Hose Connection
HTE92
1136-0120-01
3
O-Ring
HTE92
1136-0068-01
4
Rivet
HTE92
1136-0012-01
5
Bearing Box Assy-L
Inkl. pos 6 - 10 _ HTE92
1136-0481-01
6
Blade Shaft
HTE92
1136-0099-01
8
Ball Bearing
HTE92
1136-0069-01
9
Dust Cover
HTE92
1136-0176-01
10
Circlip
HTE92
9650-0020-04
11
Bearing Box Assy-R
Inkl. pos 12 - 16 _ HTE92
1136-0482-01
12
Blade Shaft
HTE92
1136-0100-01
14
Ball Bearing
HTE92
1136-0069-01
15
Dust Cover
HTE92
1136-0176-01
16
Circlip
HTE92
9650-0020-04
17
Screw
HTE92
9898-0825-16
19
Nut
HTE92
9739-0831-22
20
Blade Hub
HTE92
1136-0221-01
21
Key
HTE92
9600-0014-00
22
Blade-Rh
HTE92
1136-1799-01
23
Blade-Lh
HTE92
1136-1798-01
24
Elastic Washer
HTE92
1136-0083-01
25
Washer
HTE92
1136-0015-01
26
Screw
HTE92
9987-5238-12
27
Blade Bolt (Lh-Thread)
HTE92
1136-0018-01
28
Belt Pulley
HTE92
1136-1244-01
29
Key
HTE92
1136-0001-01
30
Screw
HTE92
9997-0820-16
31
Washer
HTE92
1136-0307-01
32
Washer
HTE92
9683-0030-02
51
Equalizer Rod
HTE92
1136-0448-01
52
Washer
HTE92
9699-0035-02
53
Lock Nut
HTE92
9747-1031-02
54
Washer
HTE92
1136-0308-01
91
Discharge Chute
HTE92
1136-0139-01
92
Deflector
HTE92
1136-0177-01
93
Screw
HTE92
9836-9618-12
94
Pin Bolt
HTE92
1136-0245-01
95
Nut
HTE92
1136-0005-01
