ST S p A
>
Lawn Tractor
>
OM 90C/11 5M OM 90C/11 5M (2007) [299951262/OMF]
>

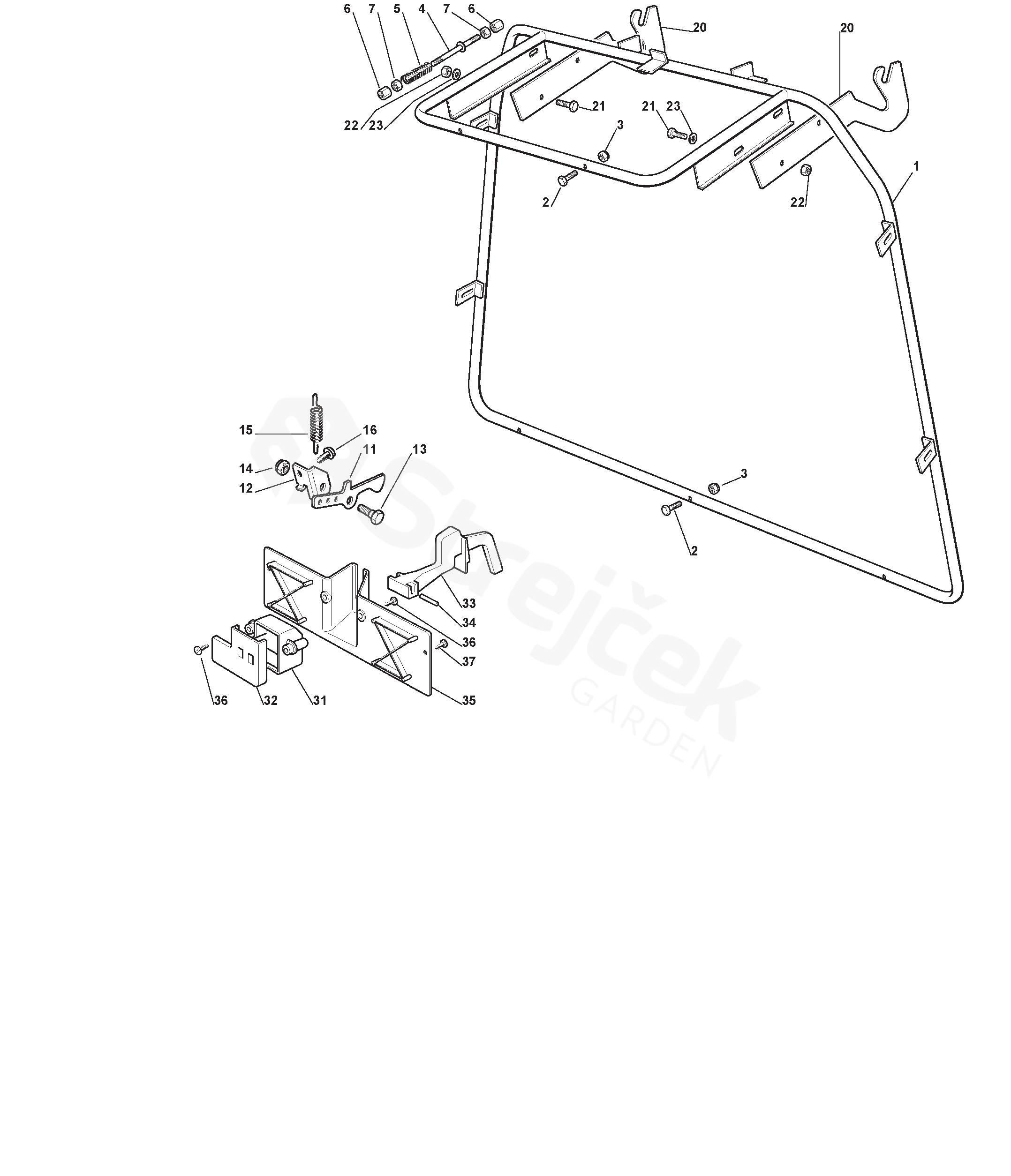

Grasscatcher
Back to
OM 90C/11 5M
OM 90C/11 5M (2007) [299951262/OMF]
Grasscatcher
OM 90C/11 5M
OM 90C/11 5M (2007) [299951262/OMF]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
OM 90C/11 5M (2007) [299951262/OMF]
1
Fabric Box Frame
382800017/1
2
Screw
112791500/0
3
Nut
112154510/0
4
Rod
182000465/1
5
Spring
125430232/0
6
Pin
125510042/0
7
Nut
112292100/0
11
Hooking Clamp
325774327/0
12
Clamp
325755031/0
13
Pin
125510080/0
14
Nut
112292102/0
15
Brake Spring
125430220/0
16
Screw
112735122/0
20
Support
325785077/0
21
Screw
112793102/0
22
Nut
112155000/0
23
Washer
112521350/0
31
Grassc.Full Micro Protection Tcj-F
125600041/0
32
Grasscatcher Micro Prot Cover
125600042/0
33
Full Grassc. Microswtich Cover
125318124/0
34
Pin
112400030/0
35
Bracket
125774251/0
36
Screw
112728510/0
37
Screw
112735110/0
