ST S p A
>
Lawn Tractor
>
NJS 92 Hydro NJS 92 Hydro (2020)
>

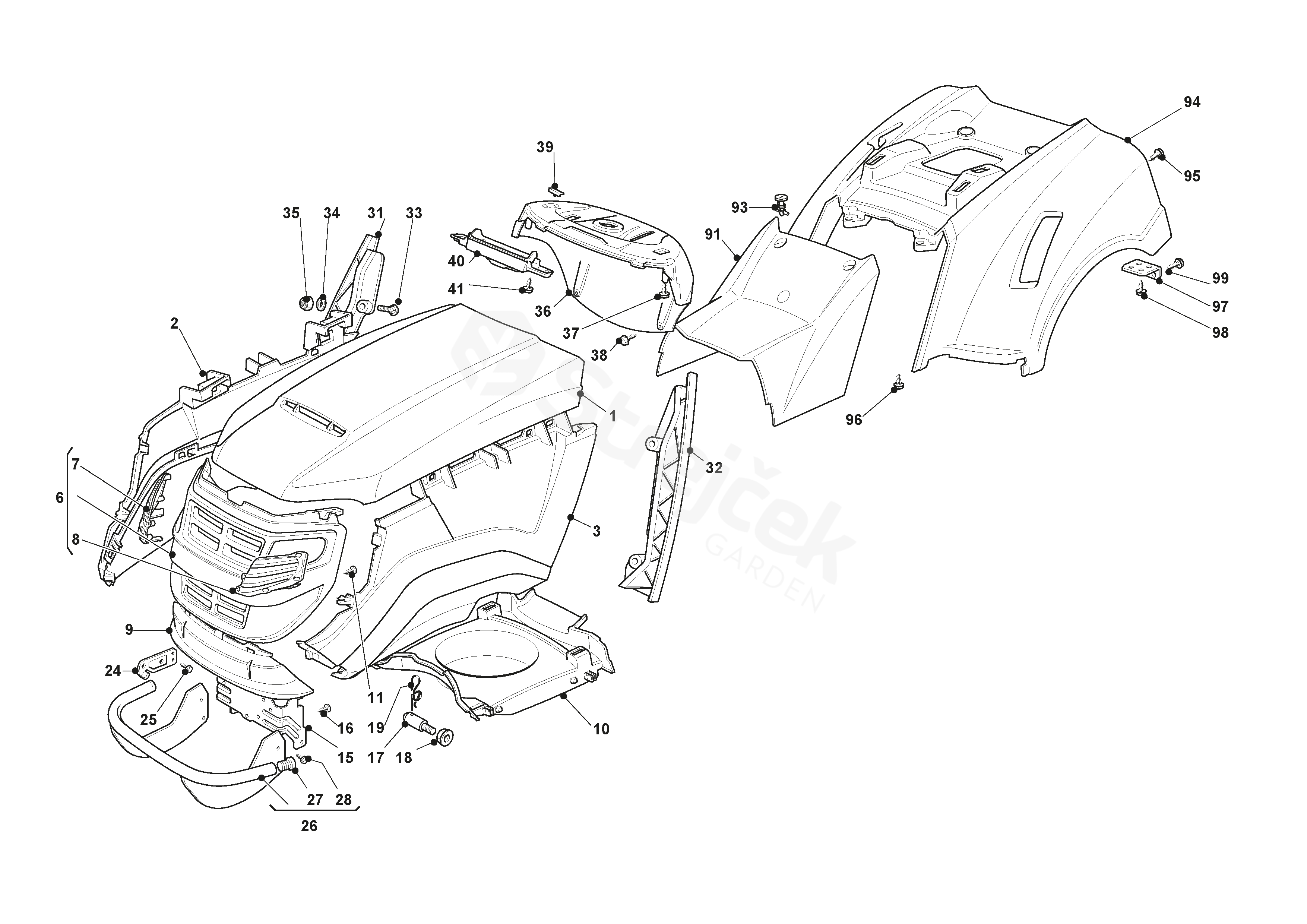

Body
Back to
NJS 92 Hydro
NJS 92 Hydro (2020)
Body
NJS 92 Hydro
NJS 92 Hydro (2020)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
NJS 92 Hydro (2020)
1
Upper Engine Hood, Red
Dark Red
325076977/0
2
Hood, Right
Dark Red
382394653/0
3
Hood, Left
Dark Red
382394654/0
6
Hood, Front
382394628/0
7
Right Grill
325410881/0
8
Left Grill
325410882/0
9
Lower Red Hood, Front
Red
325076877/1
10
Conveyor
325108031/0
11
Screw
112735403/0
15
Engine Hood Support
325774301/2
16
Screw
112735406/0
17
Pin
125510079/1
18
Nut
112293201/0
19
Cotter Pin
124487998/0
24
Plate
325547159/1
25
Screw
112731580/0
26
Muffler Protection
382869027/0
27
Cap
118737860/0
28
Screw
112735120/0
31
Dashboard, Right Profile
325599012/0
32
Dashboard, Left Profile
325599013/0
33
Screw
112815221/0
34
Washer
112521330/0
35
Nut
112154510/0
36
Dashboard, Black
Black
325120245/0
37
Screw
112728440/0
38
Screw
112735402/0
39
Grommet
125260000/0
40
Card Protection
325600074/0
91
Red Central Cover
Dark Red
325110486/0
93
Stake
125580020/2
94
Red Wheels Cover
Dark Red
325110485/0
97
Bracket
325755041/0
98
Screw
112728686/0
99
Screw
112735110/0
