Spare parts > ST S p A > Lawn Tractor > FORMULA 1 FORMULA 1 (2013) > Engine - Honda GXV 390
Back to

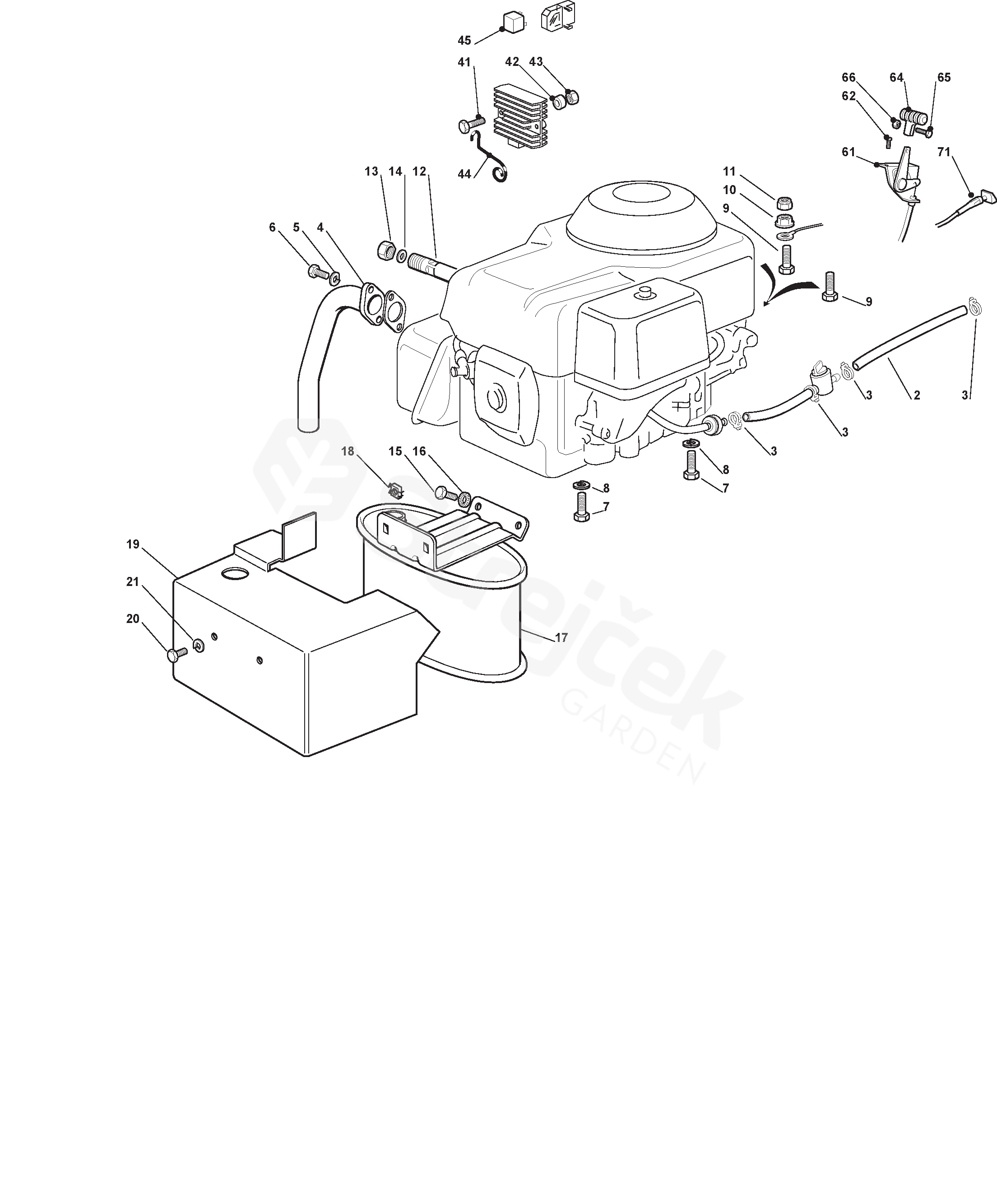

Engine - Honda GXV 390
FORMULA 1 FORMULA 1 (2013)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For FORMULA 1 (2013)
2 Connecting Tube 325869057/0
3 Fair Led 118375051/1
4 Exaust Discharge Tube 118738204/0
6 Screw 112793102/0
7 Screw 112735802/0
9 Screw 112691100/0
10 Nut 112154210/0
11 Nut 112155000/0
12 Oil Discharge Extension 127598061/1
13 Plug 118737849/0
14 Oil seal 118401001/1
15 Screw 112792611/0
16 Washer 112540260/0
17 Muffler 182750010/0
18 Nut 112360425/0
19 Muffler Protection 382598003/1
20 Screw 125943012/0
21 Grower 112583500/0
41 Screw 112815221/0
42 Spacer 122170950/0
43 Nut 112292102/0
44 Spring 127430561/0
45 Relay 133567000/0
61 Throttle Cable 182000200/1
62 Screw 112788512/0
64 Knob 325592000/0
65 Screw 112726388/0
66 Nut 112290800/0
71 Choke Control 125090007/0
