Spare parts > ST S p A > Lawn Tractor > RL 998 RL 998 (2020) > Piston, Crankshaft, Crankcase
Back to

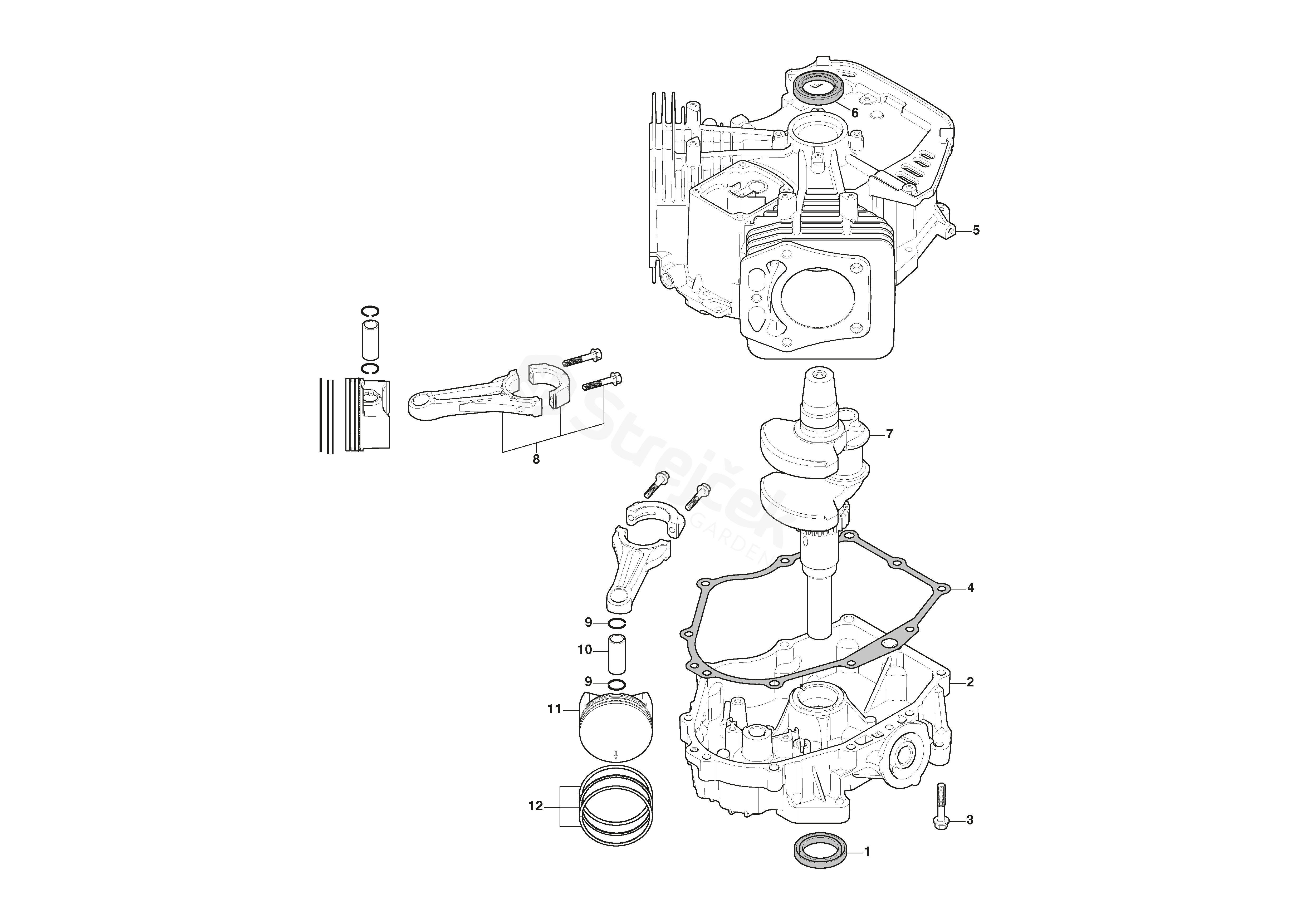

Piston, Crankshaft, Crankcase
RL 998 RL 998 (2020)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For RL 998 (2020)
1 Oil seal
d=38_D=62_b=8 		118551602/0
2 Crankcase Cover 118551541/0
3 Screw
M8x45 		scrw
4 Gasket 118551542/0
5 Cilynder 118551628/0
6 Oil seal
d=35_D=52_b=7 		118551418/0
7 Crankshaft 118551555/0
8 Connecting Rod Assy 118551554/0
9 Oil seal 118551600/0
10 Piston Pin 118551552/0
11 Piston 118551629/0
12 Piston, Ring Set 118551630/0
