Spare parts > ST S p A > Lawn Tractor > SOLO 575 HYDRO SOLO 575 HYDRO (2004) > TT Transmission with Electromagnetic Clutch
Back to

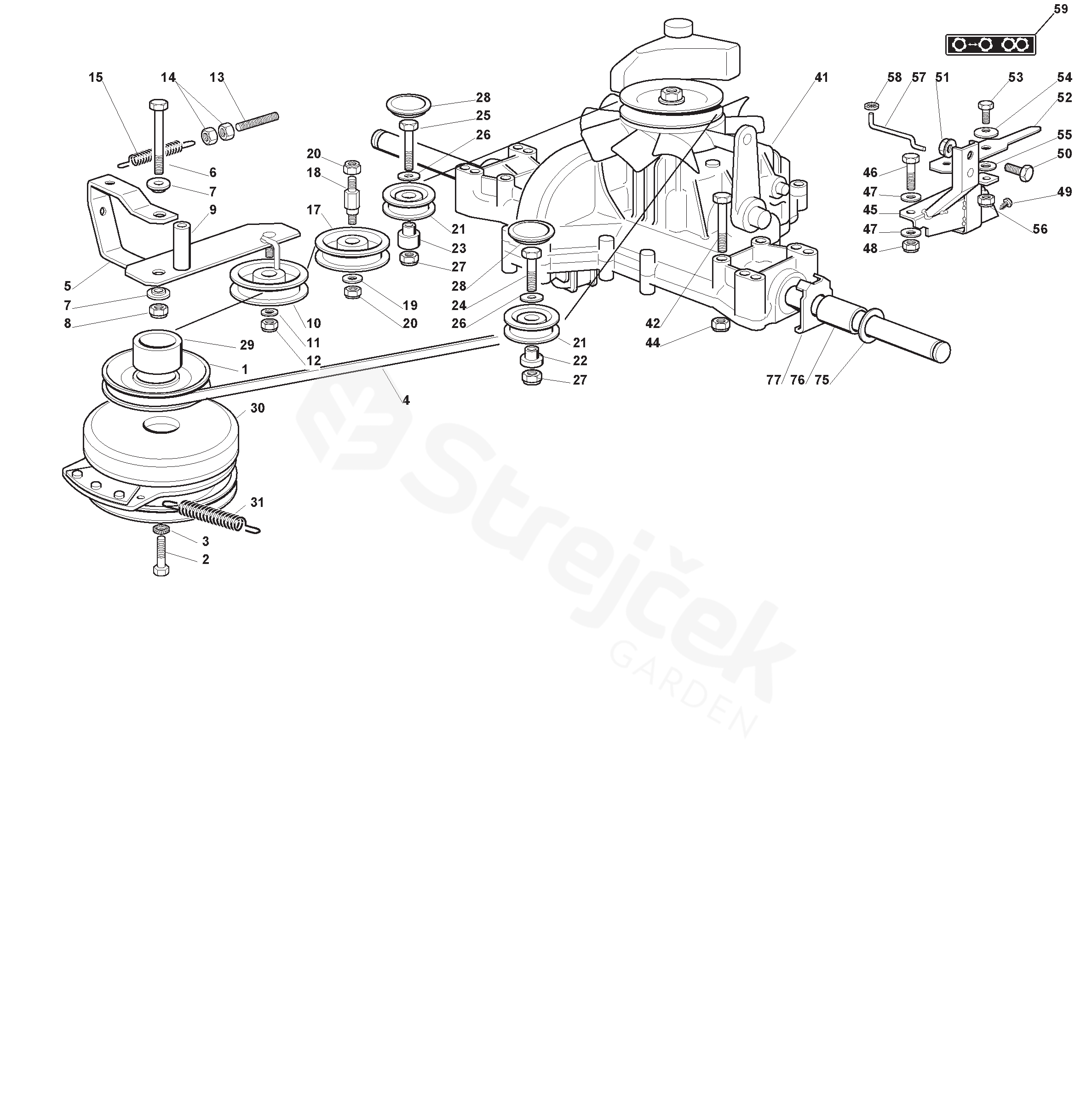

TT Transmission with Electromagnetic Clutch
SOLO 575 HYDRO SOLO 575 HYDRO (2004)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SOLO 575 HYDRO (2004)
1 Pulley 125601566/0
2 Screw 112737320/0
3 Washer 112543000/0
4 Trapezoidal Belt 135062020/1
5 Lever 382318165/1
6 Screw 112692000/0
7 Bushing 125038002/1
9 Spacer 125160027/0
10 Pulley 125601554/0
11 Washer 112523060/0
12 Nut 112155000/0
13 Tie Rod 125840010/1
14 Nut 112293200/0
15 Spring 125430219/0
17 Pulley 125601555/0
18 Pin 125510139/0
21 Pulley 325601570/1
22 Left Spacer 125160030/1
23 Right Spacer 125160024/2
24 Screw 112691115/0
25 Screw 112691400/0
28 Cover 125109521/1
29 Spacer 125160021/0
30 Electromagnetic Clutch 118399060/0
31 Brake Spring 125430210/1
41 Rear Axle Tuff Torq K46F 118400950/1
42 Screw 112691800/0
44 Nut 112154210/0
45 Support 382785109/0
46 Screw 112691200/0
47 Washer 112521350/0
49 Screw 112735120/0
50 Screw 112792611/0
51 Nut 112293201/0
52 Lever 325318157/0
53 Screw 112793102/0
54 Elastic Washer 112369500/0
55 Antifriction Washer 325670011/0
57 Rod 125033033/0
58 Crown Fastener 112604896/0
59 Label 114357423/2
75 Washer 125670005/1
76 Spacer 125160023/0
77 Washer 325670025/0
