Spare parts > ST S p A > Lawn Tractor > TCP 102 Hydro TCP 102 Hydro (2019) > Engine - B&S
Back to

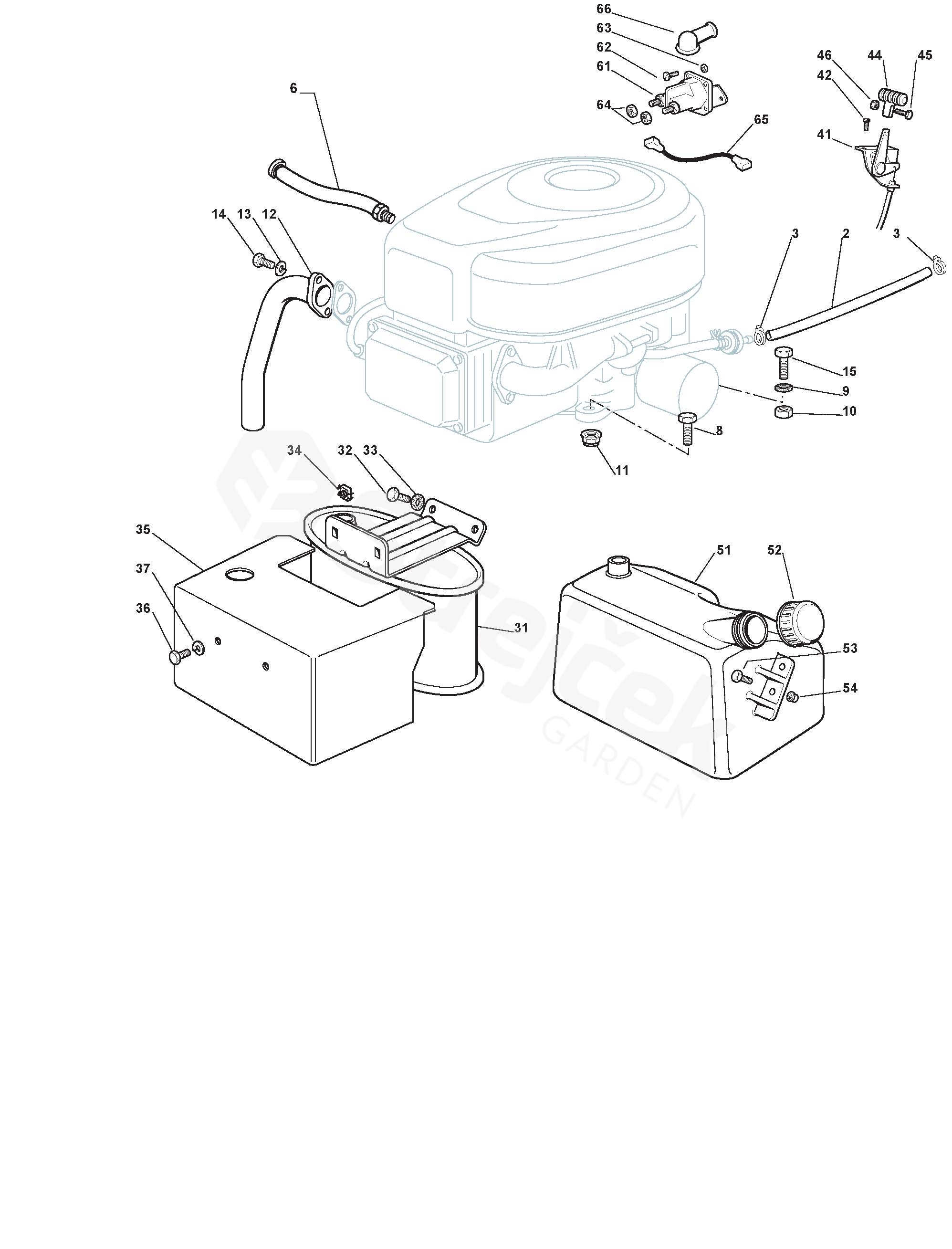

Engine - B&S
TCP 102 Hydro TCP 102 Hydro (2019)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TCP 102 Hydro (2019)
2 Connecting Tube 325869016/1
3 Fair Led 118375051/1
6 Oil Drain Assy 1134-5827-01
8 Screw 112691100/0
9 Washer 112540260/0
10 Nut 112154210/0
11 Nut 112154210/0
12 Exaust Discharge Tube 118738206/0
13 Grower 112583500/0
14 Screw 112735530/0
15 Screw 112691115/0
31 Muffler
From 01-April-2018 		182750010/0
32 Screw 112793102/0
33 Washer 112540260/0
34 Nut 112360425/0
35 Muffler Protection 382598009/2
36 Screw 112792611/0
37 Grower 112583500/0
41 Throttle Cable 182000200/1
42 Screw 125943012/0
44 Knob
From 01-September-2013 		325592000/0
45 Screw 112726388/0
46 Nut 112290800/0
51 Tank
with Fuel Indicator 		325735111/3
52 Fuel Cap 125795000/1
53 Screw 112788910/0
54 Rivet 112500092/0
61 Starter Relay
From 01-September-2015 		118736110/0
62 Screw 112791011/0
63 Nut 112292102/0
64 Nut
From 01-September-2015 		112360352/0
65 Cable 125065017/0
66 Protection
From 01-September-2017 		118564861/2
