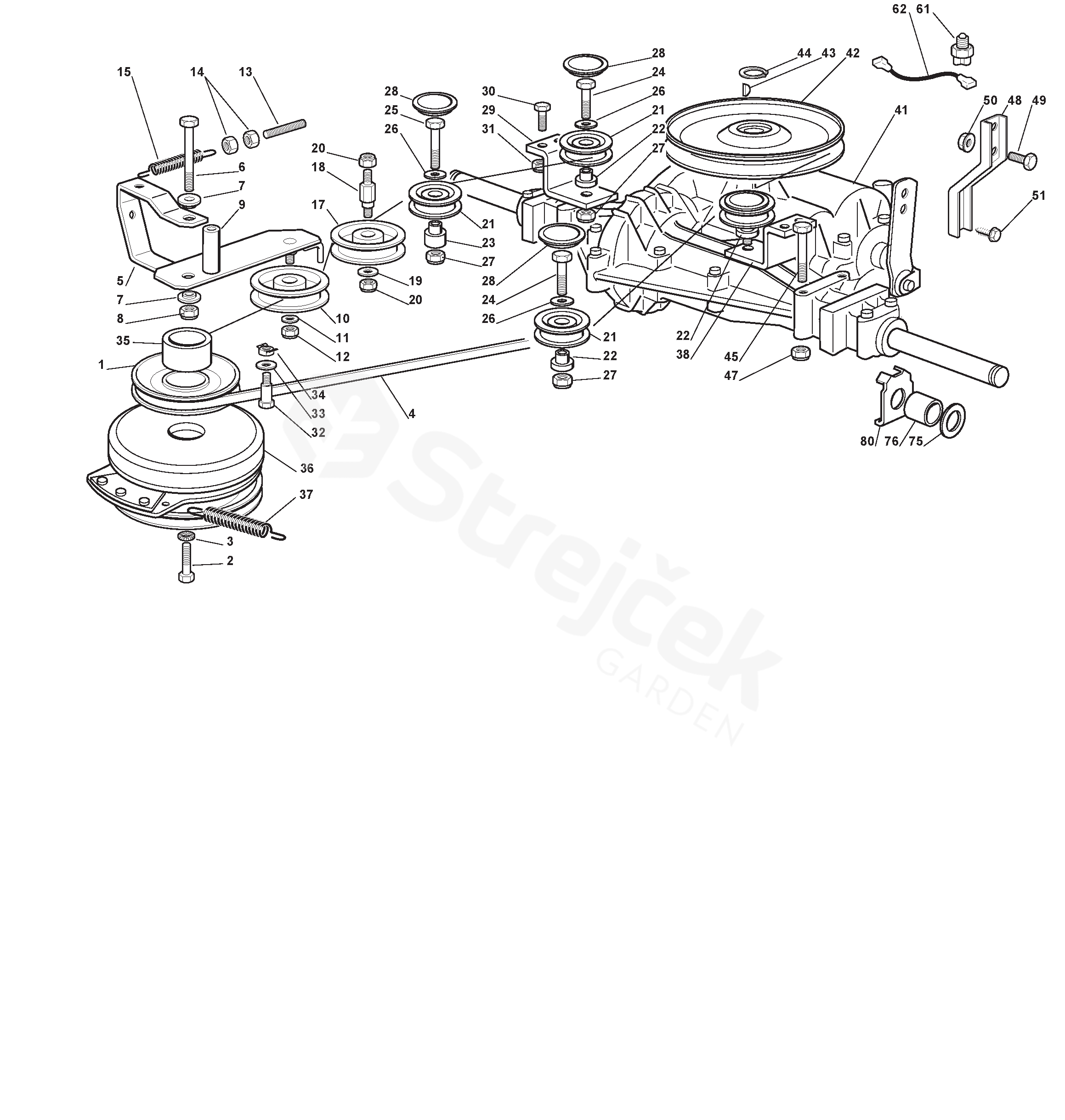

Spare parts - Partlist - OM 102C/16 5 M OM 102C/16 5 M (2008) - Transmission with Electromagnetic Clutch

Everything for your machines

OM 102C/16 5 M OM 102C/16 5 M (2008)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For OM 102C/16 5 M (2008)

1	Pulley	125601567/0
2	Screw	112737320/0
3	Washer	112543000/0
4	Belt	135062011/0
5	Lever	382318165/1
6	Screw	112692000/0
7	Bushing	125038002/1
9	Spacer	125160027/0
10	Pulley	125601554/0
11	Washer	112523060/0
12	Nut	112155000/0
13	Tie Rod	125840010/1
14	Nut	112293200/0
15	Spring	125430219/0
17	Pulley	125601555/0
18	Pin	125510036/0
21	Pulley	325601570/1
22	Left Spacer	125160018/1
23	Right Spacer	125160024/2
24	Screw	112691100/0
25	Screw	112691400/0
28	Cover	125109521/1
29	Clamp	325785125/1
30	Screw	112791213/1
31	Nut	112154510/0
32	Stake	125580018/0
34	Nut	112360425/0
35	Spacer	125160021/0
36	Electromagnetic Clutch	118399060/0
37	Brake Spring	125430210/0
38	Clamp	325785227/0
41	Peerless Mechanic Transaxle Group Mst205	118400940/0
42	Pulley	182601503/0
43	Key	112139430/0
44	Seeger	112608950/0
45	Screw	112691800/0
47	Nut	112154210/0
48	Clamp	325774285/0
49	Screw	112792611/0
50	Nut	112293201/0
51	Screw	112735150/0
61	Micro Lever	119410610/0
62	Cable	125065026/0
75	Washer	112521410/0
76	Spacer	125160028/0
80	Washer	325670025/0
