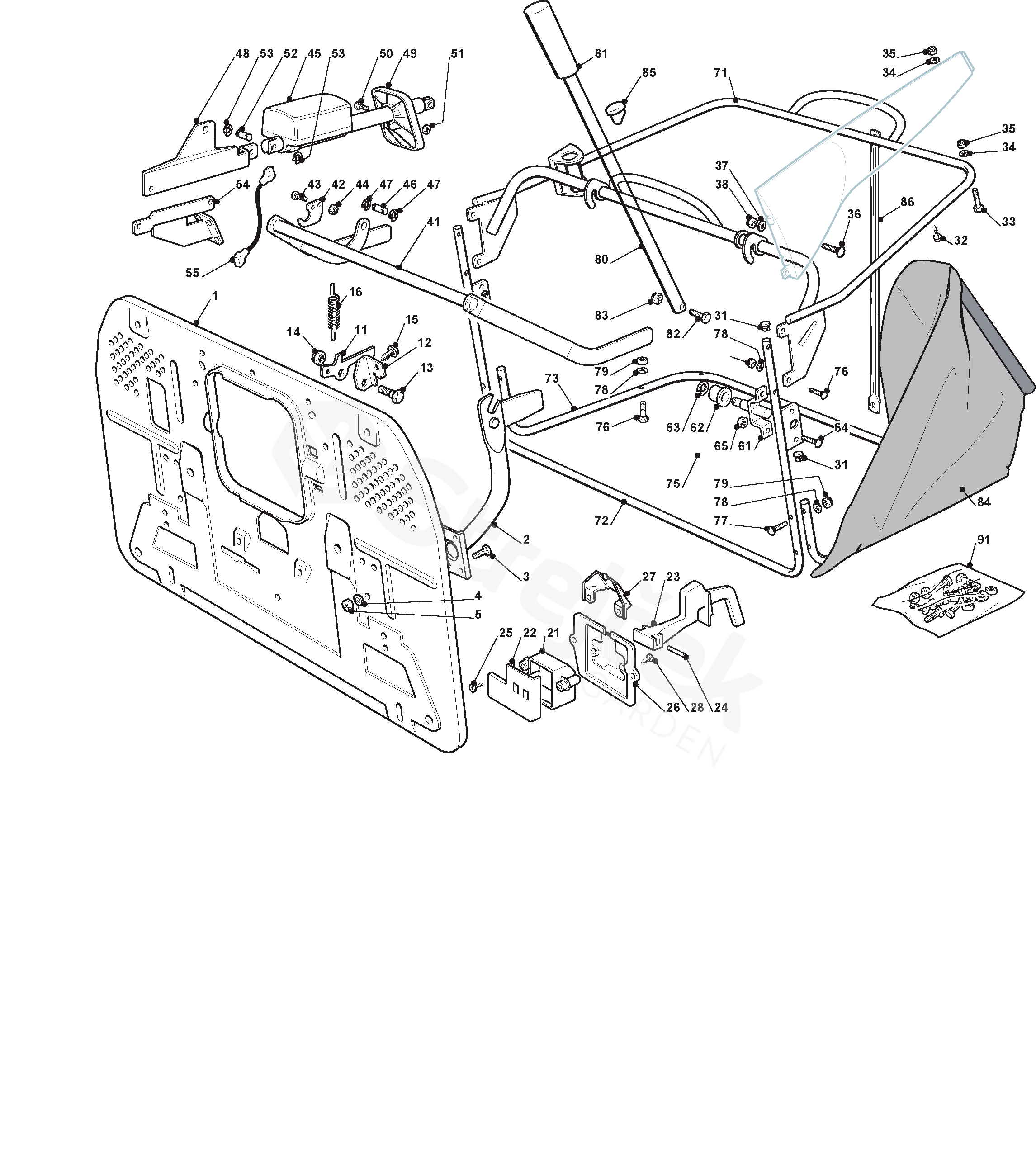

Spare parts - Partlist - TH4Y 102 Hydro TH4Y 102 Hydro (2019) - Grasscatcher

Everything for your machines

TH4Y 102 Hydro TH4Y 102 Hydro (2019)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For TH4Y 102 Hydro (2019)

1	Rear Plate	382547053/1
2	Support	382774245/0
3	Screw	112793102/0
4	Washer	112523060/0
5	Nut	112293201/0
11	Clamp	325774417/0
12	Bracket	325755031/1
13	Pin	125510080/1
14	Nut	112292102/0
15	Screw	112735122/1
16	Spring	127430571/0
21	Grassc.Full Micro Protection Tcj-F	125600041/0
22	Grasscatcher Micro Prot Cover	125600042/0
23	Full Grassc. Microswtich Cover	125318124/0
24	Pin	112400030/0
25	Screw	112728510/0
26	Micro Protection	325785272/0
27	Empty Micro Grassc.Protection Cover	125600048/0
28	Screw	112728450/0
31	Push rod	118566110/0
32	Screw	112735410/0
33	Screw	112689500/0
34	Washer	112521330/0
35	Nut	112154510/0
36	Screw	112815220/0
41	Axle	382000507/0
42	Grasscatcher Lifting Axle Clam	325774317/0
43	Screw	112815210/0
45	Actuator	118001000/0
46	Pin	125510083/1
47	Benzing Ring	112000955/0
48	Actuator Support	325785197/1
49	Protection	325600060/0
50	Screw	112727795/0
51	Nut	112291000/0
54	Stiffening	382650213/0
55	Connecting Cable	125065030/0
61	Support	382785147/0
62	Roll	125690001/0
63	Benzing Ring	112000956/0
64	Screw	112818690/0
71	Upper Frame	382800123/1
72	Front Frame	382800089/1
73	Lower Frame	325800031/0
75	Lower Stiffening	382650043/0
77	Screw	112815245/0
80	Grasscatcher Lifting Tube	125869029/1
81	Knob	125394508/0
82	Screw	112674550/0
84	Grasscatcher Black without Logo	182105945/0
85	Cap	325120232/0
86	Rear Stiffening	325650159/0
91	Outfit, Screws	382180117/0
