Spare parts > ST S p A > Lawn Tractor > TH4X 122 Hydro TH4X 122 Hydro (2020) > Blades Engagement
Back to

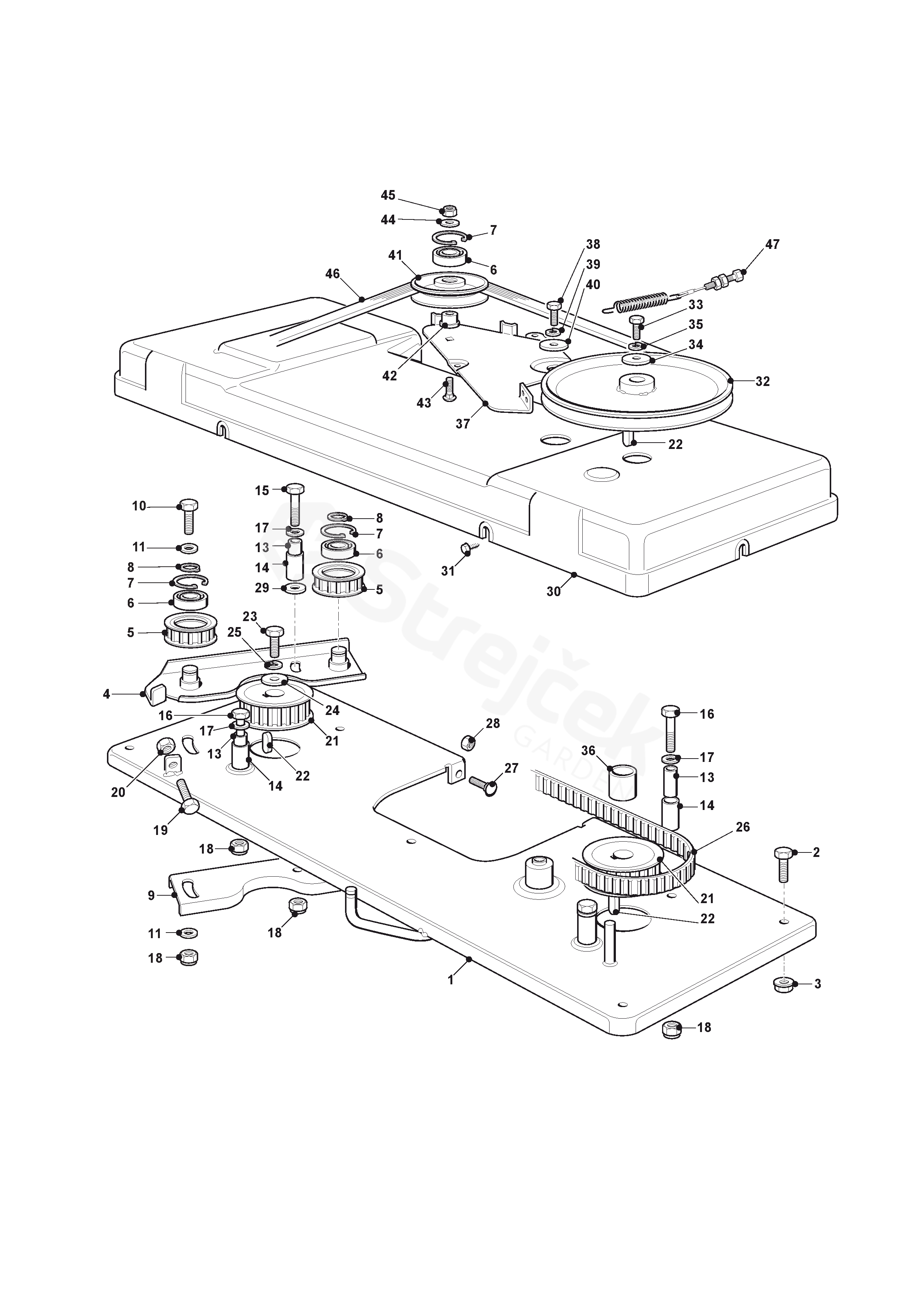

Blades Engagement
TH4X 122 Hydro TH4X 122 Hydro (2020)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TH4X 122 Hydro (2020)
1 Plate 382547031/2
2 Screw 112792611/0
3 Nut 112293201/0
4 Support 382785249/0
5 Pulley 125601594/0
6 Bearing 119216048/0
7 Seeger 112610800/0
8 Seeger 112609200/0
9 Pulley Stiffening 325650037/1
10 Screw 112691700/0
11 Washer 112521350/0
13 Spacer 125160003/2
14 Bushing 125038000/0
16 Screw 112691200/0
18 Nut 112155000/0
19 Screw 112793900/0
20 Nut 112293200/0
21 Pulley 125601596/0
22 Feather 112139480/0
23 Screw 112793102/0
24 Washer 125670007/0
25 Grower 112583500/0
26 Belt 135065606/0
27 Screw 112815200/0
28 Nut 112292102/0
29 Washer 122671651/0
30 Protection 125060101/2
31 Screw 112735110/0
32 Pulley 125601549/0
36 Spacer 125160002/1
37 Brake Lever 325318357/0
40 Washer 112523070/0
41 Pulley 125601564/1
42 Spacer 125160014/1
43 Screw 112819105/0
46 Belt 135062825/0
47 Engagging Cable 182004609/0
