ST S p A
>
Lawn Tractor
>
MONARK 12/40 MONARK 12/40 (1994)
>
Motion Drive
Back to
MONARK 12/40
MONARK 12/40 (1994)

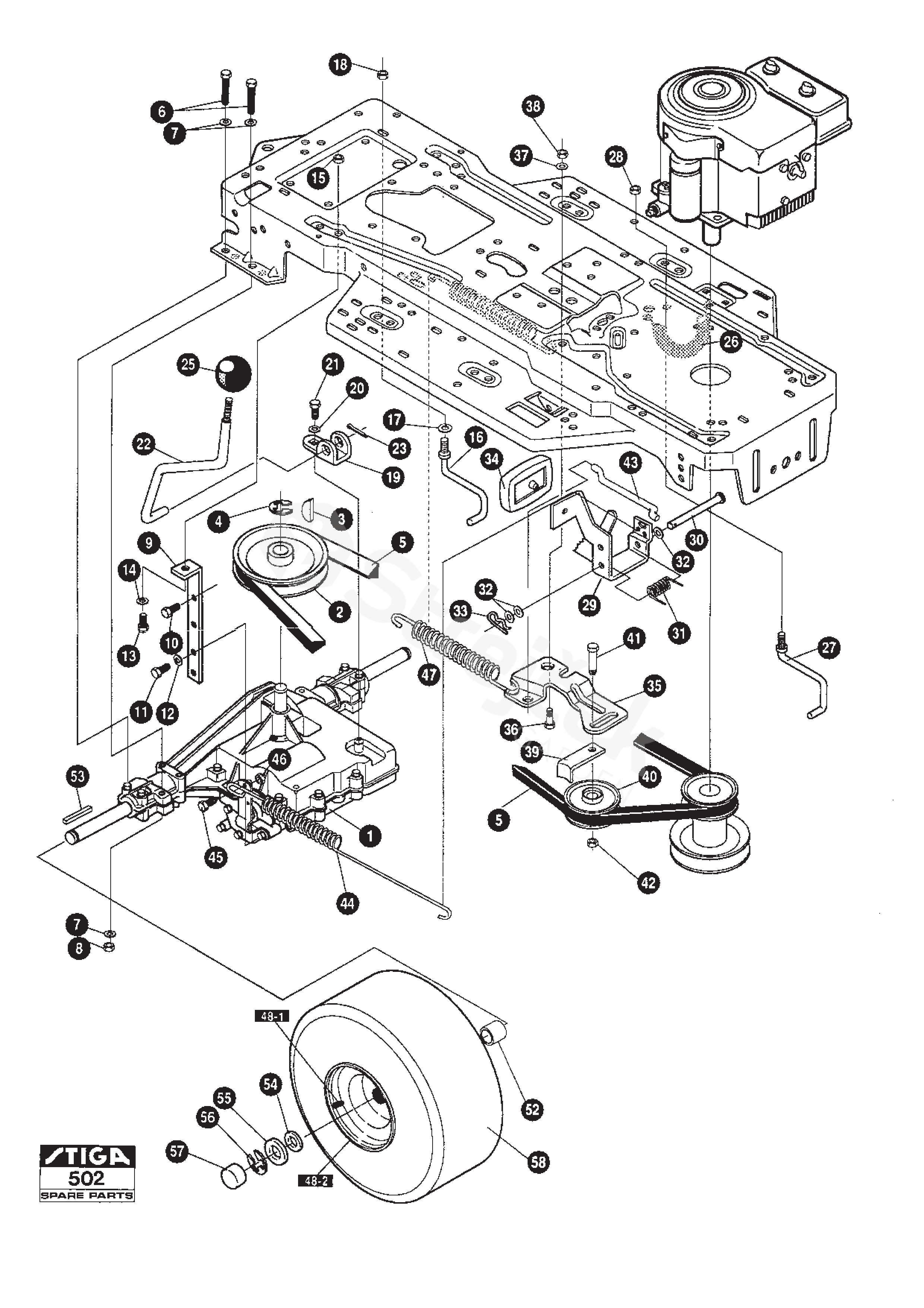

Motion Drive
MONARK 12/40
MONARK 12/40 (1994)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
MONARK 12/40 (1994)
1
Transaxle
Foote 4360-73
1133-0820-01
2
Pulley,Transaxle
1133-0328-01
3
Key
1812-0307-01
4
Circlip
9650-0016-04
5
V-Belt
L = 87.25"
1133-0554-01
6
Screw
9988-3676-12
7
Washer
9699-0028-02
8
Nut
9743-3621-32
9
Stabilizer bracket
1133-0628-01
10
Screw
1133-0406-01
11
Screw
1133-0057-01
12
Washer
9683-0030-02
13
Screw
9988-3625-16
14
Washer
9699-0028-02
15
Nut
9743-3621-32
16
Belt Guide
1133-0208-01
17
Washer
9683-0030-02
18
Nut
9743-3621-32
19
Shift Bracket
1133-0222-01
20
Washer
9699-0060-02
21
Screw
9987-5016-16
22
Shift lever
1133-0419-01
23
Split pin
9599-0070-02
25
Knob
1133-0153-01
26
Spring
1133-0621-01
27
Belt Guide
1133-0605-01
28
Nut
9743-3621-32
29
Pedal, brake/clutch
1133-0863-01
30
Clevis Pin
1133-0612-01
31
Return Spring
1133-0240-01
32
Flat washer
1133-0010-01
33
Elastic Pin
9598-0002-02
34
Pedal pad
1133-0090-01
35
Idler arm
1133-0682-01
36
Bolt
1133-0887-01
37
Washer
9699-0078-02
38
Nut
9743-3621-32
39
Belt retainer
1133-0063-01
40
Idler pulley
1133-0470-01
41
Carr.Bolt
1133-0084-01
42
Nut
9743-3721-32
43
Clutch Rod
1133-0202-01
44
Brake Spring
1133-0862-01
45
Bolt
1133-0864-01
46
Nut
9743-3621-32
47
Clutch Spring
1133-0893-01
52
Spacer
1133-0412-01
53
Key
1133-0601-01
54
Flat washer
1133-0599-01
55
Flat washer
1133-0600-01
56
Retaining ring
1132-0021-01
57
Hub Cap
1133-0069-01
58
Tire
20 x 8.00-8
1133-0196-01
48B
Rimm
1133-0197-01
