Spare parts > ST S p A > Lawn Tractor > MT 585 L MT 585 L (2004) > Body
Back to

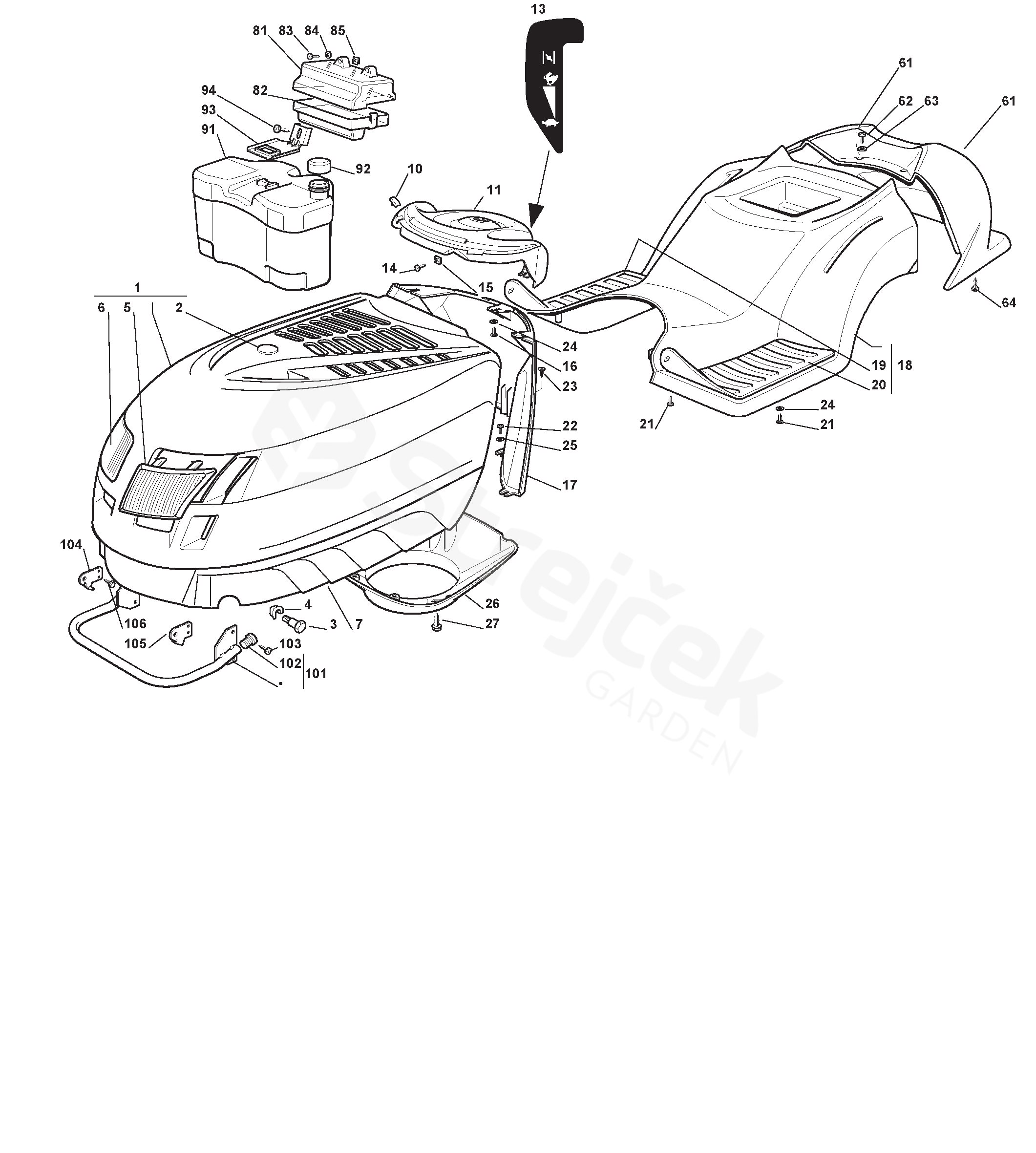

Body
MT 585 L MT 585 L (2004)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For MT 585 L (2004)
1 Upper Engine Hood Green 182076843/1
2 Plate Green 125547026/0
3 Pin 125510023/1
4 Plate 112436050/0
5 Left Grill 125410861/0
6 Right Grill 125410860/0
7 Lower Engine Hood 125076808/0
10 Grommet 125260000/0
13 Throttle Label 114357209/1
14 Screw 112735110/0
15 Plate 112437502/0
16 Screw 112735402/0
17 Black Dashboard Support 325785053/1
18 Wheels Cover Green 382110008/2
19 Right Foortboard Cover Junior 125110264/1
20 Left Footboard Cover 125110263/1
21 Screw 112735410/0
23 Screw 112728680/0
24 Washer 112523040/0
25 Washer 112523050/0
26 Conveyor 325108028/0
27 Screw 112728686/0
61 Cover Green 325110096/0
63 Washer 112521330/0
81 Upper Guard 125600020/0
82 Lower Guard 125600021/1
83 Screw 112728460/0
84 Washer 112521320/0
91 Fuel Tank 125735116/2
92 Cap 125795000/0
93 Support 325774258/0
101 Muffler Tube Guard 382869006/1
102 Push rod 118566110/0
103 Screw 112734995/0
104 Plate 325547089/0
105 Plate 325547091/0
106 Screw 112731580/0
