Spare parts > ST S p A > Lawn Tractor > AGRO 98 HG LIMITED EDITION AGRO 98 HG LIMITED EDITION (2012) > Transmission
Back to

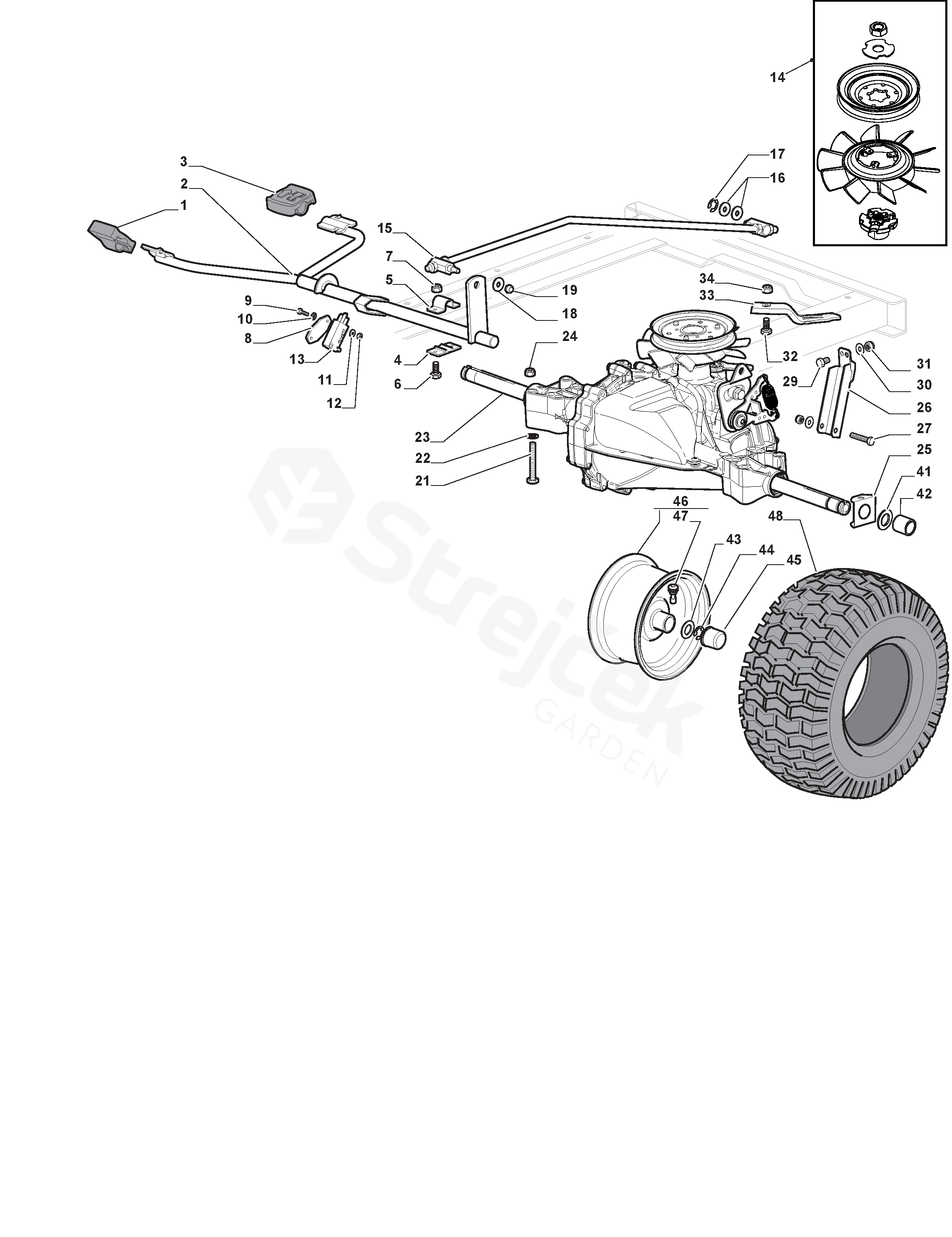

Transmission
AGRO 98 HG LIMITED EDITION AGRO 98 HG LIMITED EDITION (2012)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For AGRO 98 HG LIMITED EDITION (2012)
1 Clamp Cover Front 325110274/0
2 Gear Control Axle 382000574/0
3 Clamp Cover Rear 325110331/0
4 Support 325785350/0
5 Plate 325547231/0
8 Neutral Switch Fixing Plate 327546019/0
9 Screw 112735602/0
10 Washer 112540020/0
11 Grower 112581100/0
12 Nut 112290791/0
13 Microswitch 119410609/0
14 Fan Kit 118802723/0
15 Rod 382000573/0
16 Antifriction Washer 325670011/0
17 Benzing Ring 112000955/0
18 Washer 112523040/0
19 Nut 112154510/0
21 Screw 112691600/0
22 Washer 112521350/0
23 Rear Axle (Hydro-Gear T2-Adbf-2X3C-17X1) 118400919/2
24 Nut 112155000/0
25 Washer 325670026/0
26 Support 325785349/0
27 Screw 112691700/0
29 Screw 112792611/0
30 Washer 112523060/0
32 Screw 112791213/1
33 Lever 325318251/0
41 Washer 125670005/1
42 Spacer 125160055/0
44 Benzing Ring 112001010/0
45 Hub Cover
Standard Black Cover 		322110233/0
46 Rimm 382000597/0
47 Valve 125950000/0
