MBCP25-3 MBCP25-3 (2019)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

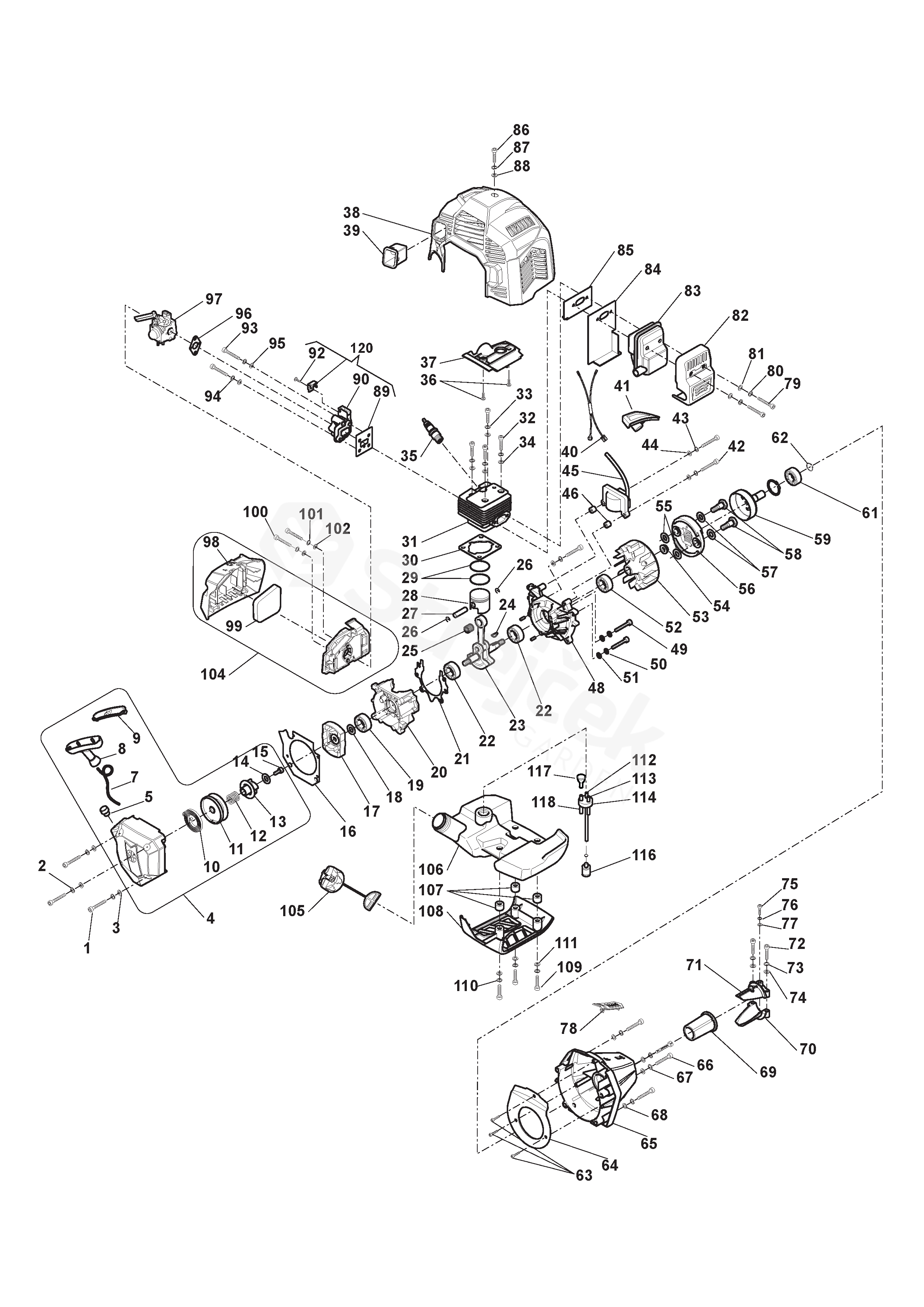

Other parts For MBCP25-3 (2019)

1	Screw	2132550
4	Starter Assembly	118803658/0
5	Eyelet	118803773/0
7	Starter cord	123234005/0
8	Starter Handle	118803746/0
9	Handle Cover	118803747/0
10	Starter Spring	118803507/0
11	Starter Pulley	118803630/0
12	Spring Starter	118803631/0
13	Ratchet wheel	118803632/0
15	Screw	6981425
16	Starter Gasket	118803670/0
17	Starter Cup	118803619/0
19	Seal Ring	118550599/0
20	Crankcase, Starter Side	118803610/0
21	Crankcase Gasket	118803621/0
22	Needle Bearing	3112240
23	Crankshaft assy	118803629/0
24	Flywheel Key	3151050
25	Needle Bearing	118800997/0
26	Washer, Piston Pin	118550590/0
27	Piston Pin	118803606/0
28	Piston	118803607/0
29	Piston Ring	123204016/0
30	Cylinder Gasket	118803654/0
31	Cylinder	118803626/0
35	Spark Plug	3210024
36	Screw	112726388/0
37	Deflector	118803662/0
38	Cylinder Cover	118803661/0
39	Deflector	118803751/0
40	Wire	118803624/0
41	Spark Plug Cover	118803660/0
45	Electronic Coil	118803623/0
46	Spacer	118803659/0
48	Crankcase, Flywheel Side	118803655/0
53	Flywheel	118803622/0
54	Nut	123120004/0
55	Flat washer	2312080
56	Clutch Assy	118803620/0
57	Washer	118803605/0
58	Screw	123878111/0
59	Clutch Drum Assy	118803625/0
61	Ball Bearing	3112040
62	Seeger	112609200/0
63	Screw	112735654/0
64	Protection	118803667/0
65	Transmission Case	118803663/0
66	Screw	9950-0530-16
69	Rubber sleeve	118803664/0
70	Lower Clamp	118803666/0
71	Upper Clamp	118803665/0
73	Washer	2321050
75	Screw	2135020
78	Plate, Model Name	118803668/0
79	Screw	2135250
82	Muffler Protection	118803611/0
83	Muffler	118803672/0
84	Muffler Gasket	118803627/0
85	Gasket Cylinder-Muffler	118803673/0
86	Screw	2135040
89	Intake Manifold Gasket	118803618/0
90	Intake Manifold	118803628/0
92	Screw	118800853/0
96	Carburetor Gasket	118803649/0
97	Carburetor	118805148/0
98	Airbox Cover	118803657/0
99	Air Filter Sponge	118803744/0
100	Screw	2135110
101	Grower	112581500/0
102	Flat washer	2312090
104	Air Filter Assembly	118803656/0
105	Fuel Cap	118803549/1
106	Fuel Tank	118803669/0
107	Rubber bump	118803712/0
108	Fuel Tank Protection	118803671/0
112	Fuel Tube	118803713/0
113	Return Fule Tube	118803714/0
114	Retainer	118803106/0
116	Fuel Filter	118800199/0
117	Air Valve	118804594/0
118	Air Tube	118804595/0
120	Intake Manifold Kit	118805057/0
