Spare parts > ST S p A > Trimmer/Brushcutter > MBCP42-2 MBCP42-2 (2017) [289321054/KOC] > Engine
Back to
Engine
MBCP42-2 MBCP42-2 (2017) [289321054/KOC]

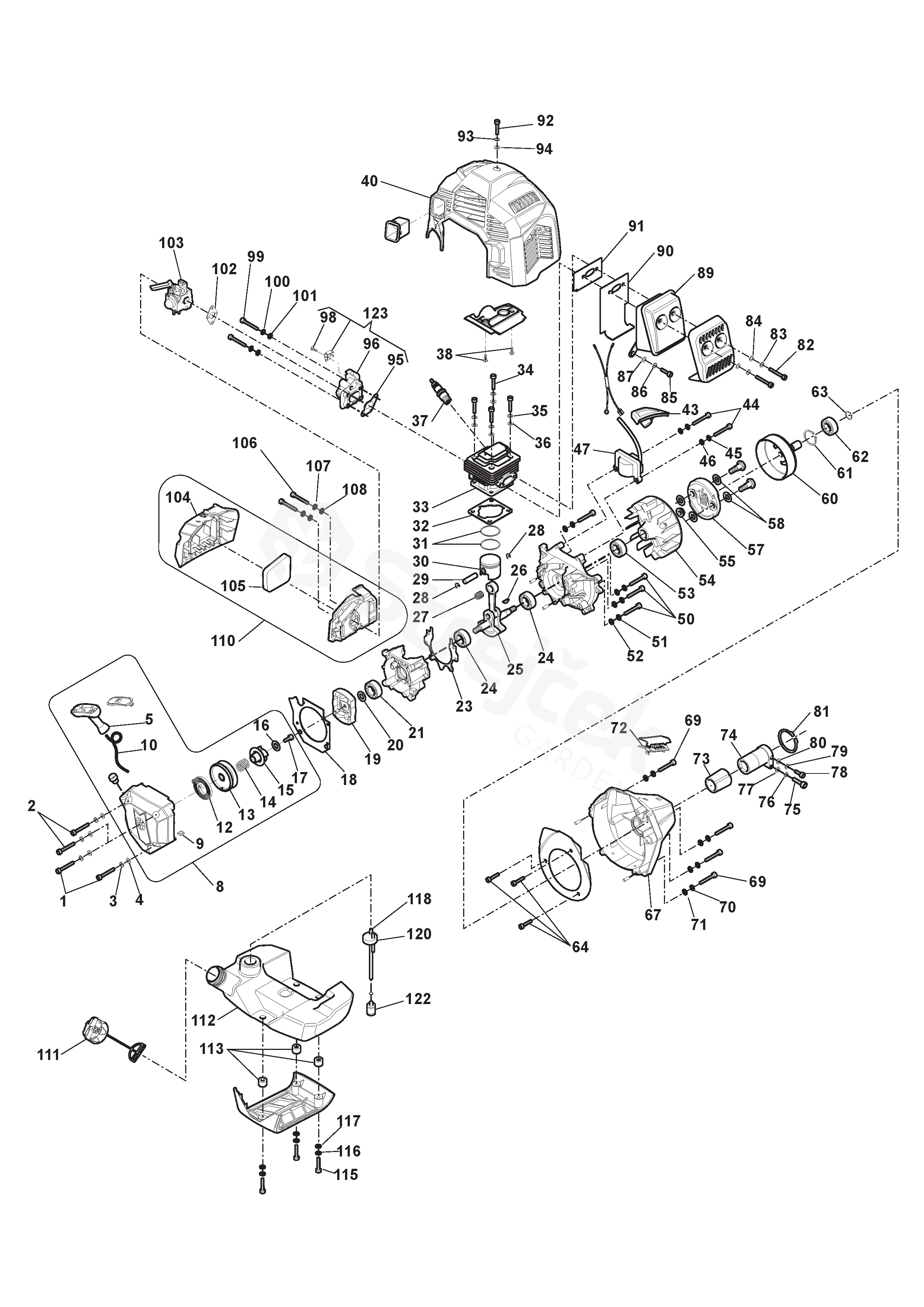

Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For MBCP42-2 (2017) [289321054/KOC]
1 Screw 2132550
5 Starter Handle 118803746/0
8 Starter Assy 118803745/0
9 Nut 2461030
10 Starter cord 118803692/0
12 Starter Spring 118803693/0
13 Starter Pulley 118803710/0
14 Spring 118803694/0
15 Ratchet wheel 118803711/0
16 Washer 112523020/0
17 Screw 112728450/0
18 Gasket 118803755/0
19 Start reel 118803678/0
20 Washer 112523060/0
21 Seal Ring 118550599/0
23 Crankcase Gasket 118803683/0
24 Bearing 119216038/0
25 Crankshaft 118803686/0
26 Flywheel Key 3151050
27 Bearing 123235000/0
28 Washer, Piston Pin 118550590/0
29 Piston Pin 118803685/0
30 Piston 118803687/0
31 Piston Ring 118803684/0
32 Cylinder Gasket 118803674/0
33 Cylinder 118803703/0
37 Spark Plug 3210024
38 Screw 112726388/0
40 Cylinder Cover 118803749/0
43 Spark Plug Cover 118803748/0
47 Electronic Coil 118803690/1
50 Screw 2135050
53 Seal Ring 118801197/0
54 Flywheel 118803689/1
55 Nut 112154210/0
57 Clutch Ass.Y 118803679/0
58 Washer 112521360/0
60 Clutch Drum 118803697/0
61 Seeger 112610800/0
63 Seeger 112609200/0
64 Screw 112735654/0
67 Transmission Support Case 118803752/0
72 Plate, Model Name 118803738/0
73 Bumper 118802493/0
74 Sleeve 118802494/0
75 Screw 2132180
76 Grower 112582101/0
77 Washer 112521330/0
78 Screw 112727796/0
89 Muffler 118805149/0
90 Muffler Gasket 118803706/0
91 Muffler Gasket 118803676/0
95 Gasket 118803675/0
96 Admitting pipe 118803708/0
98 Screw 6981268
100 Grower 112581500/0
101 Flat washer 2312090
102 Carburettor Gasket 118550587/0
103 Carburetor 118803709/0
104 Air Cleaner Cover 118803743/0
105 Air Filter Sponge 118803744/0
106 Screw 112760490/0
110 Air Filter Assy 118803742/0
111 Fuel Cap 118803549/1
112 Fuel Tank Assy 118803754/0
113 Rubber bump 118803712/0
118 Fuel Tube 118803695/0
120 Retainer 118803106/0
122 Fuel Filter 118800199/0
123 Intake Manifold Kit 118805059/0
