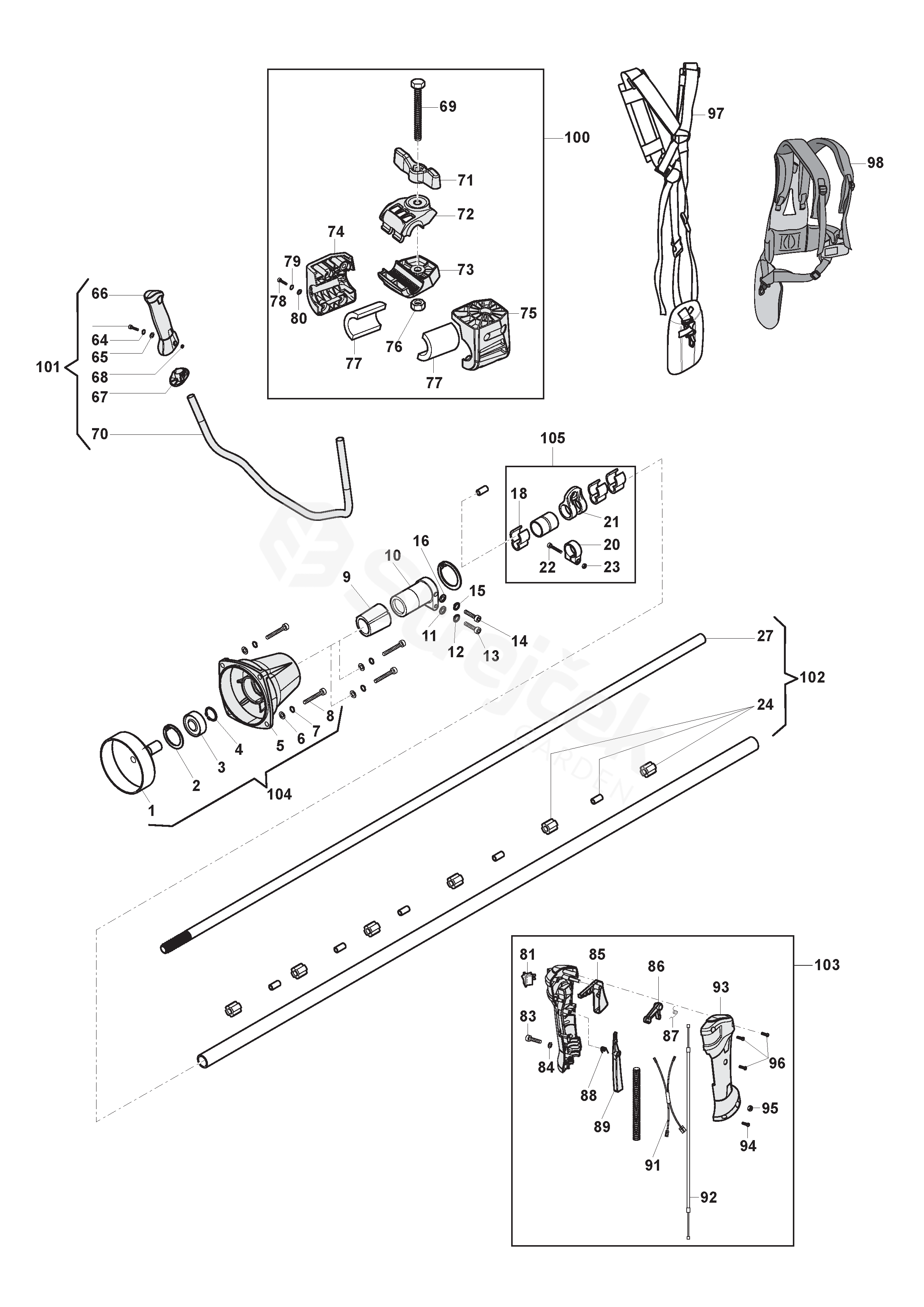

BK 43 ED BK 43 ED (2018) [288321010/ALX]

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For BK 43 ED (2018) [288321010/ALX]

1	Clutch Drum	118802495/0
2	Seeger	112610800/0
3	Bearing	119216048/0
4	Seeger	112609200/0
5	Output Block	118802492/0
9	Bumper	118803487/0
10	Clamping Sleeves	118803488/0
11	Washer	112521330/0
13	Screw	2132180
14	Screw	112735654/0
15	Washer	112521320/0
18	Wire Buckle	118802596/0
20	Ring	118802588/0
21	Harness Support	118802587/0
22	Screw	112760475/0
23	Nut	112291000/0
24	Transmission Pipe	118803480/0
27	Transmission Shaft	118802457/0
66	Left Handgrip	118802563/0
67	Handgrip Support	118802564/0
69	Screw	112691900/0
70	Handlebar	118802482/0
71	Knob	118802489/0
72	Handle Cover	118802485/0
73	Lower Handle Cover	118802486/0
74	Handlebar holder, Right	118802488/0
75	Handlebar holder, Light	118802487/0
76	Nut	112293200/0
77	Gasket	118803489/0
81	Switch	118800202/0
83	Screw	2123110
85	Trigger	118802558/0
86	Adjustment Lever	118802559/0
87	Torsion Spring	118802560/0
88	Torsion Spring	118802562/0
89	Safety Lever	118802561/0
91	Earth Cable	118802598/0
92	Throttle Cable	118802483/0
93	Handle Cover, Right Part	118802556/0
94	Screw	112735105/0
95	Nut	112154330/0
96	Screw	123878020/0
97	Harness	118801312/1
98	Harness	118804015/1
100	Handgrip Support Ass.Y	118805020/0
101	Handgrip Support Ass.Y	118805014/0
102	Trasmission Pipe Ass.Y Ø 28	118805021/0
103	Bike Handle Assy	118805022/0
104	Clutch Drum Assy	118805143/0
105	Ring holder Assy	118805144/0
