ST S p A
>
Trimmer/Brushcutter
>
BK 45 E BK 45 E (2019)
>
Gear case
Back to
BK 45 E
BK 45 E (2019)

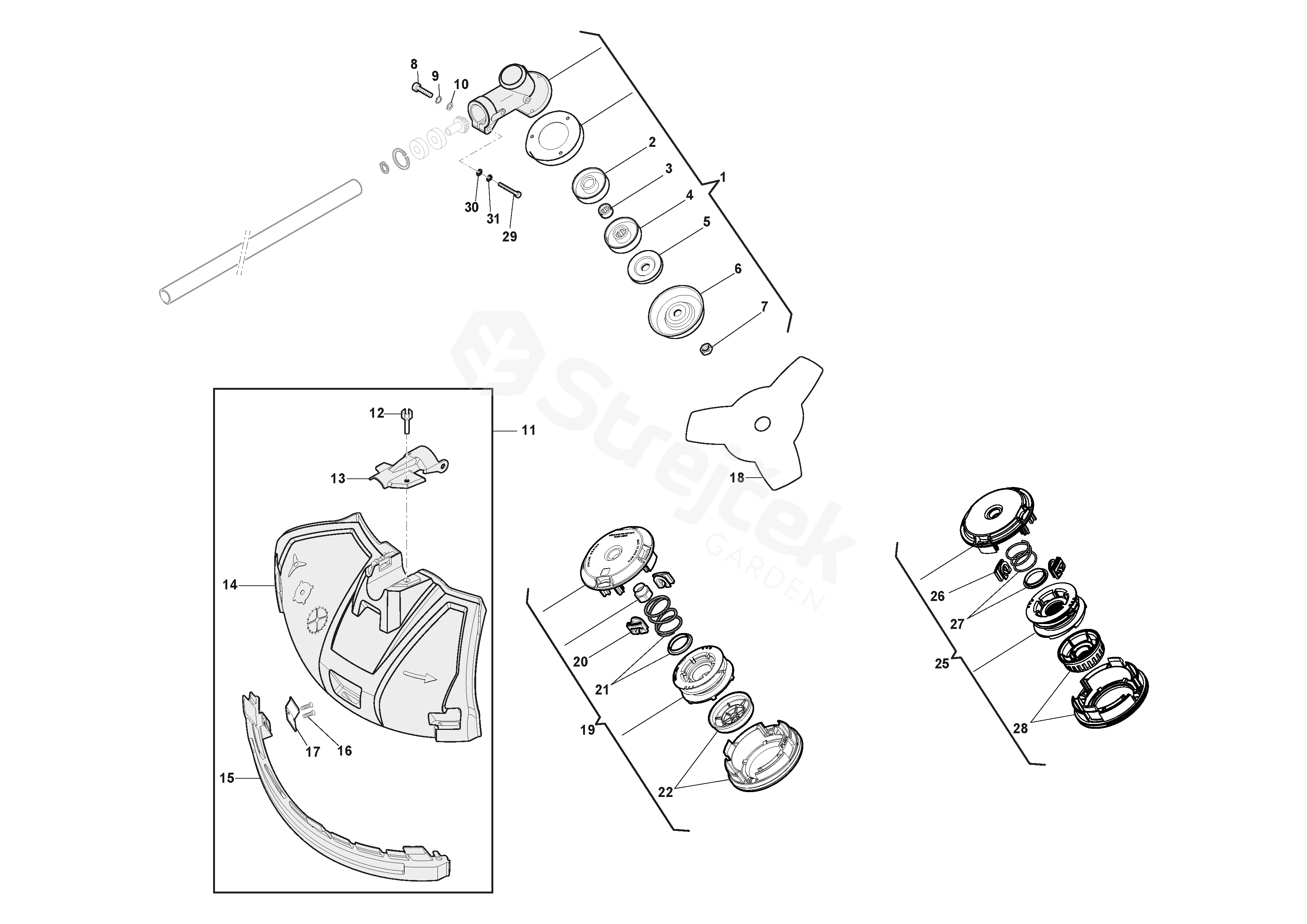

Gear case
BK 45 E
BK 45 E (2019)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
BK 45 E (2019)
1
Gear case assy
118802460/0
2
Shaft Collar
118802467/0
3
Use 3641700/1
ø26 [ø13,7 int. - ø21 ext. ]
1L3641700/1
4
Plate
118802464/0
5
Plate
118802465/0
6
Cover
118802466/0
7
Nut
2452090
8
Screw
2132180
9
Grower
112582100/0
10
Washer
112521330/0
11
Safety cover Ass.Y
118805018/0
12
Screw
118802579/0
13
Plate
118802480/0
14
Safety Cover
118802323/1
15
Guard
118802580/1
16
Screw
123878121/0
17
Line Cutter Blade
118802578/0
18
3T Blade
1911-9146-01
19
Line Cutter Head
Bump & Work
1911-9227-01
21
Spring
118804889/0
22
Cover + Knob
118804888/0
25
Line Cutter Head
Bump & Work - Easy Load
1911-9228-01
26
Line Retainer
118804890/0
27
Spring
118805261/0
28
Cover + Knob
118805263/0
29
Screw
2132110
30
Washer
112521331/0
31
Grower
112582101/0
