ST S p A
>
Trimmer/Brushcutter
>
BMD 3600 BMD 3600 (2003)
>
Engine
Back to
BMD 3600
BMD 3600 (2003)
Engine
BMD 3600
BMD 3600 (2003)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
BMD 3600 (2003)

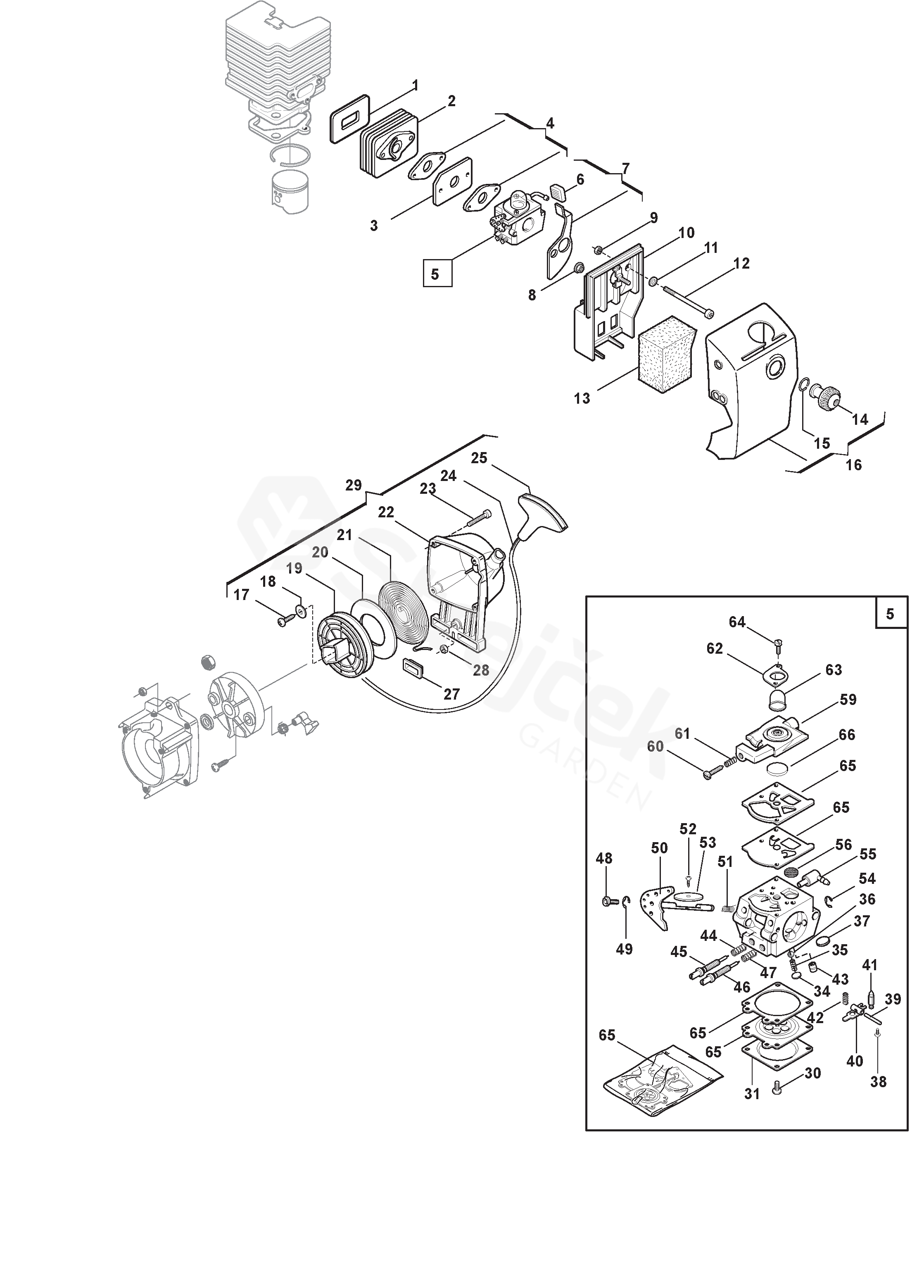

1
Intake Manifold Gasket
3724060
2
Intake Manifold
3749540
3
Heat Block
3785040
4
Intake Carburator Gasket
3724020
5
Carburetor
4253100
6
Knob
3745550
7
Choke Lever
8613450
8
Bushing
2382150
9
Bushing
2382140
10
Air Filter Holder
3749608
11
Flat washer
2312090
12
Screw
2135210
13
Air Filter
3781420
14
Cover Cap Turbo
8749615
15
Snap Ring
3356030
16
Air Filter Cover
4251178
17
Screw
2123100
18
Washer
3613420
19
Starter Pulley
4562220
20
Disc For Starter Spring
3723640
21
Starter Spring
4611480
22
Starter Assy Yellow
8562160
23
Screw
2135040
24
Starter cord
3784030
25
Starter Handle
3750067
27
Grommet
3745530
28
Nut
2432030
29
Starter Assy
4251180
30
Screw
2652430
31
Cover
3611510
34
Plug
3613640
35
Retainer
3356080
36
Small Filter
3781460
37
Welch Plug
3613630
38
Screw
2652610
39
Fulcrum Pin
3640820
40
Control Lever
3612470
41
Inlet Needle
3630210
42
Spring
3654080
43
Valve
3642480
44
Spring
3654100
45
Screw
2653360
46
Screw
2653370
47
Spring
3654110
48
Swivel
3642470
49
Retainer
3351090
50
Shutter Shaft
3642460
51
Spring
3654120
52
Screw
2652390
53
Shutter
3613750
54
Retainer
3351060
55
Engelsk Benämning
3749670
56
Fuel Filter
3781450
59
Pump Cover
3660490
60
Screw
2653310
61
Spring
3654140
62
Cover Primer Pump
3613730
63
Air Purge Pump
3744740
64
Screw
2653350
65
Diaphragm Gasket Set
8724150
66
Pump Cover Valve
3744750
