Spare parts > ST S p A > Trimmer/Brushcutter > BMD 3600 BMD 3600 (2003) > Handle-transmission
Back to

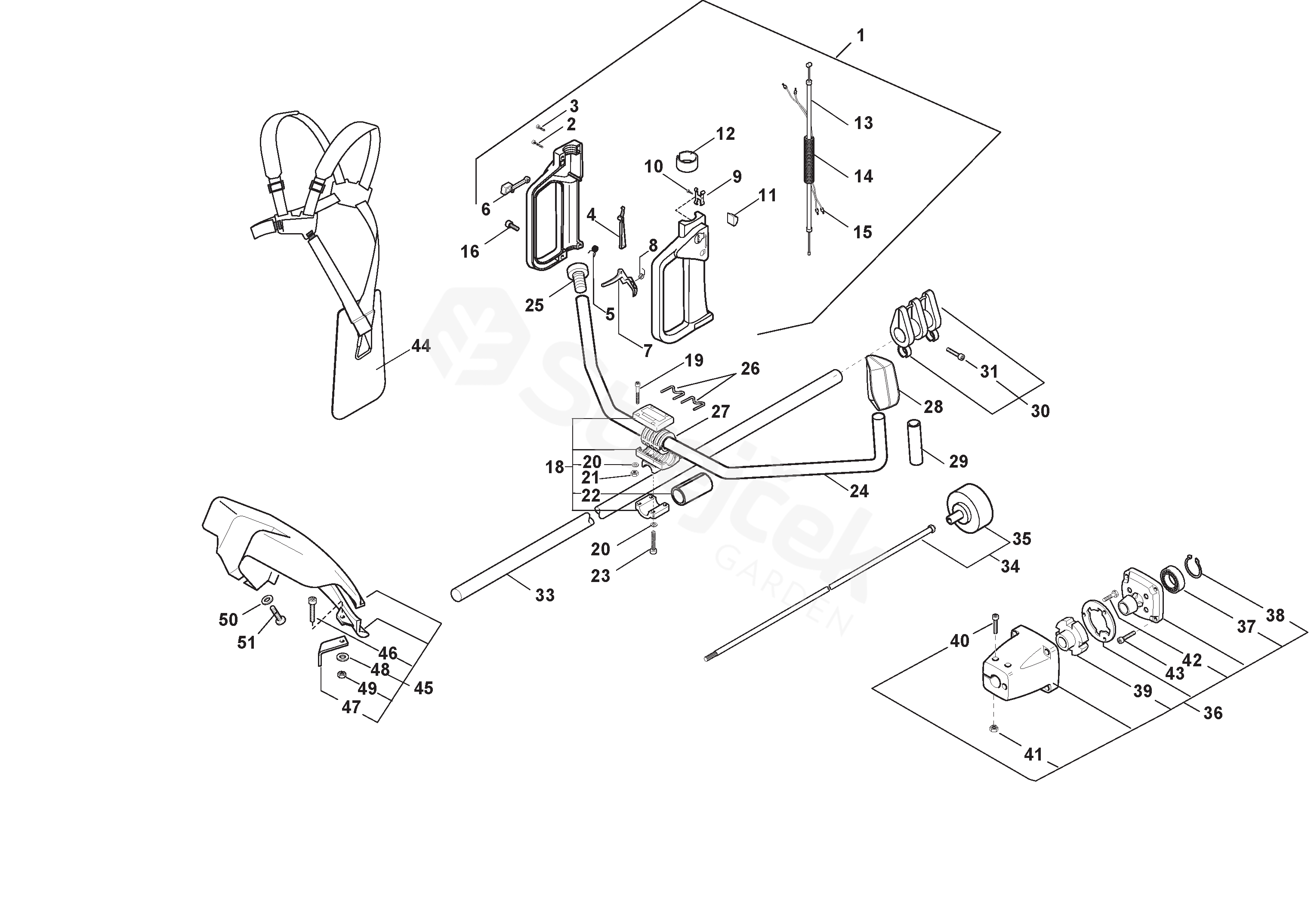

Handle-transmission
BMD 3600 BMD 3600 (2003)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For BMD 3600 (2003)
1 Handle Assy 8562611
2 Screw 2123030
3 Screw 2135050
4 Safety Lever 3743475
5 Spring 3654300
6 Stop throttle lever 3743485
7 Throttle Lever 3743465
8 Spring 1L3654270/1
9 Stop Plate 3612710
10 Screw 2123070
11 Knob 3749270
12 Reduction Ring 3749910
13 Throttle Cable 4251571
14 Wire Sheath 3782920
15 Stop Wire 8211130
16 Screw 2123100
18 Support 4250390
19 Screw 2135120
20 Flat washer 2312090
21 Nut 112154330/0
22 Rubber sleeve 3721340
23 Screw 2123110
24 Handle Bar Assy 8620510
25 Cup 3749860
26 Handle Lock Duplex 3657470
27 Shock Absorber 3744160
28 Hand Guard 4561640
29 Knob 3744610
30 Harness Support 8562510
31 Screw 2123140
33 Transmission Pipe Assy 8251201
34 Transmission Shaft Assy 4251400
35 Clutch Drum Assy 4121861
36 Support Transmission Assy 8541000
37 Ball Bearing 3112170
38 Seeger Ring 3353080
39 Shock Absorber 3744260
40 Screw 2135130
41 Nut 2432040
42 Screw 2135040
43 Screw 2135160
44 Harness 4253440
45 Safety Cover Assy 8562763
46 Screw 2135030
47 Line Cutter Blade 3614210
48 Washer 2312150
49 Nut 2432040
50 Washer 2312150
51 Screw 2135060
