Spare parts > ST S p A > Trimmer/Brushcutter > G 442 G 442 (2003) > Handle-transmission
Back to

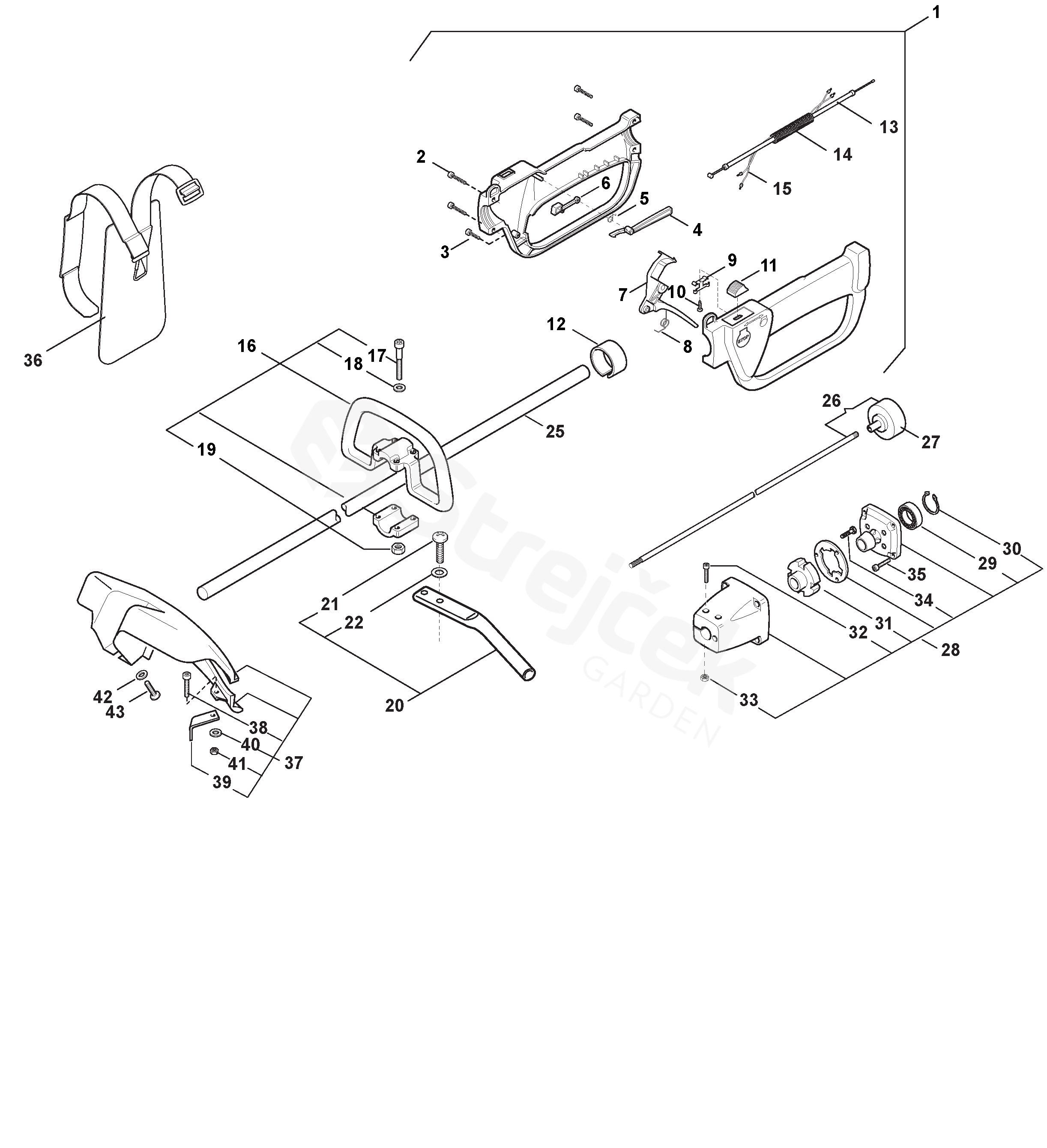

Handle-transmission
G 442 G 442 (2003)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For G 442 (2003)
1 Rear Handgrip Assy 8562610
2 Screw 2123030
3 Screw 2123100
4 Safety Lever 3743475
5 Spring 3654300
6 Stop throttle lever 3743485
7 Throttle Lever 3743465
8 Spring 1L3654270/1
9 Stop Plate 3612710
10 Screw 2123070
11 Knob 3749270
12 Reduction 3749920
13 Throttle Cable 4251780
14 Wire Sheath 3786030
15 Stop Wire 8211110
16 Handgrip 8253200
17 Screw 2135050
18 Flat washer 2312090
19 Nut 2412030
20 Barrier Pipe Assy. 8620480
21 Screw 2123140
22 Flat washer 2312090
25 Transmission Pipe Assy 8251201
26 Transmission Shaft Assy 4251400
27 Clutch Drum Assy 4121861
28 Support Transmission Assy 8541000
29 Ball Bearing 3112170
30 Seeger Ring 3353080
31 Shock Absorber 3744260
32 Screw 2135130
33 Nut 2432040
34 Screw 2135040
35 Screw 2135160
36 Harness 4253440
37 Safety Cover Assy 8562763
38 Screw 2135030
39 Line Cutter Blade 3614210
40 Washer 2312150
41 Nut 2432040
42 Washer 2312150
43 Screw 2135060
