OKAY RT 3016 Li OKAY RT 3016 Li (2016)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

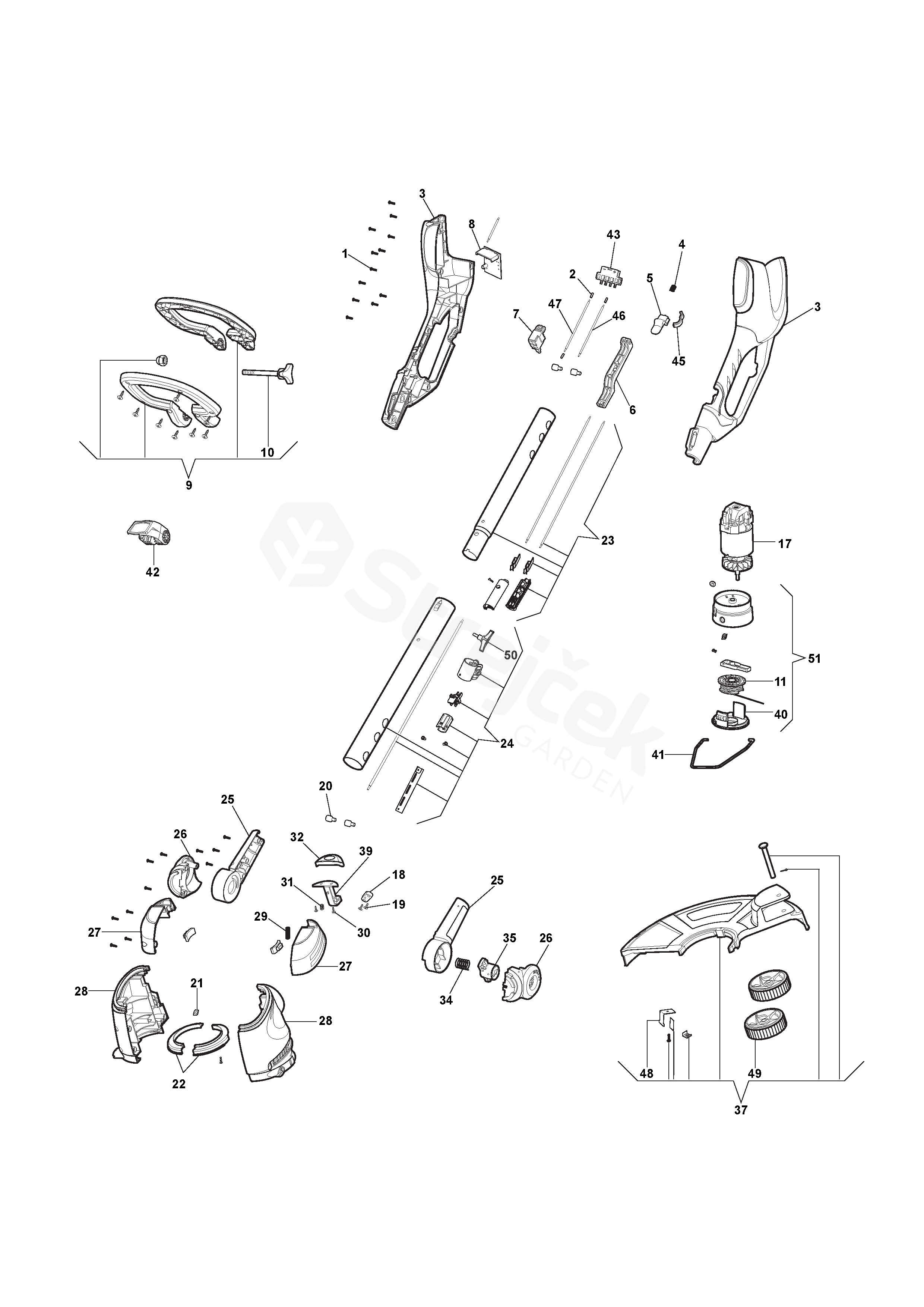

Other parts For OKAY RT 3016 Li (2016)

1	Screw	112735645/0
2	Heat shrinkable tube	118804114/0
3	Handle Assy, White	118803381/0
4	Spring	118803228/0
5	Button, Yellow	118803443/0
6	Switch	118803821/0
7	Switch	118803342/0
8	PCB	118803336/1
9	Front Handle Assy, Yellow Knob	118810451/0
10	Knob, Yellow	118803455/0
11	Spool with Line	1911-9223-01
17	Engine	118803467/0
18	Clamp	118803321/0
19	Screw	112727810/0
20	Terminal	118803230/0
21	Nut	122131758/0
22	Ring	118803372/0
23	Upper shaft Assy	118804199/0
24	Lower shaft Assy, Yellow Knob	118804200/0
25	Housing, White	118803459/1
26	Cover, Red	118804659/0
27	Cover	118803374/0
28	Housing, White	118803373/0
29	Spring	118803288/0
30	Screw	112735641/0
31	Spring	118803289/0
32	Button	118803781/0
34	Spring	118810449/0
35	Button, Yellow	118804195/0
37	Guard Assy, Black Wheels	118803353/1
39	Button Lever	118804660/0
40	Spool Cover	118803323/0
41	Guide	118803397/0
42	Clamp	118803429/0
43	Insert block	118803304/0
45	Plate-Red	118804192/0
46	White Wire	118804193/0
47	Black Wire	118804194/0
48	Line Cutter Blade	118804196/0
49	Wheel	118804198/0
50	Knob, Yellow	118803425/0
51	Line Cutter Head Assy	118804661/0
