Spare parts > ST S p A > Trimmer/Brushcutter > XR 9 JEL XR 9 JEL (2008) > Electric grass trimmer
Back to

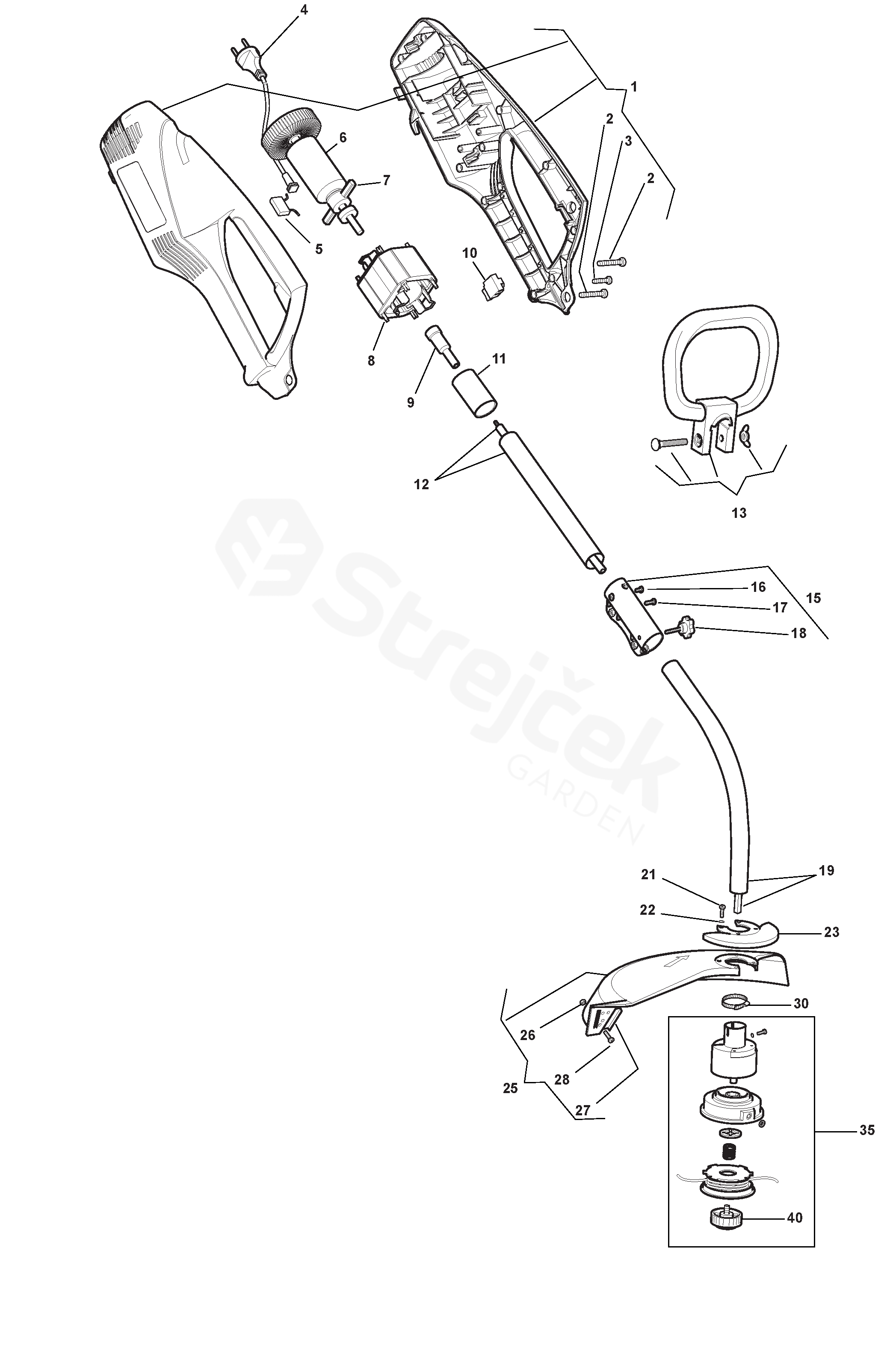

Electric grass trimmer
XR 9 JEL XR 9 JEL (2008)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For XR 9 JEL (2008)
1 Semi-Handgrips Red 6985073
2 Screw 6985034
3 Screw 6985051
4 Feed Line With Plug 6985065
5 Capacitor 6985033
6 Armature 6985066
7 Brushhold 6985074
8 Field 6985075
9 Connecting Head Assy 6985070
10 Switch 6985071
11 Spacer 6985064
12 Assy Transm. Tube+Flex 6985080
13 Front Handgrip Assy 6985092
15 Clamp 6985093
16 Screw 6985060
17 Screw 6985061
18 Knob 6985059
19 Assy Transm. Tube+Flex 6985079
21 Screw 6985063
22 Washer 6985058
23 Collar 6985052
25 Safety Cover Assy 6985090
26 Nut 6985038
27 Line Cutter Blade 6985054
28 Screw 6985036
30 Clamp 6985089
35 Cutting Line Assy 6985095
40 Knob 6985085
