ST S p A
>
Chainsaw
>
MCSWD25 MCSWD25 (2018) [202512254/K18]
>

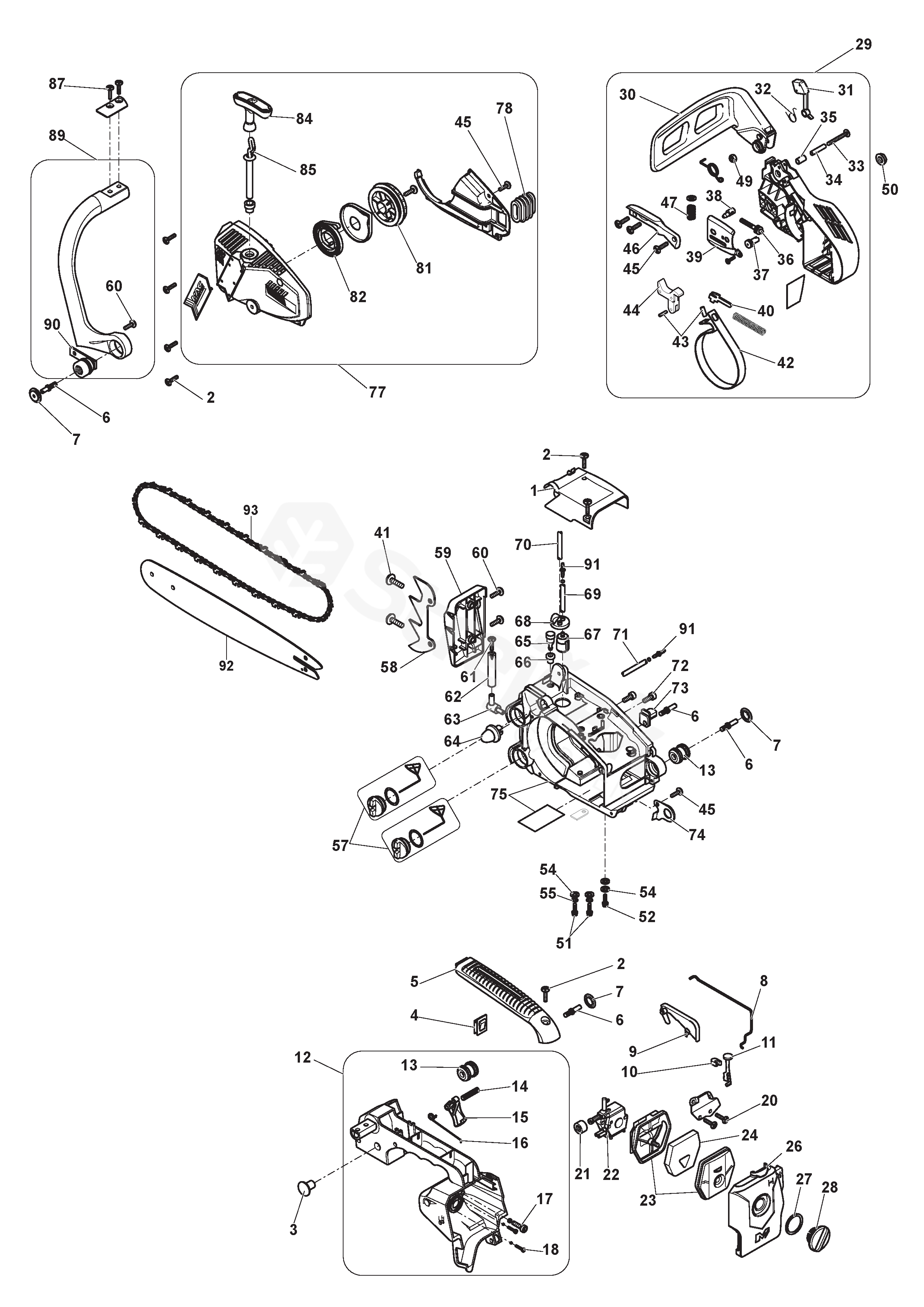

Housing
Back to
MCSWD25
MCSWD25 (2018) [202512254/K18]
Housing
MCSWD25
MCSWD25 (2018) [202512254/K18]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
MCSWD25 (2018) [202512254/K18]
1
Upper Cover Yellow
118801579/0
2
Screw
112728099/1
3
Cap, Black
123790021/0
4
Switch
118800202/0
5
Handle, Upper Part, Grey
118801584/0
6
Screw
123878093/0
7
Cap, Black
123790022/0
8
Throttle Rod
123835002/0
9
Safety lever, Yellow
123315096/0
10
Grommet Air-Lever
123275025/0
11
Air Lever, Black
123315093/0
12
Handle Assy
183300023/0
13
Shock Absorber
123275027/0
14
Elastic Pin
123510098/0
15
Throttle Lever, Yellow
123315095/0
16
Spring
123430599/0
17
Pipe Mix
123867022/0
18
Pipe
123867021/0
20
Screw
123878086/0
21
Sponge Gasket
118801153/0
22
Carburetor
123054034/0
23
Air Filter Support + Cover
183040000/0
24
Air Filter
123220014/0
26
Rear Cover
118801590/0
27
Washer
123657012/0
28
Knob
123593507/0
29
Brake Assembly
118803602/0
30
Hand Guard
118801594/0
31
Balance Weigth
123080002/0
32
Spring
123430572/0
33
Screw
123878090/0
34
Bushing
123044219/0
35
Bushing
123044220/0
36
Screw
123878092/0
37
Pin
123510097/0
38
Nut
123796008/0
39
Bar Plate
123311010/0
40
Lever
123315094/0
42
Brake Band
123448005/0
43
Needle
123665004/0
44
Chain Brake Lever
183315052/0
45
Screw
123878088/0
47
Front Guard Spring
118800745/0
49
Nut
112154320/0
50
Nut
123120010/0
51
Screw
2135180
52
Screw
2135180
54
Washer
112521320/0
55
Grower
112581500/0
57
Cap Ass'Y
118803527/0
58
Spike
118550596/0
59
Front Cover, Black
118801598/0
60
Screw
112728440/0
61
Screw
112728124/0
62
Pickup Oil
118800255/0
63
Nozzle
118801162/0
64
Primer
118804231/0
65
Breather Valve Assy
183875003/0
66
Grommet
123275024/0
67
Fuel Pickup Assy
183520007/0
68
Grommet
123650004/0
69
Pipe
123867019/0
70
Pipe
123867019/0
71
Pipe
123867019/0
72
Screw
112728124/0
73
Chain Guard
123202007/0
74
Clamp
123208412/0
75
Crankcase Ass.Y
118802270/0
77
Starter Assy, Black
118801601/0
78
Grommet
123275026/0
81
Starter Pulley
123604011/0
82
Starter Spring
123430594/0
84
Starter Handle
123300013/0
85
Starter cord
123234005/0
87
Screw
112728450/0
89
Handle
183105000/0
90
Shock Absorber
123275027/0
91
Pipe Connection
123650005/0
92
Guide Bar 12"-3/8"-0,050"
123900362/0
93
Chain 12"-3/8"-0,050"-45E
1519-9112-01
