Spare parts > ST S p A > Chainsaw > CP 370 14 3/8 CP 370 14 3/8 (2003) > Crankshaft and cylinder
Back to

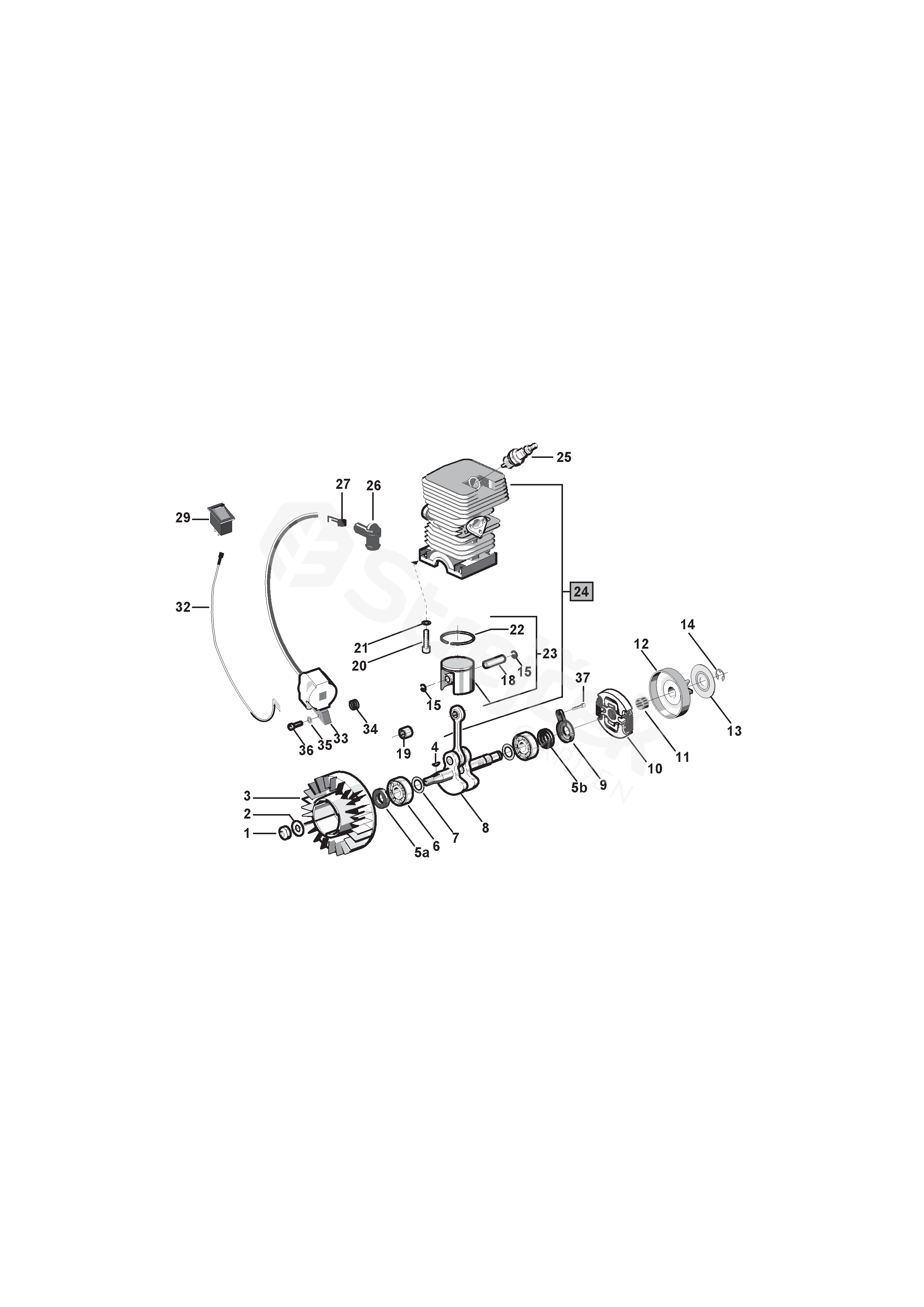

Crankshaft and cylinder
CP 370 14 3/8 CP 370 14 3/8 (2003)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For CP 370 14 3/8 (2003)
1 Nut 2432050
2 Flat washer 2312080
3 Flywheel 4541210
4 Flywheel Key 3151010
5 Seal Ring
5a 		3121071
6 Ball Bearing 3112030
7 Washer 3614480
8 Crankshaft 4251960
9 Oil Pump Cap 3750311
10 Clutch Ass.Y 3L4252200/1
11 Needle Bearing 3114190
12 Clutch Drum 4121208
13 Washer 3612620
14 Circlip 3351110
15 Circlip Ring 3356050
18 Piston Pin 3158260
19 Needle Bearing 3116100
20 Screw 2135030
21 Washer 2330020
22 Piston Ring Ø 39 3123220
23 Piston Assy 3L8541360/1
24 Cylinder - Piston Ass'Y 3L8541370/1
25 Spark Plug 3210024
26 Spark Plug Cap 4252550
27 Spark Plug Spring 3657050
29 Stop Switch 3210970
32 Ground Cable 3211380
33 Electronic Coil 3L3211350/1
34 Spring 3654480
35 Washer 2321150
36 Screw 2123140
37 Screw 2123020
