Spare parts > Gardena > LAWN MOWERS > ELECTRIC LAWNMOWER POWER MAX 32 E ELECTRIC LAWNMOWER POWER MAX 32 E, 4073, until 2018 > PRODUCT COMPLETE
Back to

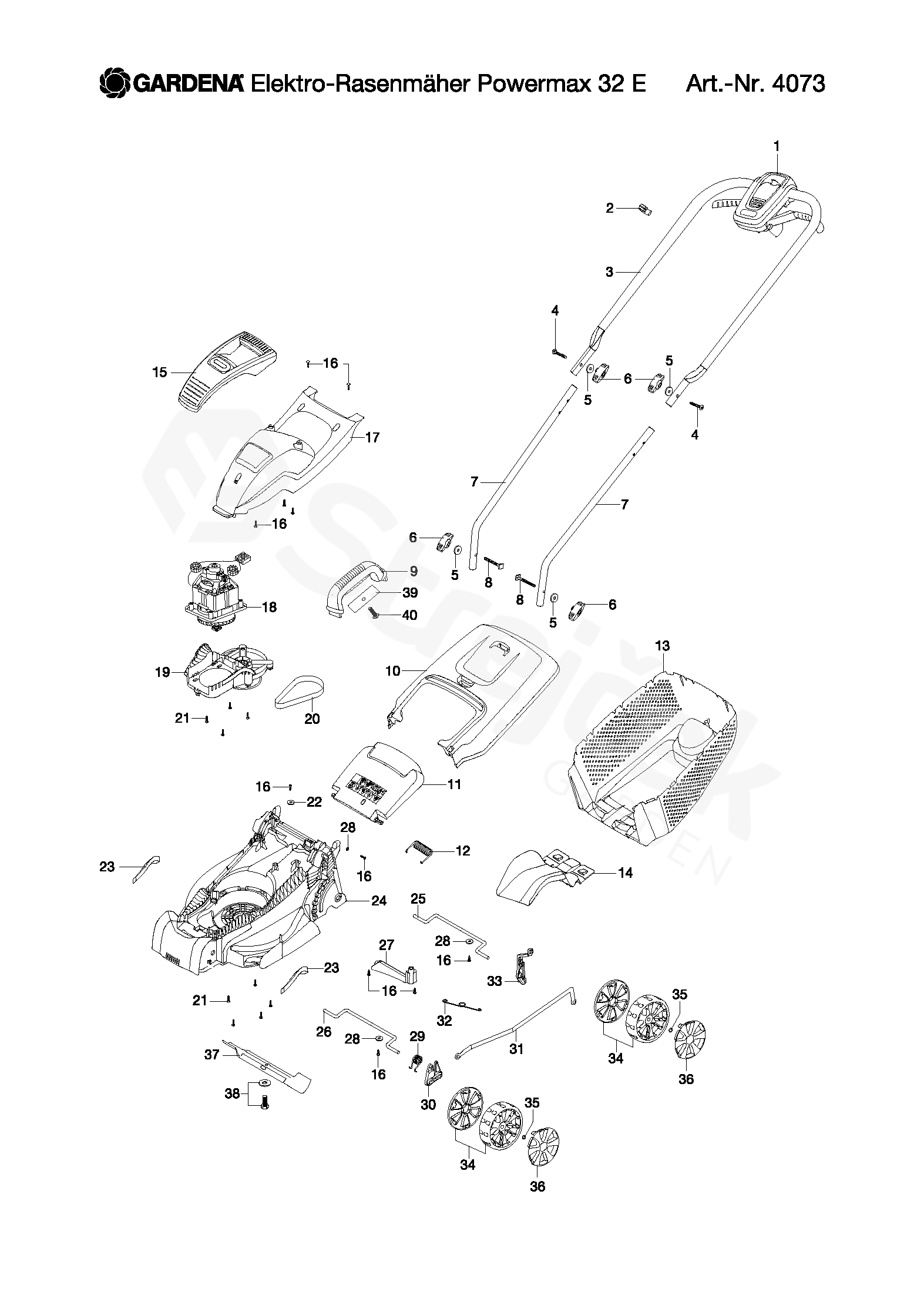

PRODUCT COMPLETE
ELECTRIC LAWNMOWER POWER MAX 32 E ELECTRIC LAWNMOWER POWER MAX 32 E, 4073, until 2018
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ELECTRIC LAWNMOWER POWER MAX 32 E, 4073, until 2018
1 SWITCHBOX ASSY CH
58-50.350.01, CH 		585035001
2 CLIP PACK 2
57-72.984.01 		577298401
3 HANDLE ASSY CH
586 39 58-01, CH 		586395801
4 BOLT
62551-49.198.01 		514919801
5 WASHER
62551-40.266.00 		514026600
6 KNOB
62552-29.006.01 		522900601
7 HANDLE
62551-07.626.00 		510762600
8 BOLT
51-07.618.00 		510761800
10 LID
62552-29.013.01 		522901301
11 FLAP
62552-29.018.01 		522901801
12 SPRING
62551-07.619.00 		510761900
13 GRASSBAG
62552-29.017.01 		522901701
14 TONGUE
62552-29.135.01 		522913501
15 HANDLE ASSY
58-63.957.01 		586395701
16 KIT
62552-29.009.01 		522900901
17 COVER
58-61.034.01 		586103401
18 MOTOR ASSY 4073-00.900.01 - since 2015
4073-00.900.01 		579867501
19 BASEPLATE
62551-07.603.00 		510760300
20 BELT
62551-07.605.00 		510760500
21 SCREW
62552-29.019.01 		522901901
22 LOOSE PARTS KIT
62551-07.621.00 		510762100
23 FILTER
62551-07.617.00 		510761700
24 DECK
58-61.031.01 		586103101
25 AXLE
58-64.368.01 		586436801
26 AXLE
58-64.369.01 		586436901
27 DECK
62552-29.028.01 		522902801
28 WASHER
62552-29.022.01 		522902201
29 SPRING
58-64.373.01 		586437301
30 SPACER
62552-29.031.01 		522903101
31 TIE BAR
58-64.370.01 		586437001
32 SPRING
58-64.371.01 		586437101
33 LEVER
62552-29.023.01 		522902301
34 WHEEL KIT
58-64.008.01 		586400801
35 WASHER
62552-29.033.01 		522903301
36 WHEEL
58-61.032.01 		586103201
37 BLADE
4080-00.701.00 		525632601
38 BOLT
62551-07.609.00 		510760900
9,39,40 HANDLE
62552-29.012.01 		522901201
