Gardena
>
LAWN MOWERS
>
PETROL LAWNMOWER 46 V PETROL LAWNMOWER 46 V, 4044, until 2013
>
PRODUCT COMPLETE
Back to
PETROL LAWNMOWER 46 V
PETROL LAWNMOWER 46 V, 4044, until 2013
PRODUCT COMPLETE
PETROL LAWNMOWER 46 V
PETROL LAWNMOWER 46 V, 4044, until 2013

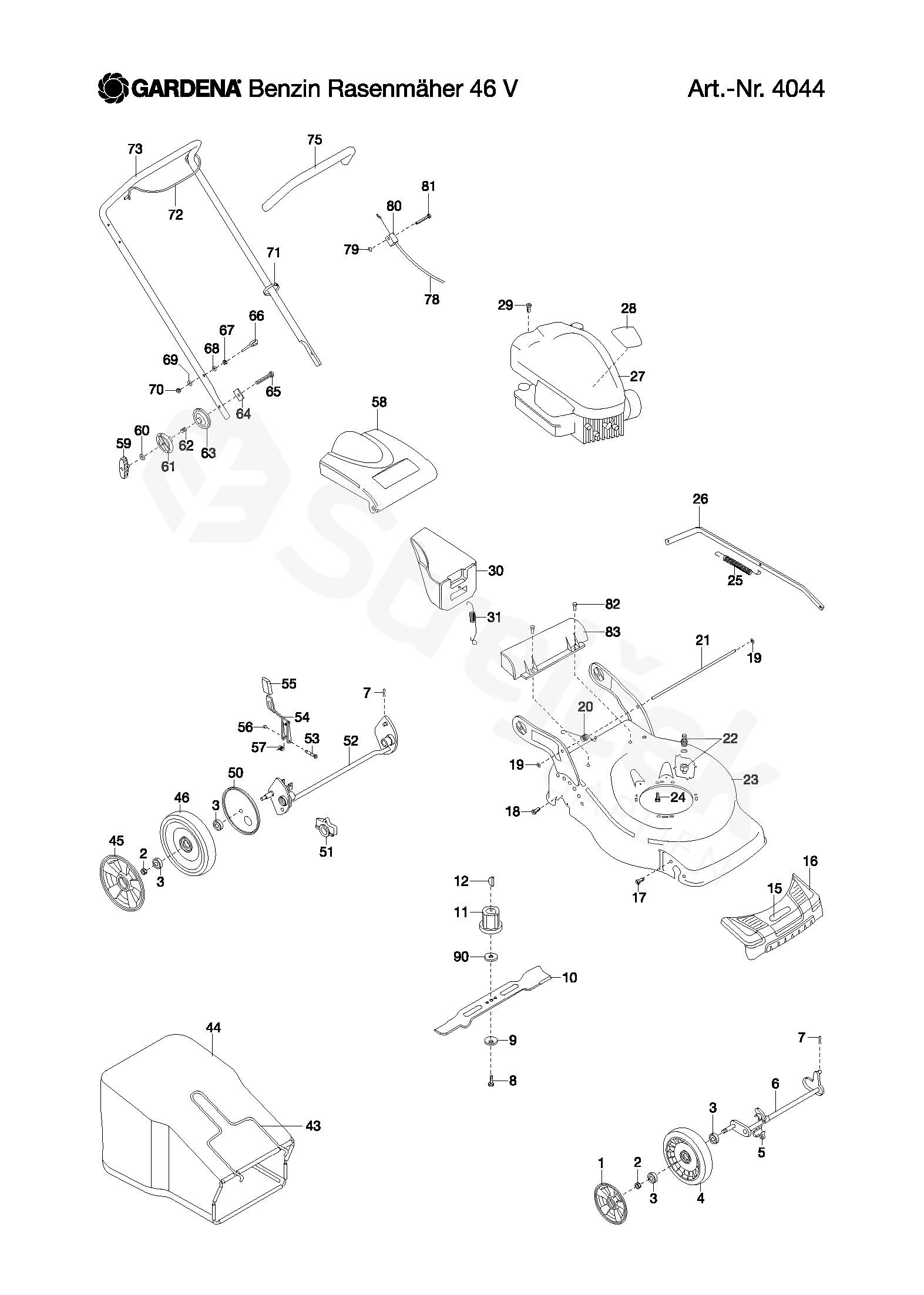

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
PETROL LAWNMOWER 46 V, 4044, until 2013
1
HUB CAP
62554-44.459.01
544445901
2
MATICE
62550-48.578.01
504857801
3
BEARING
62553-80.053.62
538005362
4
WHEEL ASSY
54-49.173.02
544917302
5
CLAMP
62553-12.050.57
531205057
6
FRONT AXLE
62557-39.760.01
573976001
7
KOLÍČEK
62553-12.066.53
531206653
8
SCREW
62553-12.080.08
531208008
9
WASHER
52-54.632.02
525463202
10
MOWER BLADE
58-11.889.10
581188910
11
BLADE SUPPORT
58-18.430.01
581843001
12
KEY
62550-52.909.01
505290901
16
KIT
62557-42.545.01
574254501
17
SCREW
62553-12.088.44
531208844
18
SCREW
62553-12.082.16
531208216
19
LOCKWASHER
58-48.169.03
584816903
20
SPRING
62553-12.118.40
531211840
21
TIE ROD
62553-12.114.41
531211441
22
WATER CONNECTOR
62552-53.478.01
525347801
24
BOLT
53-21.504.06
532150406
25
SPRING
62553-12.137.83
531213783
26
ROD
62553-12.050.69
531205069
29
SCREW
62553-12.127.10
531212710
30
PLUG
62553-12.106.17
531210617
31
SPRING
52-28.577.01
522857701
43
FRAME
62553-12.134.67
531213467
45
HUB CAP
62554-44.461.01
544446101
46
WHEEL ASSY
54-49.169.04
544916904
50
DUST COVER
62550-48.273.01
504827301
51
SUPPORT
62553-12.059.44
531205944
52
REAR AXLE
62550-48.001.01
504800101
53
SCREW
62553-82.358.07
538235807
55
KNOB
57-46.105.02
574610502
56
NUT
62553-12.084.92
531208492
57
SPRING
58-39.513.02
583951302
58
SAFETY FLAP
62552-53.483.01
525348301
59
KNOB
62552-53.474.01
525347401
60
WASHER
62553-12.049.22
531204922
61
SEGMENT
62553-12.114.74
531211474
63
SEGMENT
62553-12.114.73
531211473
64
PLATE
62553-12.115.81
531211581
65
SCREW
62553-12.114.80
531211480
66
PIN RETAINING SCREW
62553-12.051.69
531205169
67
NUT
62553-12.071.65
531207165
70
NUT
62553-12.084.91
531208491
72
LOOP
62553-12.058.63
531205863
73
HANDLE
62552-53.473.01
525347301
75
PROTECTOR
62553-12.107.25
531210725
78
CABLE ASSY
58-21.921.02
582192102
79
NUT
62553-12.052.13
531205213
80
BRACKET
62553-12.080.43
531208043
81
SCREW
62553-12.063.46
531206346
82
SCREW CRPANT
57-60.474.01
576047401
83
SEAL
57-93.009.01
579300901
90
WASHER
52-54.231.01
525423101
GASKET
4044-00.900.06, not shown in image
581150101
68,69
WASHER
62551-40.266.00
514026600
