Spare parts > Husqvarna > ACCESSORIES AND TOOLS > BRUSHCUTTER/TRIMMER ATTACHMENT EDGER ATTACHMENT ESA850 > GEAR HOUSING & CUTTING UNIT
Back to

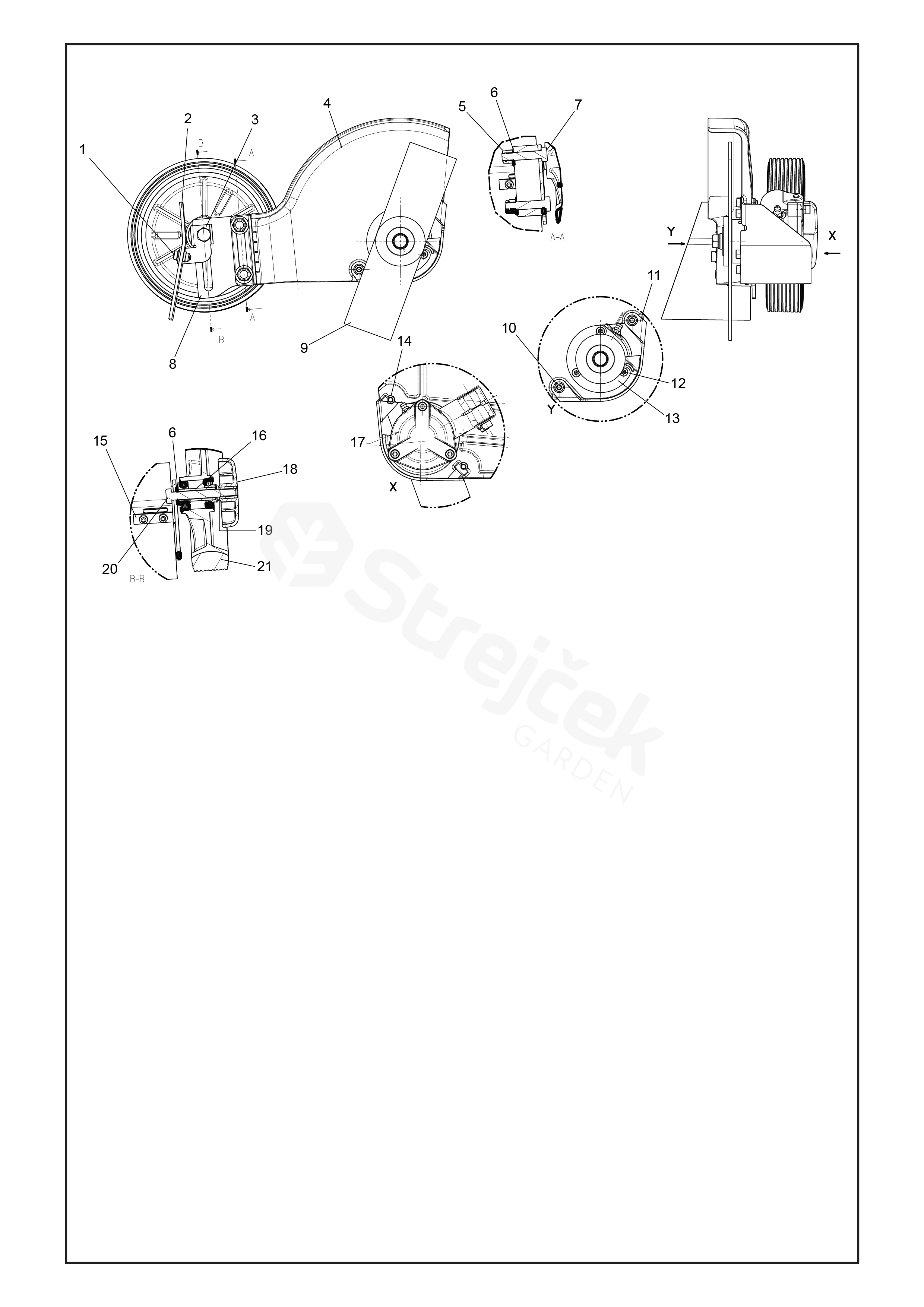

GEAR HOUSING & CUTTING UNIT
BRUSHCUTTER/TRIMMER ATTACHMENT EDGER ATTACHMENT ESA850
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For EDGER ATTACHMENT ESA850
1 BOLT
BOLT M 5 X 10.9 ZnFe 		521516101
2 RUBBER
RUBBER 		505173701
3 BRACKET
BRACKET 		505173501
4 GUARD
GUARD 		510981002
5 NUT
NUT 		505174801
6 WASHER
WASHER 		505173001
7 SCREW
SCREW 		505174701
8 BLADE GUARD BRACKET
BLADE GUARD BRACKET 		505174601
9 EDGER BLADE
EDGER BLADE 		531300233
10 BOLT
BOLT M 5 X 16 10.9 ZnFe Lock 		506745601
11 PROTECTIVE PLATE
PROTECTIVE PLATE 		505172002
12 SCREW
SCREW M 5 X 16 10.9 ZnFe Lock 		596876101
13 PLATE
PLATE 		505171901
14 MATICE
NUT 		505172301
15 PLATE
PLATE 		505173601
16 SLEEVE
SLEEVE 		505173301
17 GEAR CASE
GEAR CASE 		588163001
18 NUT
NUT 		527068601
19 SPRING WASHER
SPRING WASHER 		505172901
20 BOLT
BOLT 		505172601
21 WHEEL
WHEEL 		505172501
