Husqvarna
>
Leaf Blowers
>

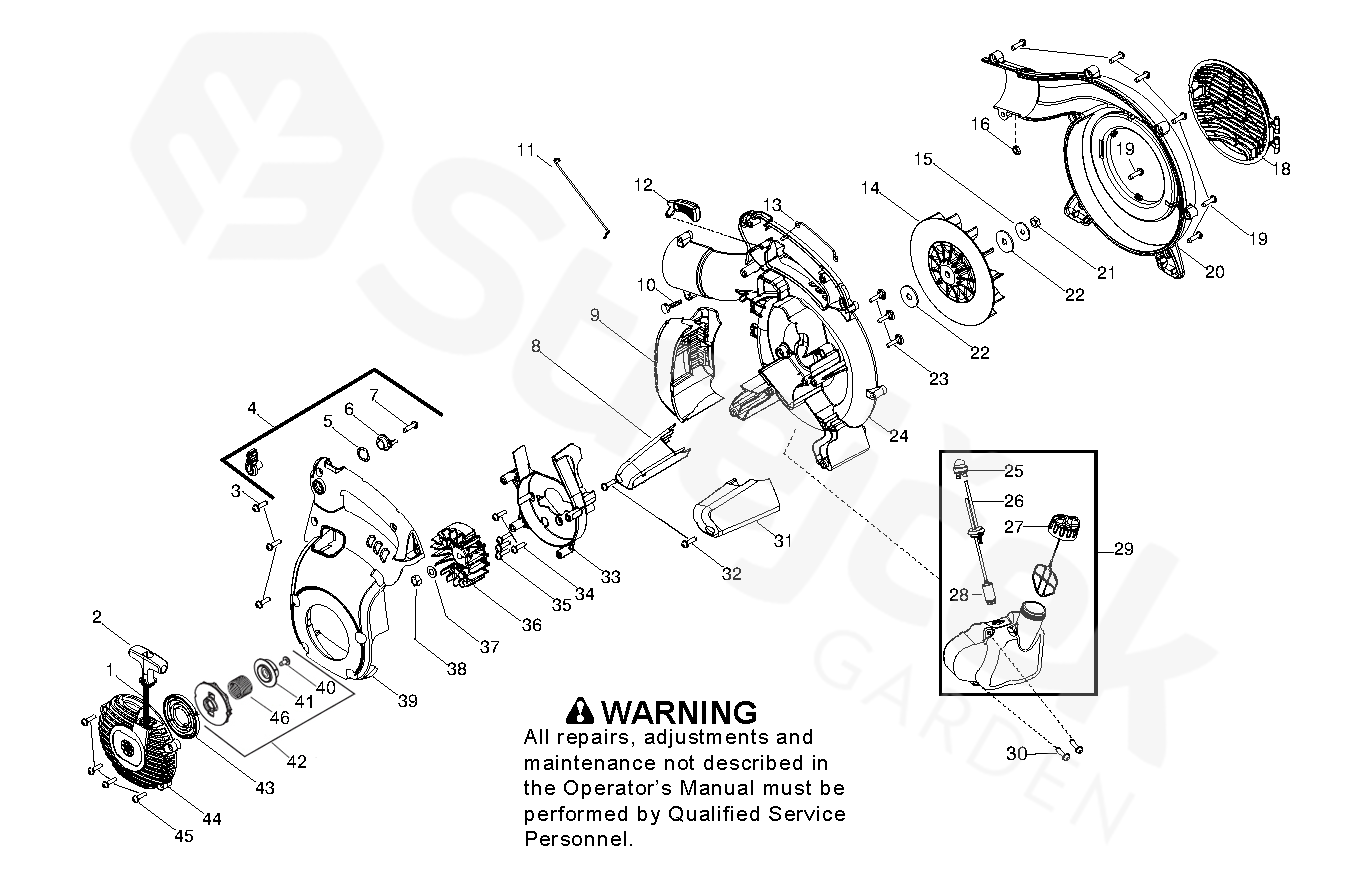

125 B 125 B
>
HOUSING
Back to
125 B
125 B
HOUSING
125 B
125 B
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
125 B
1
KIT
545081817
2
RUKOJEŤ STARTOVÁNÍ Handle - Starter
545043204
3
SCREW
530015814
4
KIT
545081822
5
PODLOŽKA Washer - Wave
530015147
6
RATCHET CRUISE CONTROL
545111501
7
SCREW
530015814
8
FOOT, FRONT IMPACT
545140301
9
ASSY, MUFFLER GUARD
545157901
10
SCREW
545003502
11
LANKO Wire - Linkage
545111301
12
TRIGGER, THROTTLE
545111601
13
LANKO Wire - Handle ground
545131701
14
SEE SERVICE REFERENCE
*****
15
PODLOŽKA
530015127
16
MATICE Nut - Blower tube
530015197
18
COVER
545111202
19
SCREW
530015814
20
ASSEMBLY
575533202
21
MATICE Nut - Impeller
545147101
22
PODLOŽKA Washer - Impeller
545164501
23
SCREW FUEL TANK RETAINER
530016445
24
SCROLL
545110002
25
PURGE
530047721
26
FUEL HOSE
581798001
27
SEE SERVICE REFERENCE
*****
28
FILTER
530095646
29
SEE SERVICE REFERENCE
*****
30
SCREW
530015814
31
FOOT, REAR IMPACT
545140401
32
SCREW
530015814
33
SCROLL, FLYWHEEL
545132801
34
SCREW
530015814
35
SCREW
530015810
36
VENTILÁTOR Assy - Flywheel
576423301
37
PODLOŽKA Washer
530015828
38
MATICE
530016134
40
SCREW
545112801
41
HUB
545140801
42
KIT
545081818
43
PRUŽINA
530042095
44
HOUSING - STARTER COVER
545111801
45
SCREW
530016386
46
PRUŽINA Spring - EPS2
545115901
