Spare parts > Husqvarna > Engines > TUFFTORQ K664U, 589751701, 2019-06 > TRANSMISSION
Back to

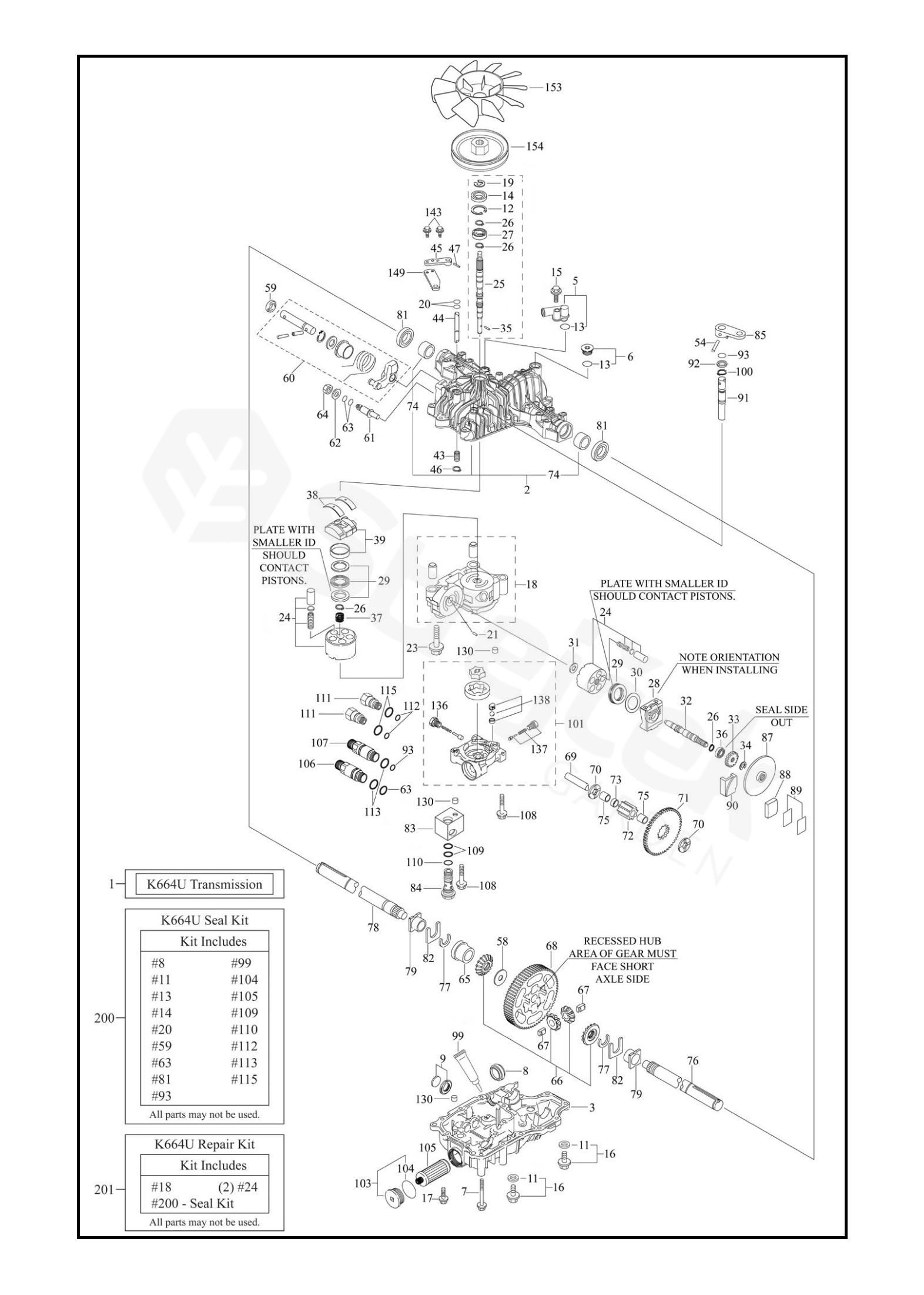

TRANSMISSION
TUFFTORQ K664U, 589751701, 2019-06
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For K664U, 589751701, 2019-06
1 TRANSMISSION 589751701
2 HOUSING 523074401
3 CASE 577341801
5 CLUTCH 574514601
6 KIT 574514701
7 BOLT 535414683
8 FILTER 535414623
9 MAGNET 535414694
11 WASHER 535402825
12 SNAP RING 586889301
13 SEALING 586903601
14 SEALING 506957201
15 BOLT 502462801
16 BOLT 597756801
17 TBD CONTACT HONDA 1-800-426-7701 TBD
18 CASE 577342001
19 CLIP 535402807
20 O-RING 535402815
21 PIN RETAINING SCREW 535402858
23 BOLT 502462901
24 KIT 578975501
25 SHAFT 523074901
26 RETAINING RING 535402881
27 BEARING 582163001
28 TBD CONTACT HONDA 1-800-426-7701 TBD
29 BEARING 590622301
30 WASHER 590621401
31 WASHER 535402879
32 SHAFT 523075901
33 TBD CONTACT HONDA 1-800-426-7701 TBD
34 O-RING 535414629
35 PIN RETAINING SCREW 535414692
36 BEARING 535414704
37 SPRING 535414685
38 METALL PALLETE LE15 - EP 2 - KNORR 574515801
39 PLATE 590621301
43 SPRING 502460101
44 SHAFT 535414634
45 LEVER 535402817
46 RETAINING RING 535402849
47 SPRING PIN 586904501
54 PEN 586904601
58 WASHER 502451201
59 SEALING 535402811
60 CONTROL SHAFT 502451101
61 ECCENTRIC 535402892
62 WASHER 535402813
63 O-RING 585469401
64 NUT 506956601
65 TBD CONTACT HONDA 1-800-426-7701 TBD
66 DIFFERENTIAL GEAR KIT 502449801
67 TBD CONTACT HONDA 1-800-426-7701 TBD
68 GEAR 523076801
69 SHAFT 574516301
70 WASHER 535414640
71 GEAR 535414659
72 PINION 535414662
73 TBD CONTACT HONDA 1-800-426-7701 TBD
74 BUSHING 535414690
75 NEEDLE BEARING 535414657
76 TBD CONTACT HONDA 1-800-426-7701 TBD
77 RETAINING RING 535414696
78 TBD CONTACT HONDA 1-800-426-7701 TBD
79 BUSHING 535414697
81 SEALING 535402810
82 WASHER 535414645
83 BLOCK 577344001
84 CONNECTOR 577344101
85 BRAKE LEVER 586904301
87 BRAKE DISC 535414646
88 BRAKE SHOE 535414647
89 SHIM KIT 502449501
90 BRAKE 586904801
91 SHAFT 535414650
92 WASHER 586904701
93 SEALING 586904401
99 SEAL 578974901
100 RETAINING RING 535414702
101 CASE 590621601
103 KIT 574515101
104 O-RING 597757201
105 FILTER 586666801
106 PIPE FITTING 574515301
107 PIPE FITTING 574515401
108 BOLT 535414706
109 O-RING 574515501
110 O-RING 574515601
111 CONNECTOR 577344301
112 O-RING 585467901
113 O-RING 502462001
115 O-RING 535466504
130 PIN RETAINING SCREW 535414699
136 CHARGE RELIEF VALVE 502460601
137 VALVE 535466505
138 3RD CHECK VALVE 502451501
143 TBD CONTACT HONDA 1-800-426-7701 TBD
149 LEVER 535402826
153 FAN 597757301
154 INPUT PULLEY 3.5" DIA 502450501
200 SEAL KIT 590621701
201 TBD N/A
