Spare parts > Husqvarna > CHAIN SAWS > 545 Mark II, 545G Mark II 545 Mark II, 545G Mark II > CRANKCASE
Back to

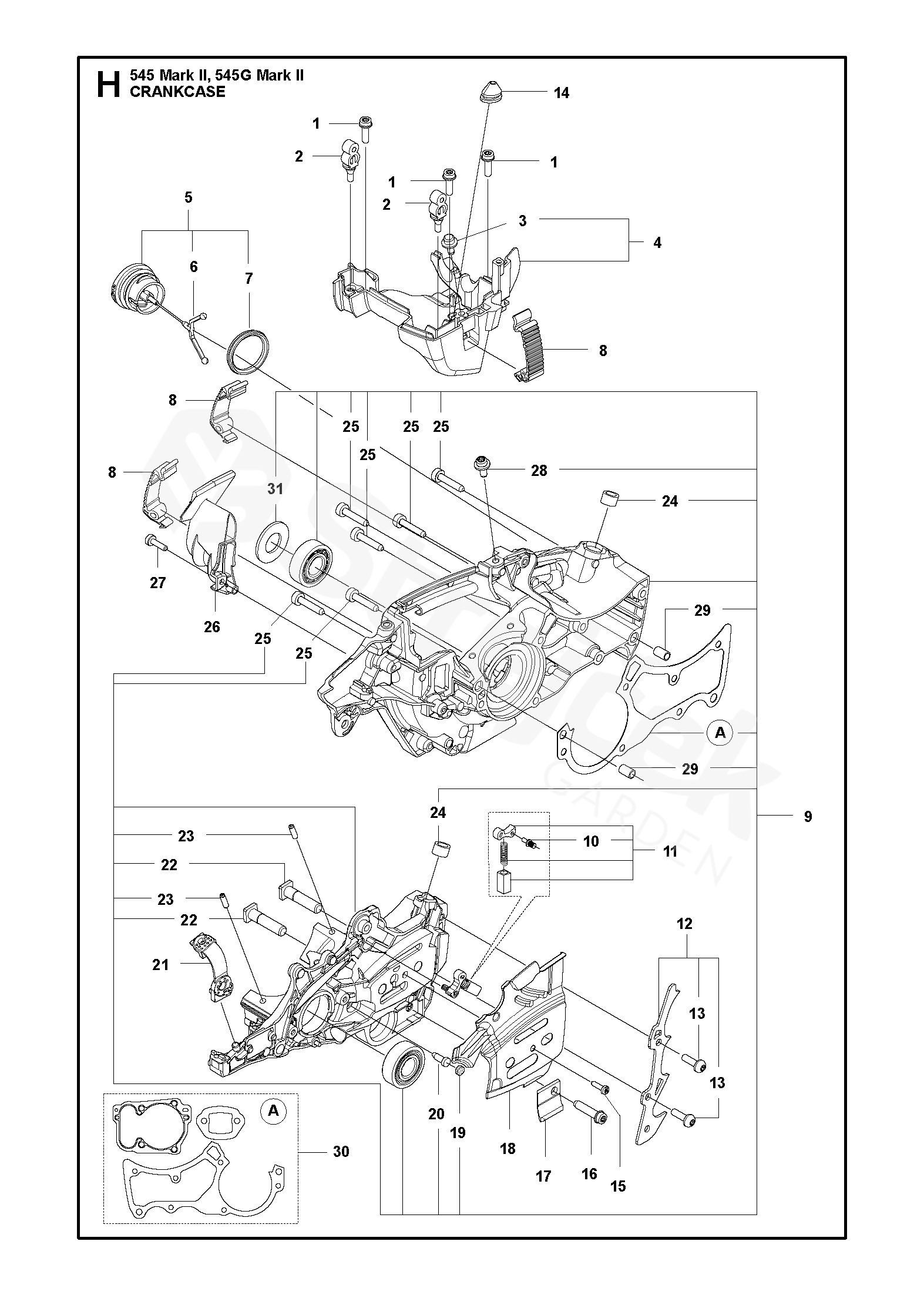

CRANKCASE
545 Mark II, 545G Mark II 545 Mark II, 545G Mark II
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 545 Mark II, 545G Mark II
1 SCREW ITXSCFM 575885703
2 KARBURÁTOR 503869301
3 GUIDE PIN 544331601
4 CARBURETTOR AREA BASE 582285201
5 TANK CAP ASSY 522620003
6 HOLDER 503578901
7 GASKET 589241101
8 SNAP 503894703
9 CRANKCASE KIT 595897702
10 PIN KNEE-JOINT 503751801
11 CATCH 596351401
12 SPIKE 596351301
13 SCREW ITXPANM 575793501
14 BELLOWS 581559201
15 SCREW CITXPANT 525887401
16 SCREW ITXSCFT 525798103
17 CHAIN CATCHER 537377902
18 CHAIN GUIDE PLATE 589721901
19 FILTER 537403501
20 CHECK VALVE 530026119
21 ZRÁŽKA VYCHÝLENÍ 505125801
22 BAR BOLT 505217301
23 PARALLEL PIN 720126952
24 SLEEVE
589331301
25 SCREW ITXSCM 503215325
26 AIR NOZZLE 582285901
27 SCREW ITXSCM 526818101
28 SCREW ITXSCM 525824401
29 GUIDE BUSHING 501270802
30 GASKET KIT 595897601
31 PROTECTIVE CAP 596911301
