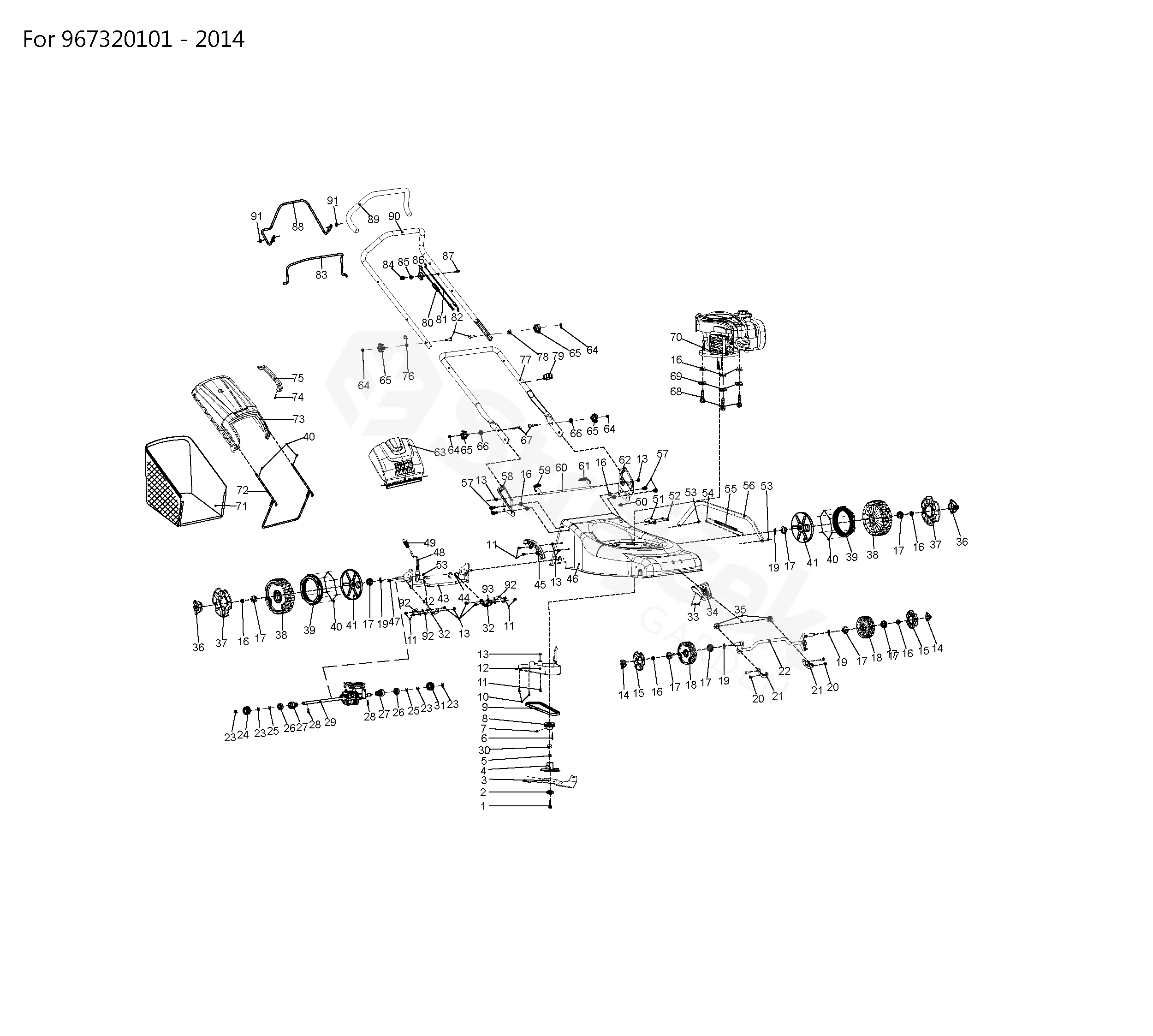

Spare parts - Partlist - LC140 S LC140 S - PRODUCT COMPLETE

Everything for your machines

LC140 S LC140 S

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For LC140 S

1	LOCKING BOLT	587913801
2	WASHER	587910701
3	MOWER BLADE	587386310
4	BLADE SUPPORT	587911201
5	BUSH	587915401
6	FLAT PIN	587915301
7	SCREW	587912801
8	PULLEY	587912001
9	BELT	587909601
10	SCREW	587912201
11	SCREW	587912601
12	COVER	587909801
13	LOCK NUT	587913401
14	KRYTKA KOLA	587585001
15	WHEEL COVER	587585201
16	BLOKOVACÍ SVORNÍK	587913501
17	BEARING	587912901
18	WHEEL	587585401
19	PODLOŽKA	587914601
20	SCREW	587912501
21	FIXING PLATE	587911001
22	AXLE	587911501
23	PODLOŽKA	587914701
24	GEAR ASSY	587915701
25	PODLOŽKA	587914501
26	BEARING	587913001
27	BEARING HOUSING	587915501
28	PIN	587915201
29	GEARBOX ASSY	587908701
30	BUSHING	587910201
31	GEAR ASSY	587915601
32	FIXING PLATE	587910901
33	SCREW	587912401
34	FRONT COVER	587584901
35	LOCKING RING	587909701
36	KRYTKA KOLA	587585101
37	KRYTKA KOLA	587585301
38	KOLO	587585501
39	GEAR WHEEL	587910101
40	SCREW	587912101
41	COVER	587586201
42	PODLOŽKA	587914801
43	AXLE	587911601
44	PODLOŽKA	587910801
45	SEGMENT	587909901
46	PLATE	587908801
47	PODLOŽKA	587912701
48	HANDLE ASSY	587911901
49	KNOB	587585701
50	COVER	587910001
51	GUIDE PLATE	587911301
52	BOLT	587914101
53	BLOKOVACÍ SVORNÍK	587913101
54	TUBING	587915801
55	PRUŽINA	587914901
56	CONNECTING ROD	587911701
57	BOLT	587913901
58	BRACKET	587908901
59	PRUŽINA	587915101
60	ROD	587911401
61	BRACKET	587915001
62	BRACKET	587909001
63	FLAP	587585901
64	HEXAGON NUT	587913301
65	KNOB	587585801
66	WASHER	587914301
67	BOLT	587914201
68	BOLT	587913701
69	GASKET	587911101
70	ENGINE	587916101
71	GRASSBAG	587586301
72	BRACKET	587911801
73	COVER	587586001
74	SCREW	587912301
75	HANDLE	587586101
76	ROPE	587910601
77	HANDLE	587909101
78	WASHER	587909501
79	CLAMP	587910401
80	THROTTLE CABLE	587916001
81	DRIVE CABLE	587915901
82	BOLT	587913601
83	HANDLEBAR	587909201
84	NUT	587913201
85	RING	587914401
86	HOLDER	587910301
87	BOLT	587914001
88	HANDLEBAR	587909301
89	HANDLE GRIP	587910501
90	HANDLE	587909401
91	WASHER	587993401
92	WASHER	587993501
93	O-KROUŽEK	587992501
