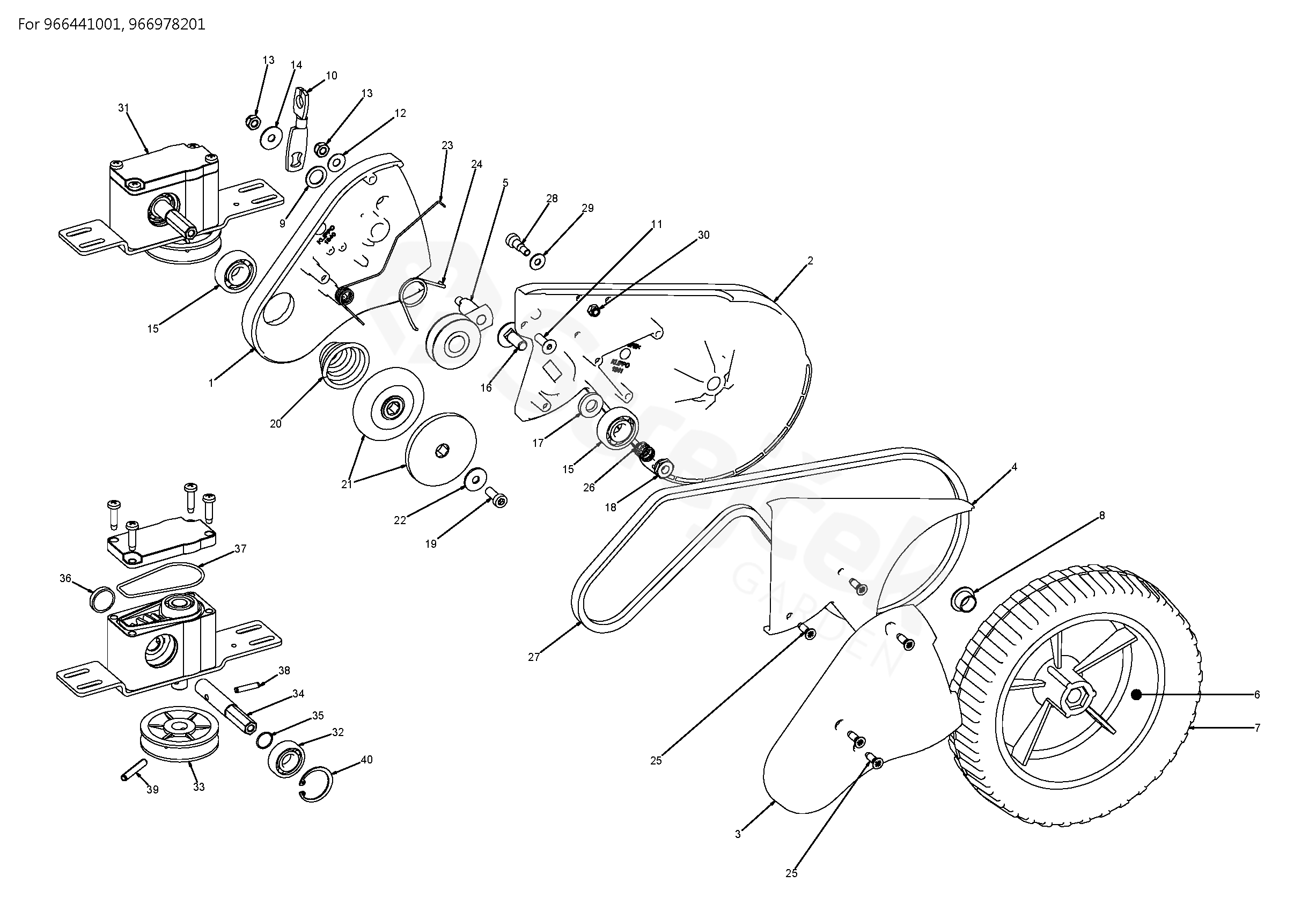

Spare parts > Husqvarna > LAWN MOWERS: CONSUMER WALK-BEHINDS > WB53 SE WB53 SE > DRIVE
Back to
DRIVE
WB53 SE WB53 SE
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For WB53 SE
1 COVER 502879901
2 COVER 502880001
3 COVER 502880101
4 COVER 502880201
5 PULLEY ASSY 503323201
6 KOLO KOMPL. 503317402
7 PNEUMATIKA 510109601
8 BUSHING 503277101
9 PODLOŽKA 504460801
10 LEVER 503322701
11 BOLT 504460401
12 PRUŽINA 503324001
13 LOCKING NUT GALVANIZED 504456101
14 WASHER GALVANIZED 504466101
15 BALL BEARING 503242901
16 BOLT 504460101
17 PODLOŽKA 504460601
18 BARREL NUT 503317601
19 SCREW IHSCM 504456701
20 SPRING 503323401
21 DISC 503329501
22 PODLOŽKA 504459901
23 PRUŽINA 502880301
24 PRUŽINA 503326601
25 SCREW ITXCSFM 504460001
26 SPRING 503318701
27 BELT 589571001
28 SCREW IHSCM 504461901
29 WASHER, 5X13X1 504456001
30 LOCKING NUT GALVANIZED 504460301
31 WORM GEAR ASSY 510212201
32 BEARING 505150101
33 PULLEY 503330101
34 SHAFT 503330201
35 O-RING 503330301
36 PLUG 503330401
37 GASKET 503330501
38 SPRING PIN 504455401
39 SPRING PIN 504455501
40 CIRCLIP 505150201
