Husqvarna
>
ICE AUGERS
>
ST 330P ST 330P, 96191008502, 2016-04
>
ENGINE
Back to
ST 330P
ST 330P, 96191008502, 2016-04
ENGINE
ST 330P
ST 330P, 96191008502, 2016-04

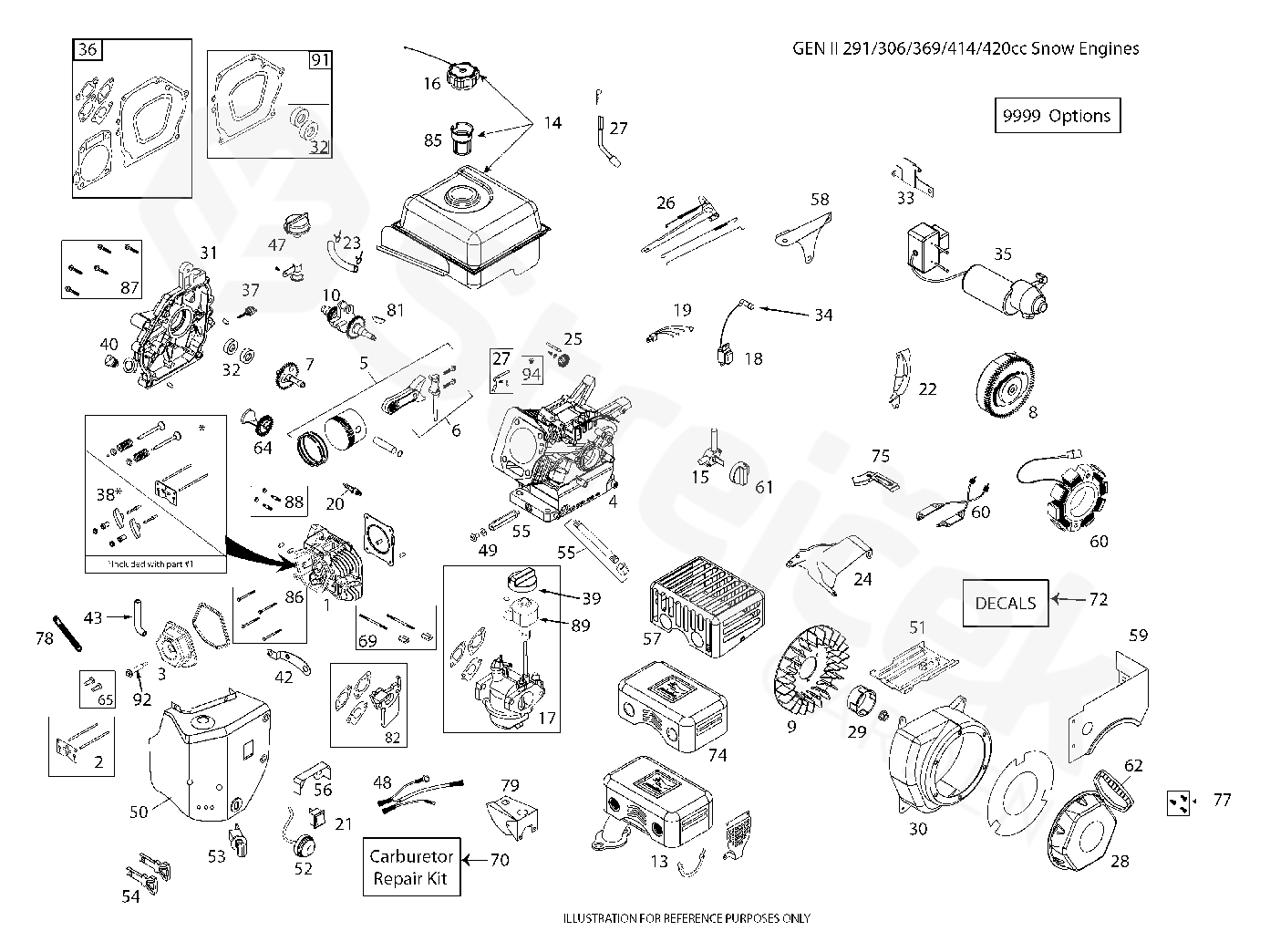

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
ST 330P, 96191008502, 2016-04
1
CYLINDER HEAD
587176801
2
PUSH ROD TAPPET KIT (INCLUDED WITH PART # 40)
532429606
3
VALVE COVER CPL.
532429303
4
W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
NOT REQUIRED FOR THIS ENGINE
000000000
5
PISTON
582505201
6
W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
NOT REQUIRED FOR THIS ENGINE
000000000
7
CAMSHAFT
532429313
8
FLYWHEEL
532443900
9
FAN
532429306
10
CRANKSHAFT
587151301
13
MUFFLER ASSY
532429208
14
FUEL TANK ASSY
532429209
15
FUEL
532429234
16
FUEL TANK
532424942
17
CARBURETTOR
587179101
18
IGNITION COIL
532443944
19
W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
NOT REQUIRED FOR THIS ENGINE
000000000
20
SPARK PLUG
532429255
21
IGNITION SWITCH
532429223
22
KRYT
532429232
23
HOSE KIT
532432146
24
KRYT
532429286
25
GEAR ASSY
532429312
26
ARM
532429310
27
SHAFT
532429311
28
RECOIL
532429299
29
STARTER ASSY
532429300
30
BLOWER
587179301
31
COVER
580984101
32
SEAL
532429316
33
STARTER ASSY
532429290
34
BOOT
532436966
35
ELECTRIC START ASSY
532437465
36
GASKET KIT
587179401
37
DIPSTICK
532435534
38
ROCKER ARM KIT (INCLUDED WITH PART # 40)
532429612
39
CHOKE
532429224
40
OIL PLUG
532429242
42
W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
NOT REQUIRED FOR THIS ENGINE
000000000
43
BREATHER
587179601
47
ASSEMBLY KIT
532429237
48
WIRE HARNESS
532429262
49
OIL PLUG
532435494
50
ASSEMBLY
532429294
51
KRYT
532429231
52
PRIMER
532429218
53
KEY SWITCH
532429221
54
KIT
532443059
55
OIL PIPE
587139901
56
KRYT
532429213
57
SHIELD
532437466
58
PLATE
532429298
59
FUEL TANK ASSY
532429318
60
SOLENOID
532443896
61
FUEL KNOB-SNOW
532432752
62
SNOW STARTER CHIP
532424968
64
COUNTER WEIGHT KIT
532429608
65
TAPPET
581372901
69
STUD
586326701
70
CARBURETTOR
580353701
72
W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
NOT REQUIRED FOR THIS ENGINE
000000000
74
SHIELD
587375301
75
KRYT
532429232
77
BOLT KIT
532432688
78
STRAP
585771301
79
KRYT
587152001
81
WOODRUFF KEY
585297201
82
SPACER
585020501
85
ČISTIČ
586325601
86
BOLT
586327401
87
BOLT
586327001
88
ŠROUB
586326801
89
KNOB
587124801
91
GASKET KIT
587994104
92
BOLT
587995201
94
SEAL
588485501
9999
JET
586326501
