Spare parts > Husqvarna > LAWN MOWERS: CONSUMER WALK-BEHINDS > LC 153P LC 153P, 967988501, 967988502, 2019-11 > CHASSIS
Back to

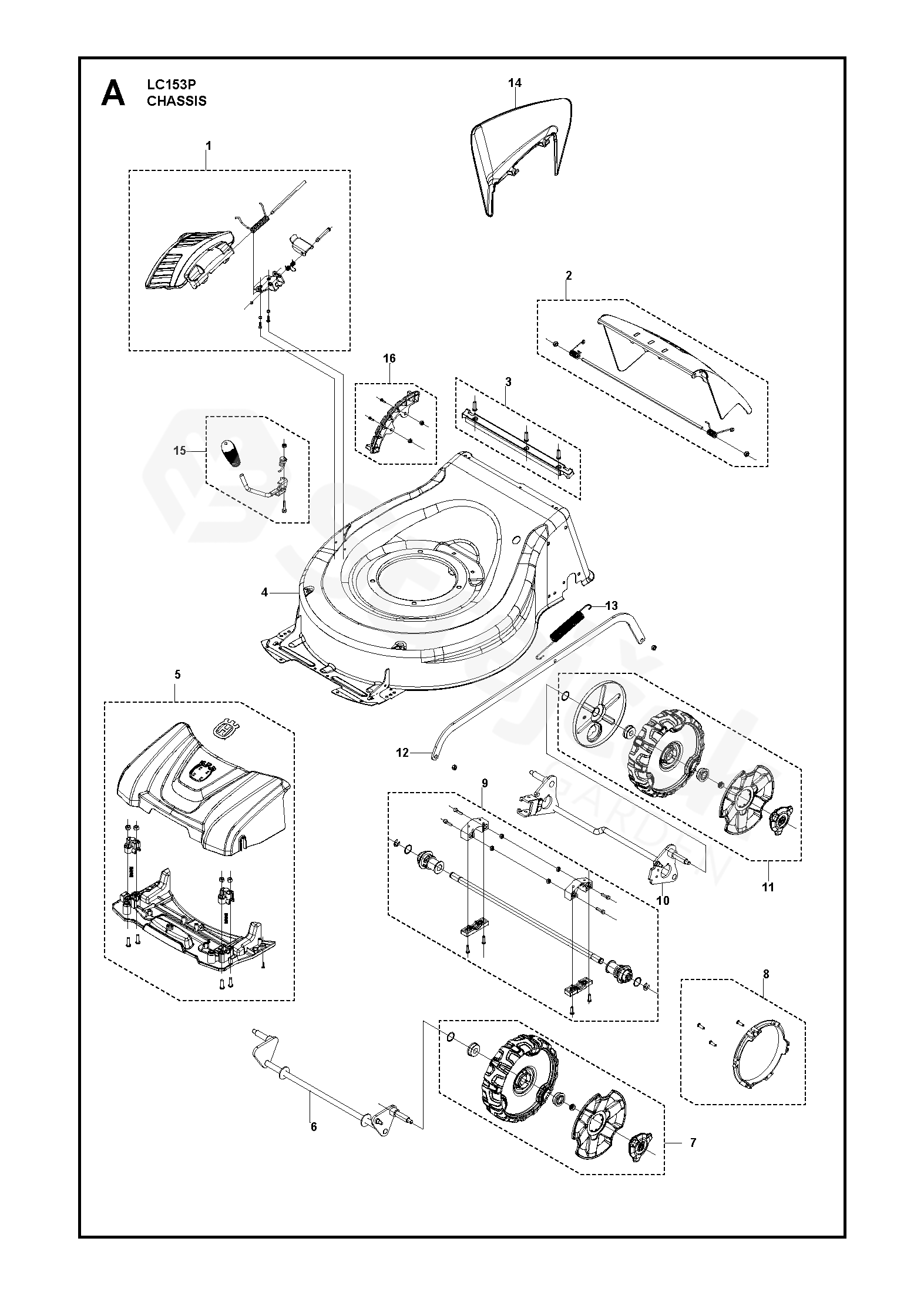

CHASSIS
LC 153P LC 153P, 967988501, 967988502, 2019-11
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For LC 153P, 967988501, 967988502, 2019-11
1 PLATE KIT
SIDE DISCHARGE PLATE 		598684111
2 FLAP
REAR DOOR 		598684119
3 SEALING PLATE
SEALING PLATE 		598684128
4 CHASSIS
chassis 		598861201
5 COVER KIT
FRONT COVER 		598684122
6 AXLE
WHEEL AXLE 		598818701
7 WHEEL
FRONT WHEEL 		598512901
8 DUST SEAL
DUST-PROOF RING 		598721701
9 AXLE
REAR SHAFT 		598513301
10 AXLE
WHEEL AXLE 		598684109
11 WHEEL
FRONT WHEEL 		598684103
12 ROD
connecting rod 		599138801
13 SPRING
tension spring of connecting rod 		599138901
14 COVER
SIDE DISCHARGE PROTECTIVE COVER 		598819001
15 HANDLE KIT
HEIGHT ADJUSTMENT HANDLE 		599139101
16 PLATE KIT
HEIGHT ADJUSTMENT PLATE 		599139001
