Spare parts > Husqvarna > RIDERS > PR17 AWD PR17 AWD > FRAME
Back to

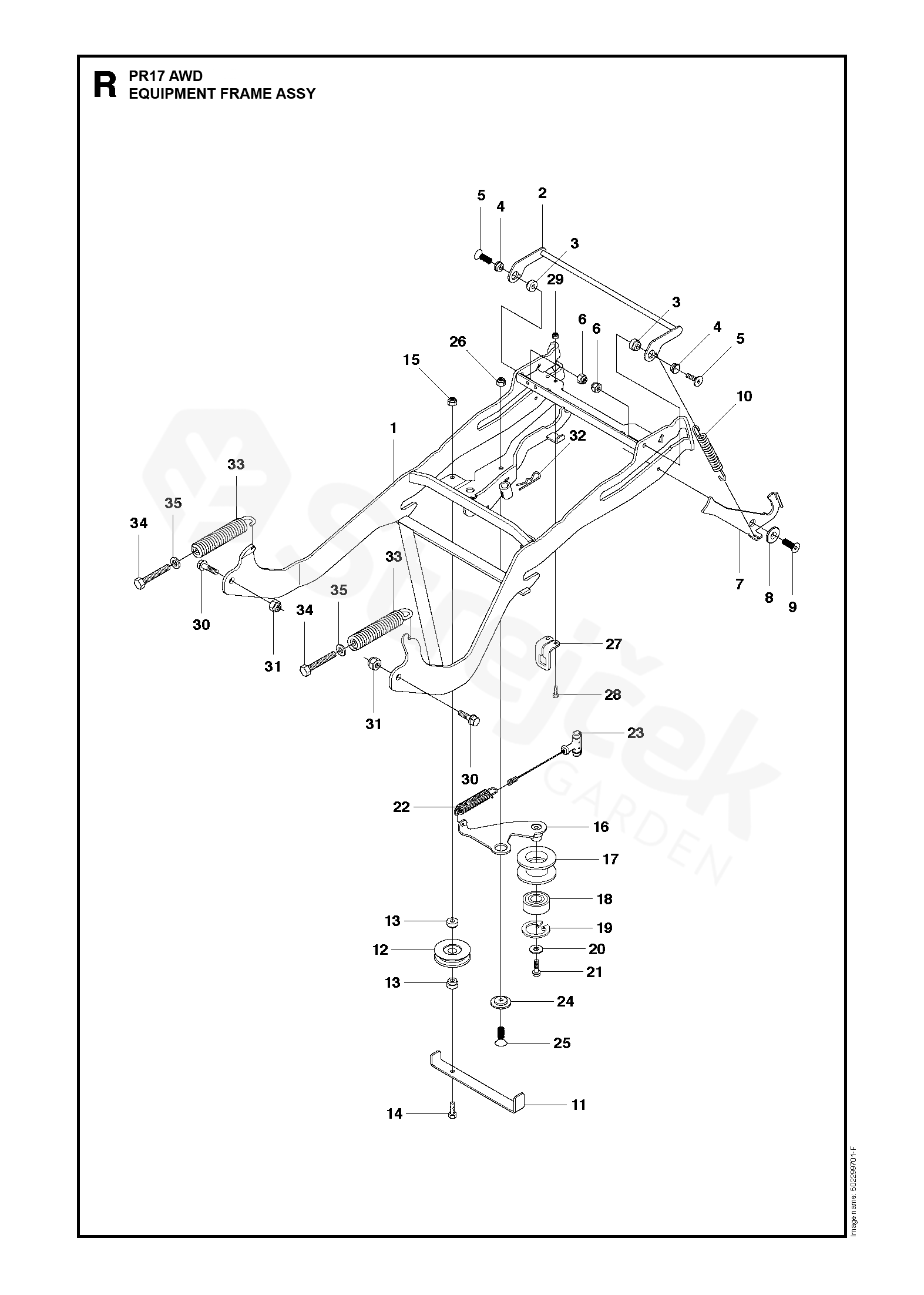

FRAME
PR17 AWD PR17 AWD
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PR17 AWD
1 EQUIPMENT FRAME 502637801
2 HOOK 504557801
3 BUSHING 544003401
4 SLEEVE 506993302
5 SCREW IHCSFM 725645901
6 LOCK NUT 732211801
7 LEVER 504558002
8 WASHER 506918701
9 SCREW IHCSFM
For 965192301(2010), 966772701 		725644801
10 DRAW SPRING 506535603
11 BELT GUIDE 504621601
12 PULLEY ASSY 544004601
13 BUSHING 544003401
14 SCREW EHHM 725246051
15 LOCK NUT 732211801
16 BELT TENSIONER 504621901
17 PULLEY 506928901
18 BALL BEARING 738210404
19 CIRCLIP 735313810
20 PODLOŽKA 734116441
21 SCREW EHHFT 506558302
22 PRUŽINA 504622401
23 HANDLE ASSY 504622101
24 WASHER 505451701
25 SCREW IHCSFM 725645301
26 LOCK NUT 732211801
27 GUIDE 504621701
28 SCREW EHHM 725236871
29 LOCK NUT 732211601
30 COLLAR SCREW 506895801
31 HEXAGON LOCKING NUT 732252201
32 HAIR PIN COTTER 506966601
33 SPRING 505418701
34 SCREW EHHM 725251571
35 HEXAGON NUT 734117201
