Spare parts
Everything for your machines
Spare parts
>
Husqvarna
>
RIDERS
>
R422 Ts R 422 Ts
>

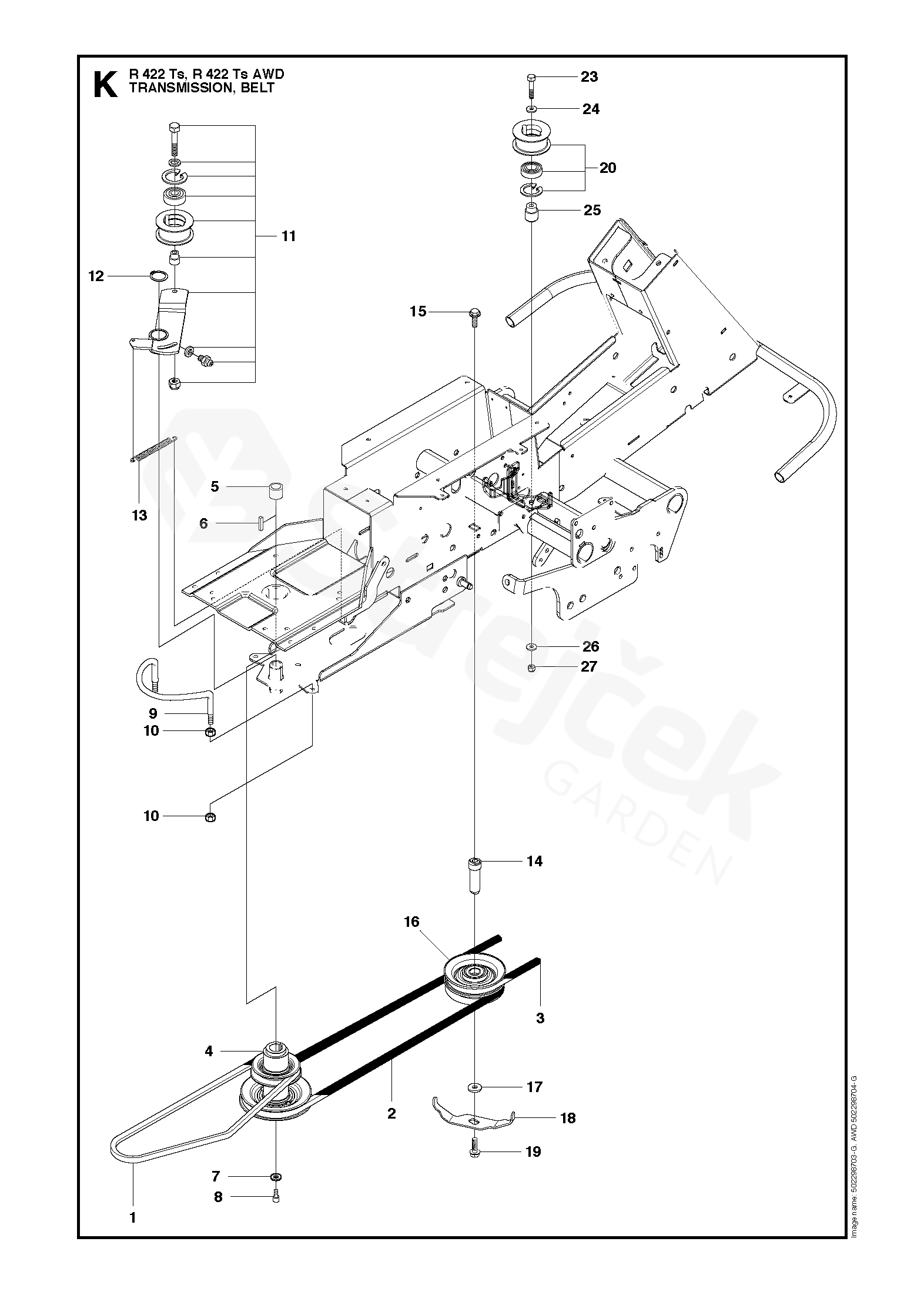

TRANSMISSION
Back to
R422 Ts
R 422 Ts
TRANSMISSION
R422 Ts
R 422 Ts
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
R 422 Ts
1
DRIVE BELT
506991901
2
BELT
589532901
3
BELT
589531101
4
PULLEY
535482401
5
ROZPĚRNÉ POUZDRO
506509201
6
KLÍN
506555901
7
PODLOŽKA
506597501
8
SCREW UNC
506556002
9
BELT GUIDE
506664501
10
HEXAGON NUT
731232051
11
BELT TENSIONER ASSY
535484402
12
CIRCLIP
735312600
13
PRUŽINA
506665601
14
SHAFT
544426102
15
SCREW EHHFM
506675402
16
MELLANHJUL
535482201
17
WASHER
506775701
18
BELT GUIDE
544405301
19
SCREW EHHFM
506570105
20
BELT TENSIONER WHEEL ASSY
505153901
23
SCREW EHHM
725246151
24
PODLOŽKA
734116441
25
BUSHING
544002901
26
PODLOŽKA
734116401
27
LOCK NUT
732211801
