Spare parts > Husqvarna > RIDERS > RC 320Ts AWD RC 320Ts AWD > HYDRAULIC PIPE
Back to

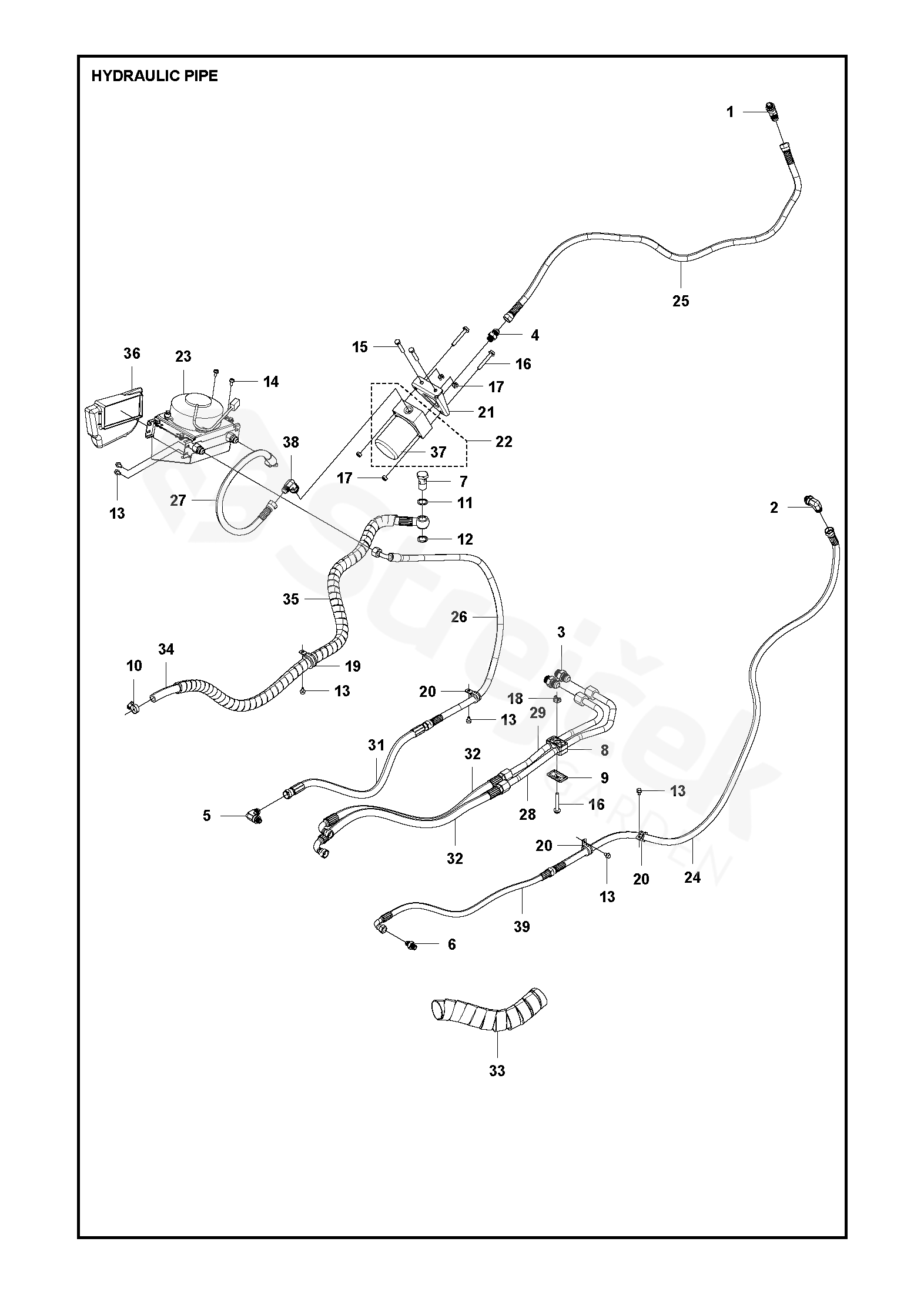

HYDRAULIC PIPE
RC 320Ts AWD RC 320Ts AWD (967628802 - 7391736587754, 967628801 - 7391736320849, 970621201 - 7333377056091)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For RC 320Ts AWD
1 PIPE FITTING 535426901
2 PIPE FITTING 535437301
3 PIPE FITTING 535426806
4 PIPE FITTING 535426801
5 PIPE FITTING 535437305
6 PIPE FITTING 535426805
7 PIPE FITTING 544020501
8 PIPE CLAMP 544373302
9 COVER PLATE 544373802
10 HADICOVÁ SVĚRKA 505131101
11 GASKET 544010001
12 GASKET 544010003
13 SCREW EHHFT 725236461
14 SCREW EHHFM 535475212
15 SCREW EHHM 725246071
16 SCREW EHHFM 506570107
17 LOCK NUT 732211801
18 CAGE NUT 544811701
19 HADICOVÁ SVĚRKA 574531201
20 HADICOVÁ SVĚRKA 574531203
21 BRACKET 588979501
22 FILTER UNIT 580653301
23 OIL COOLER 505459001
24 HOSE ASSY 501087301
25 HOSE ASSY 501087302
26 HYDRAULIC HOSE 501087601
27 HYDRAULIC HOSE 501087602
28 HYDRAULIC PIPE 588887201
29 HYDRAULIC PIPE 588887001
31 HYDRAULIC HOSE 575415301
32 HYDRAULIC HOSE 544456401
33 HOSE GUARD 544026603
34 HYDRAULIC HOSE 578295004
35 HOSE GUARD 544026607
36 AIR INTAKE 589227501
37 OIL FILTER 574867101
38 PIPE FITTING 535437301
39 HYDRAULIC HOSE 535450302
