Spare parts
>
Husqvarna
>
ROBOTIC LAWN MOWERS
>
AUTOMOWER 220 AC 220 AC
>

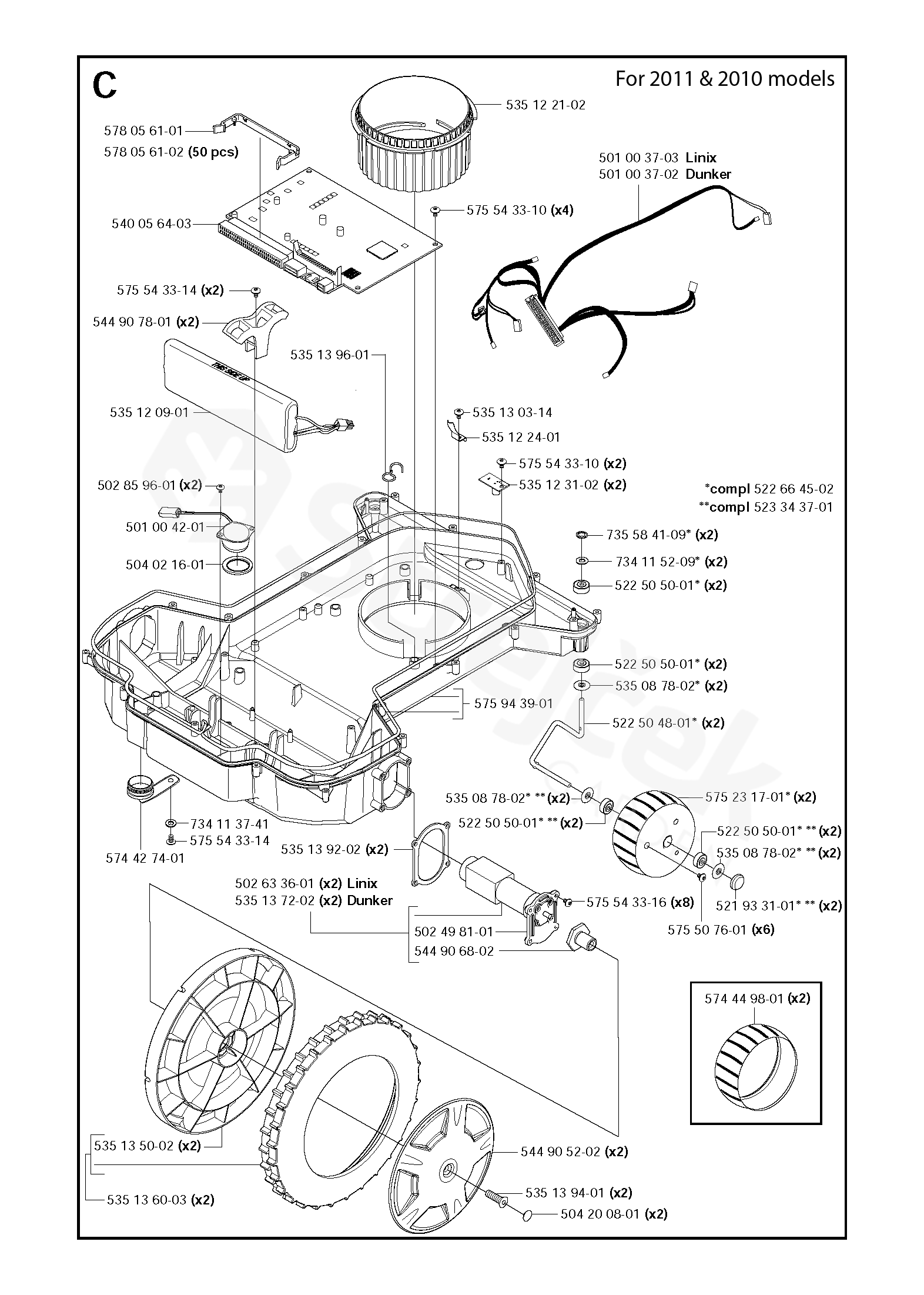

CHASSIS LOWER
Back to
AUTOMOWER 220 AC
220 AC
CHASSIS LOWER
AUTOMOWER 220 AC
220 AC
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
220 AC
501003702
MAIN WIRING
501003702
501003703
MAIN WIRING
501003703
501004201
LOUD SPEAKER
501004201
502498101
GABLE
502498101
502633601
DRIVE MOTOR
502633601
502859601
SCREW
502859601
504021601
SEALING
504021601
504200801
COVER WASHER
504200801
521933101
COVER WASHER
521933101
522504801
SPINDLE
522504801
522505001
BALL BEARING
522505001
522664502
KIT
522664502
523343701
BEARING KIT
523343701
535087802
WASHER
535087802
535120901
BATERIE
535120901
535122102
NUT
535122102
535122401
LOCKING SPRING
535122401
535123102
SENSOR CARD
535123102
535130314
SCREW ITXPANT
535130314
535135002
WHEEL
535135002
535136003
GEAR WHEEL
535136003
535137202
MOTOR
535137202
535139202
GASKET
535139202
535139401
SCREW IHCSFM
535139401
535139601
CABLE HOLDER
535139601
540056403
PRINTED CIRCUIT ASSY
540056403
544905202
HUB CAP
544905202
544906802
HUB
544906802
544907801
BRACKET
544907801
574427401
PLUG
574427401
574449801
WHEEL
574449801
575231701
WHEEL ASSY
575231701
575507601
SCREW ITXPANT
575507601
575543310
SCREW
575543310
575543314
SCREW
575543314
575543316
SCREW
575543316
575943901
CHASSIS
575943901
578056101
CLIP
578056101
578056102
CLIP
578056102
734113741
PODLOŽKA
734113741
734115209
WASHER
734115209
735584109
WASHER
735584109
