Spare parts > Husqvarna > ROBOTIC LAWN MOWERS > AUTOMOWER SOLAR HYBRID SOLAR HYBRID > CHASSIS UPPER
Back to

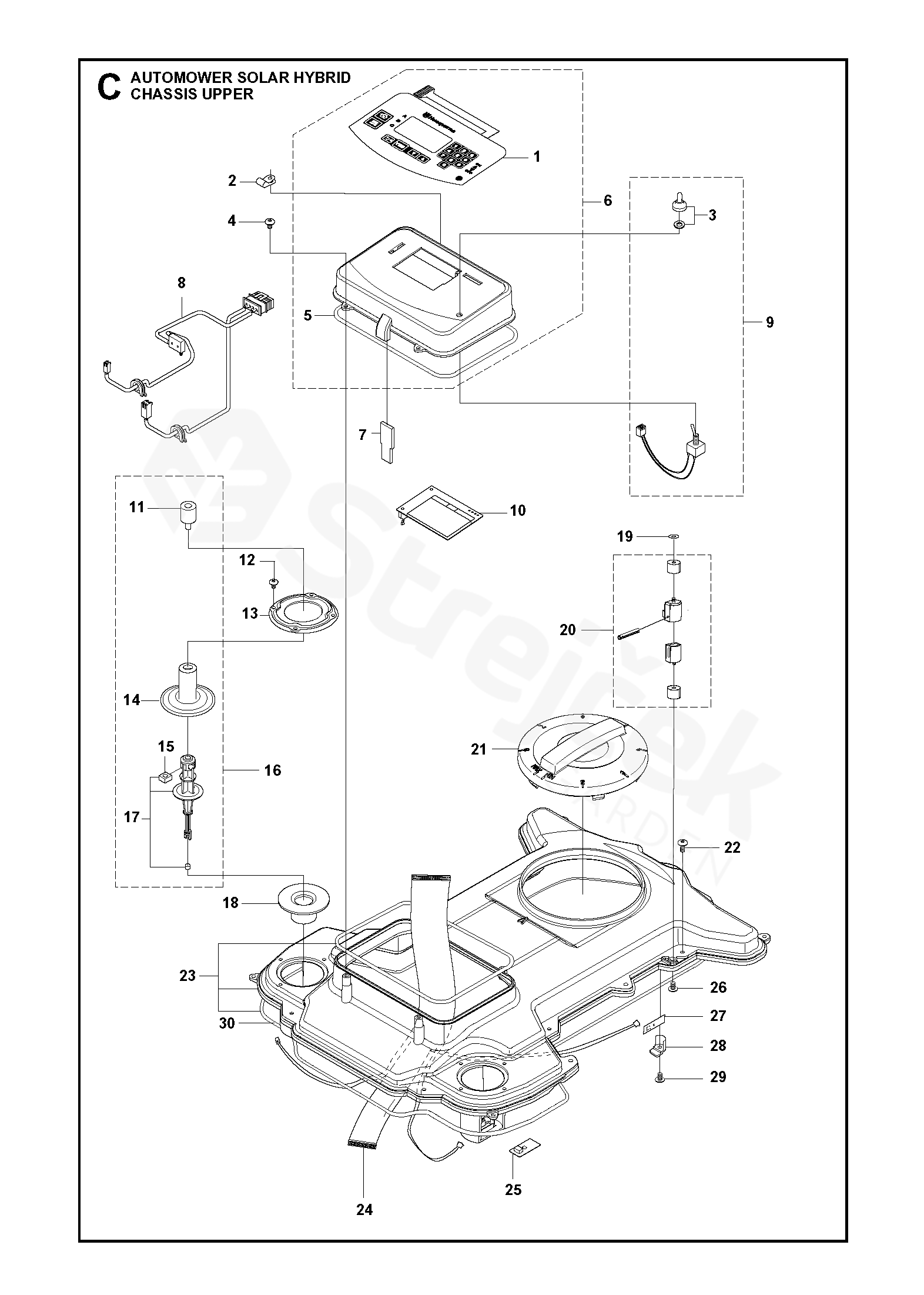

CHASSIS UPPER
AUTOMOWER SOLAR HYBRID SOLAR HYBRID
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SOLAR HYBRID
1 KEYBOARD 544900101
2 CABLE CLAMP 577527201
3 HUB CAP 535101701
4 SCREW ITXPANT 574450101
5 SEALING STRIP
Ø4mm 		574874702
6 DISPLAY COVER 575944204
7 FILTER 535144701
8 CABLE 505457903
9 MAIN SWITCH 535123901
10 DISPLAY 540060303
11 DAMPER
For 2011, 2009 & 2008 models 		535091401
12 SCREW 575543314
13 RING FASTENER 505174301
14 RUBBER GAITERS 577525801
15 ANTIVIBRATION ELEMENT 503226601
16 COLUMN 577598403
17 COLUMN
For 2011, 2009 & 2008 models 		544011301
18 DEFLECTION LIMITER 535143201
19 LOCKWASHER 510747000
20 SENSOR 544141501
21 STEERING WHEEL 535122201
22 SCREW ITXPANT 574450101
23 CHASSIS
For 2009 & 2008 models 		506494001
24 WIRING 544126901
25 PRINTED CIRCUIT ASSY 578789001
26 SCREW 535076002
27 PRINTED CIRCUIT ASSY 578789001
28 BRACKET 535127901
29 SCREW 575543314
30 SEALING STRIP
Ø4mm 		574874701
