Spare parts > Husqvarna > ROBOTIC LAWN MOWERS > AUTOMOWER 305 AUTOMOWER 305, 2020- > CHASSIS UPPER
Back to

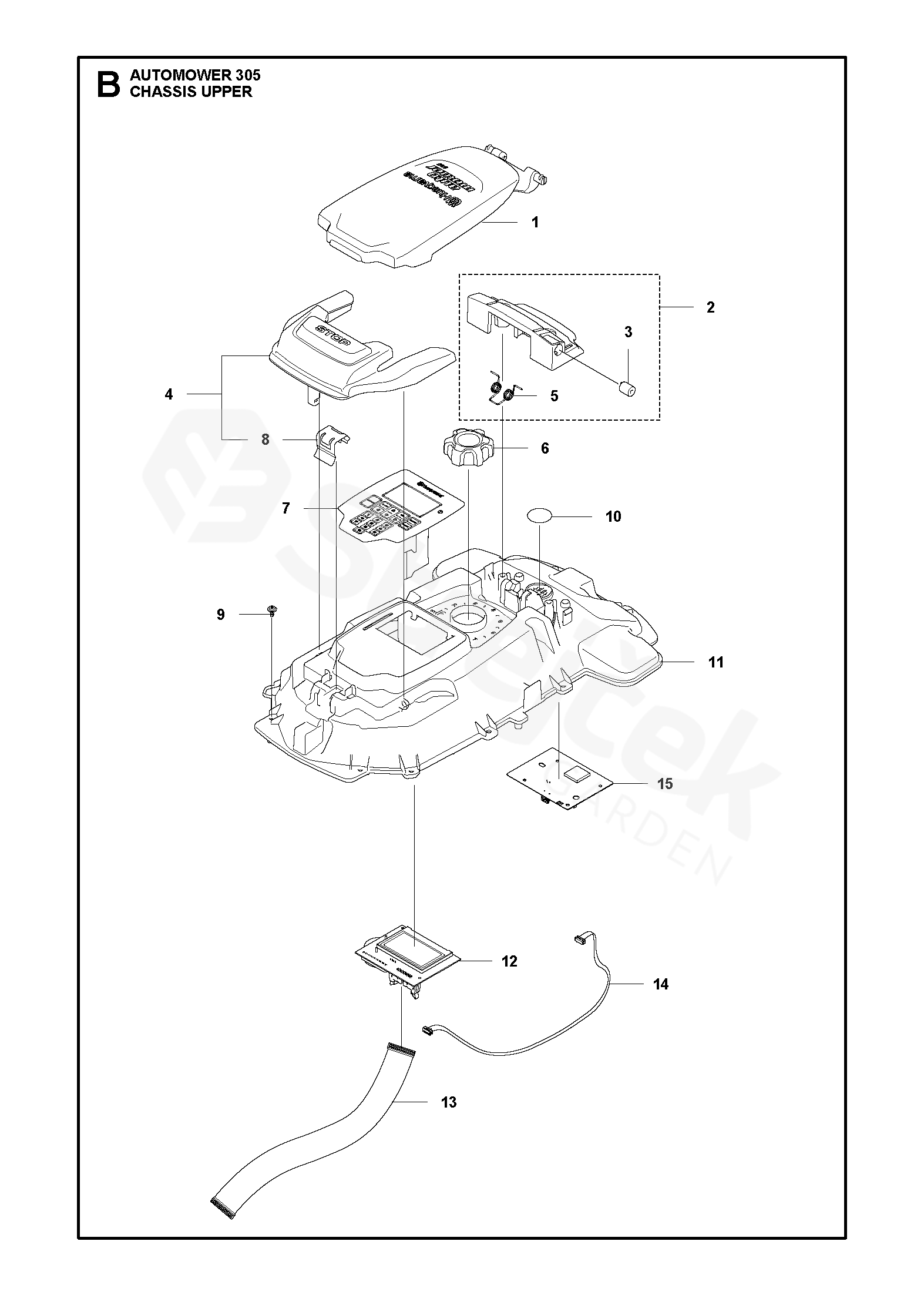

CHASSIS UPPER
AUTOMOWER 305 AUTOMOWER 305, 2020-
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For AUTOMOWER 305, 2020-
1 HATCH
HMI Cover 		597232401
2 SUPPORT
Front Assy 		597758101
3 DAMPER 580352302
4 STOP
Stop Button Assy 		597769701
5 TORSION SPRING 585255401
6 KNOB 585281401
7 KEYBOARD
AM 305 		597274301
8 SPRING
Stop Button 		597349502
9 SCREW ITXPANT 574450101
10 KIT
577753701
11 CHASSIS
Upper 		596529401
12 PRINTED CIRCUIT ASSY 597233801
13 CABLE ASSY Cable Assy
HMI Cable 		590110601
14 WIRING ASSY
L=460mm 		593148901
15 GPS MODULE
AM Connect, Kit AUS/NZ 		586662308
