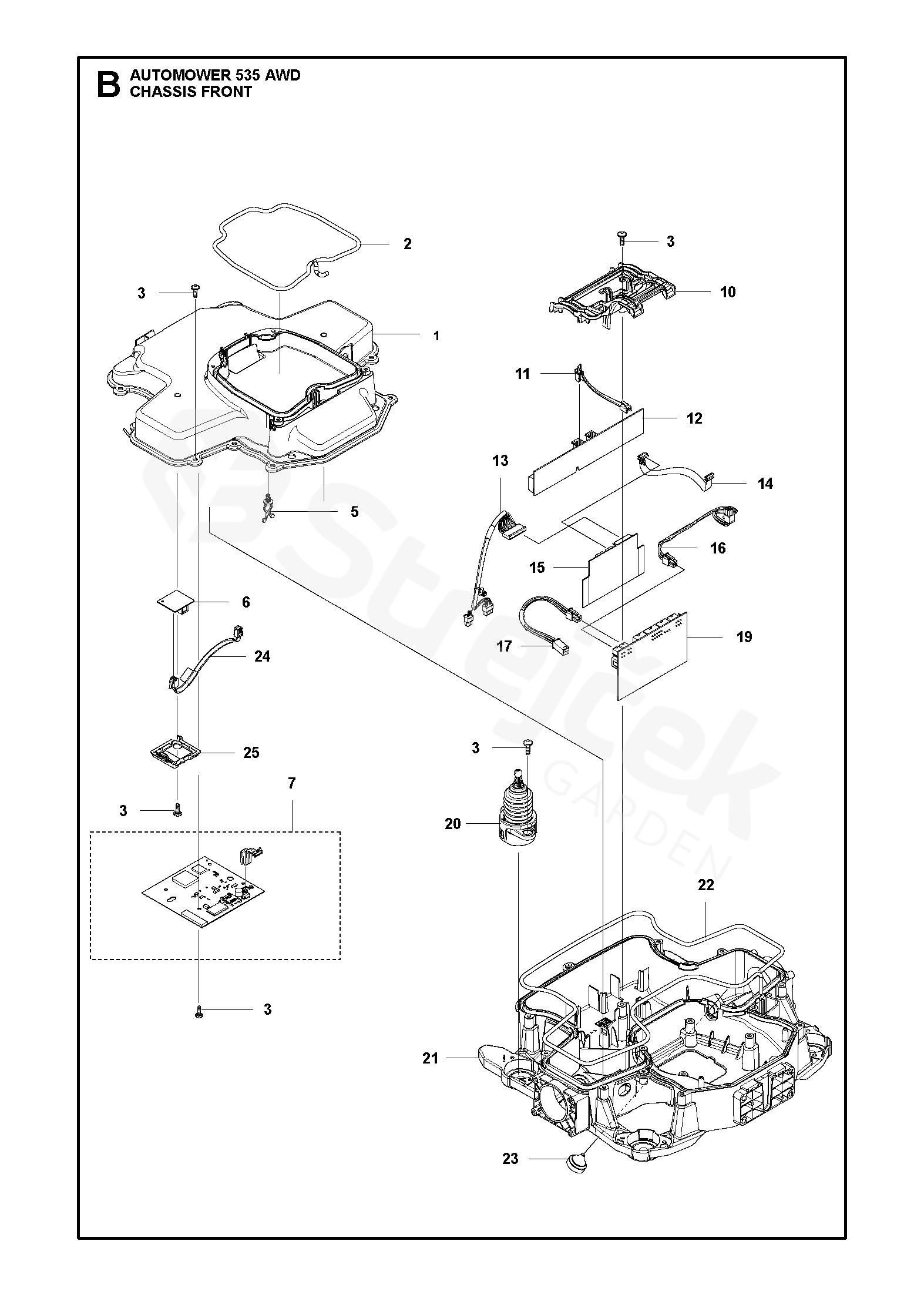

Spare parts > Husqvarna > ROBOTIC LAWN MOWERS > AUTOMOWER 535 AWD AUTOMOWER 535 AWD > CHASSIS
Back to
CHASSIS
AUTOMOWER 535 AWD AUTOMOWER 535 AWD (970651711 - 7333377083875, 967853410 - 7391736592147)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For AUTOMOWER 535 AWD
1 CHASSIS
Upper front 		592743401
2 SEALING STRIP
Chassis Upper Front 		574874714
3 SCREW 575543314
5 HOLDER
Twist lock 		580682901
6 PRINTED CIRCUIT ASSY
Magnetic Sensor 		591125501
7 GPS MODULE
Automower Connect 		586662306
10 HOLDER
PCB front 		592743701
11 WIRING ASSY
Modular Jack 		589350803
12 PRINTED CIRCUIT ASSY
Loop Receiver Board 		591125702
13 WIRING ASSY
Ultra Sonic Extension 		580614402
14 WIRING ASSY
AUX 		579708602
15 PRINTED CIRCUIT ASSY
Ultra Sonic Board 		578285701
16 WIRING ASSY
HMI cable 4P 		591203101
17 WIRING ASSY
Main Cable Adapter 4P 		591203301
19 PRINTED CIRCUIT ASSY
Motor Controler Board 		591125601
20 JOYSTICK
Assy 		592736301
21 CHASSIS
Lower front 		592743601
22 SEALING STRIP
Chassis Lower Front 		574874712
23 GROMMET 584897501
24 WIRING ASSY
Modular Jack 		589350803
25 HOLDER
Magnetic Sensor Board 		591494301
