Spare parts > Husqvarna > TRACTORS/RIDE MOWERS > TS 138 TS 138, 96041042900, 2019-04 > ENGINE
Back to

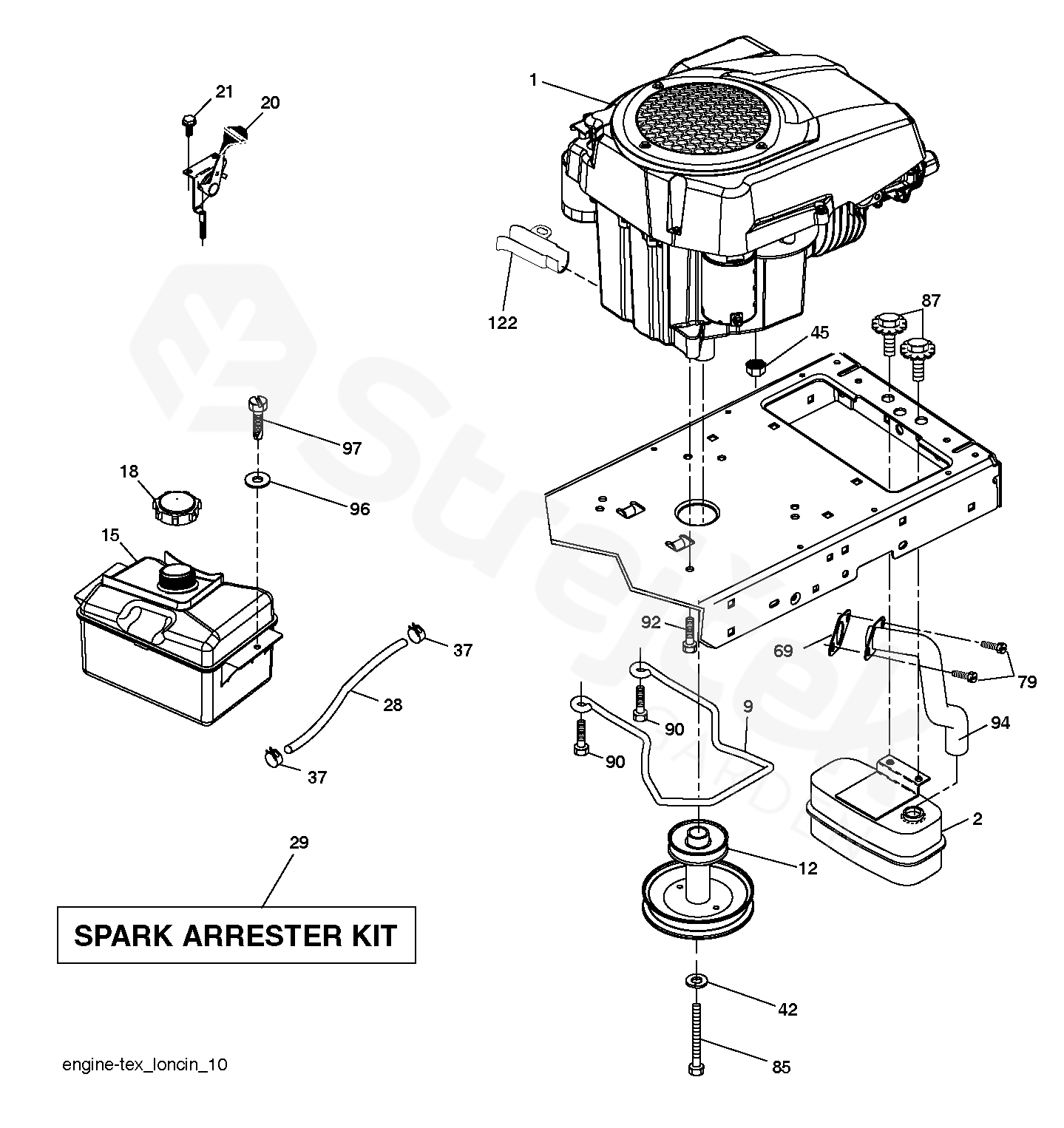

ENGINE
TS 138 TS 138, 96041042900, 2019-04
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TS 138, 96041042900, 2019-04
1 ENGINE
HUSQVARNA MODEL NO. HS452 (COMPLETE IPL AVAILABLE SEPARATELY) 		598694001
2 MUFFLER 590645301
9 KEEPER 501832602
12 PULLEY 586478501
15 TANK 581289901
18 HUB CAP 532430220
20 CONTROL 532183897
21 SCREW 596321701
28 DURITE ESSENCE 20" 532401137
29 SPARK ARRESTER KIT 532137180
37 HADICOVÁ SVĚRKA 532123487
42 WASHER 596238901
45 NUT 593356401
69 GASKET 590863501
79 SCREW 596134202
85 BOLT 501606501
87 BOLT 532171877
90 SCREW 817000616
92 SCREW 817120616
94 TUBE 590864701
96 WASHER 596135301
97 SCREW 817670412
122 EXTENSION PIPE 532421922
